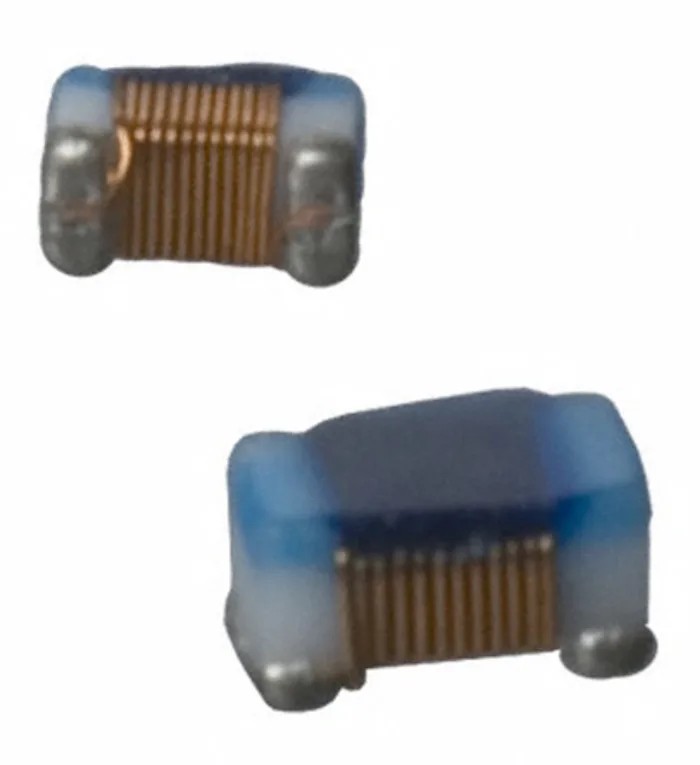

Murata Unshielded Wirewound Surface Mount Inductor 2520 Package Non-Magnetic Core 0.18 μH ±5% 620 mA Idc LQW2UASR18J00L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.83mm |
| Length | 2.62mm |
| Model | LQW2UASR18J00L |
| Depth | 2.45mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Core |
| Inductance | 0.18μH |
| Standards/Approvals | RoHS |
| Package/Case | 2520 |
| Maximum DC Current | 620mA |
| Pin Count | 2 |
| Maximum DC Resistance | 770mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 750MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
Key Features
- This 2520 package inductor supports a maximum DC current of 620 mA.
- It features a low DC resistance of 770 mΩ, enhancing efficiency.
- Inductor dimensions are compact at 2.62 mm length, 2.45 mm depth, and 1.83 mm height.
- Suitable for operating temperatures from -55°C up to 125°C.
- Constructed with wirewound technology for high quality factors and precision.
- Non-magnetic core reduces interference and noise in circuits.
- RoHS compliant and molded for reliable surface mounting with solder termination.
Product Description
Murata LQW2UASR18J00L is a high-performance unshielded wirewound surface mount inductor designed for electronic and RF applications. Featuring a 0.18 μH inductance with ±5% tolerance, this component operates efficiently with a maximum DC current rating of 620 mA, making it suitable for choke circuits and antenna matching applications.
The inductor is molded and supplied in the 2520 surface mount package with solder termination style, ensuring reliable installation on PCBs. Its compact dimensions (2.62 mm length, 2.45 mm depth, 1.83 mm height) allow for space-efficient designs in automotive, communication, and power supply equipment.
Constructed with wirewound technology over a non-magnetic core, the Murata LQW series components offer high quality factor (minimum 45) and low DC resistance (770 mΩ), delivering excellent attenuation characteristics within filter passbands. The maximum self-resonant frequency of 750 MHz allows performance in high-frequency RF circuits.
Operating temperature range from -55°C to 125°C ensures durability in various industrial environments, while RoHS compliance confirms adherence to environmental regulations.
This inductor is ideal for industrial, telecommunications, and automotive electronics requiring precise filtering, matching circuits, and noise reduction. The LQW2UASR18J00L supports large current flow and low resistance for efficient power management in compact surface mount packages.
This 2520 package inductor supports a maximum DC current of 620 mA. It features a low DC resistance of 770 mΩ, enhancing efficiency. Inductor dimensions are compact at 2.62 mm length, 2.45 mm depth, and 1.83 mm height. Suitable for operating temperatures from -55°C up to 125°C.
Constructed with wirewound technology for high quality factors and precision. Non-magnetic core reduces interference and noise in circuits. RoHS compliant and molded for reliable surface mounting with solder termination.
Explore the complete range of Surface Mount Inductors for effective electronic component solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 0.18 μH with a tolerance of ±5%.
This inductor supports a maximum DC current of 620 mA.
The dimensions of this model are 2.62 mm in length, 2.45 mm in depth, and 1.83 mm in height.
It operates within a temperature range of -55°C to 125°C.
The inductor features a non-magnetic core, which helps reduce interference and noise in circuits.
The maximum self-resonant frequency is 750 MHz, making it suitable for high-frequency RF applications.
It has a low DC resistance of 770 mΩ, enhancing its efficiency in circuits.
This model features a solder termination style for reliable surface mounting.
The minimum quality factor is 45, indicating good performance in filtering applications.
Yes, it is RoHS compliant, adhering to environmental regulations.
It is packaged in paper tape, suitable for automated assembly processes.
This inductor is suitable for applications in industrial, telecommunications, and automotive electronics requiring precise filtering and noise reduction.
