| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.9mm |
| Length | 2mm |
| Model | LQM21PN2R2MGSD |
| Depth | 1.25mm |
| Packaging | Embossed Tape |
| Series | LQM |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 950mA |
| Pin Count | 2 |
| Maximum DC Resistance | 180mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Multilayer |

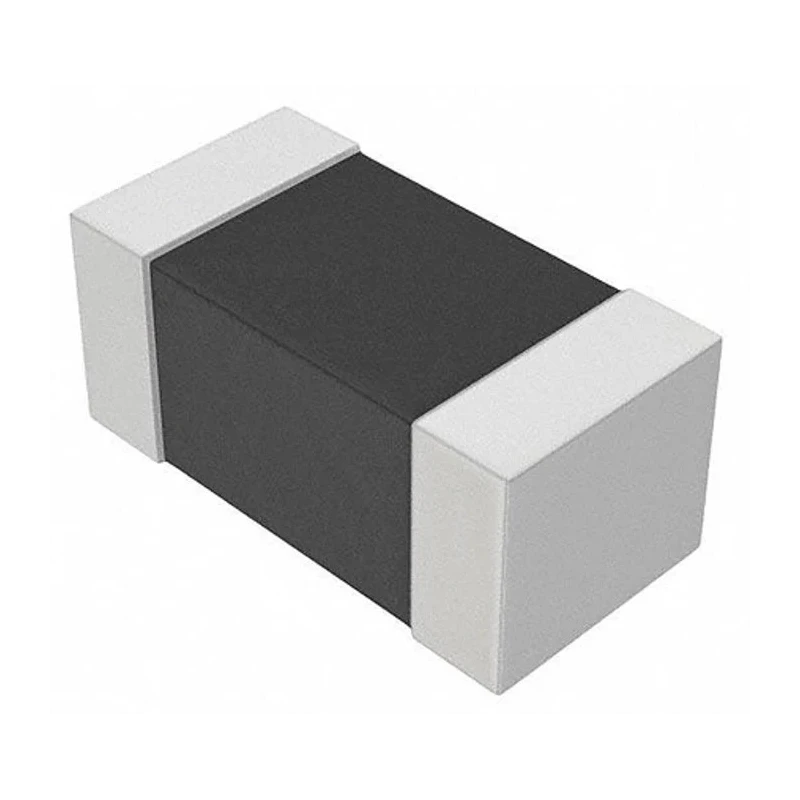

Murata LQM21PN2R2MGSD is a high-performance shielded multilayer surface mount inductor manufactured in Japan. This 0805 package SMD inductor features a multilayer ferrite core construction that provides excellent shielding against electromagnetic interference and allows a maximum DC current capacity of 950mA.
With an inductance value of 2.2μH and tolerance of ±20%, it ensures reliable operation in precision resonance circuits and voltage conversion applications. The low DC resistance of 180mΩ, combined with a compact size of 2mm length, 1.25mm depth, and 0.9mm height, makes it suitable for compact electronic devices.
The inductor is RoHS compliant and designed for operating temperatures ranging from -40°C to 85°C. It comes in embossed tape packaging, supporting automated assembly lines for mass production.
This component is ideal for industrial, consumer electronics, and telecommunications applications including digital cameras, TVs, mobile phones, game consoles, and hard disk drives. The solder termination style ensures secure and durable mounting on PCBs.
Compact 0805 package with high shielding effectiveness. Low DC resistance and stable inductance performance. Wide operating temperature suitable for various environmental conditions. High maximum DC current supports demanding electrical loads.
Compliance with environmental RoHS standards for sustainable manufacturing. Multilayer ferrite core construction enhances inductive efficiency. Suitable for voltage conversion, resonance, and low frequency applications. Packaging designed for efficient assembly processing.
