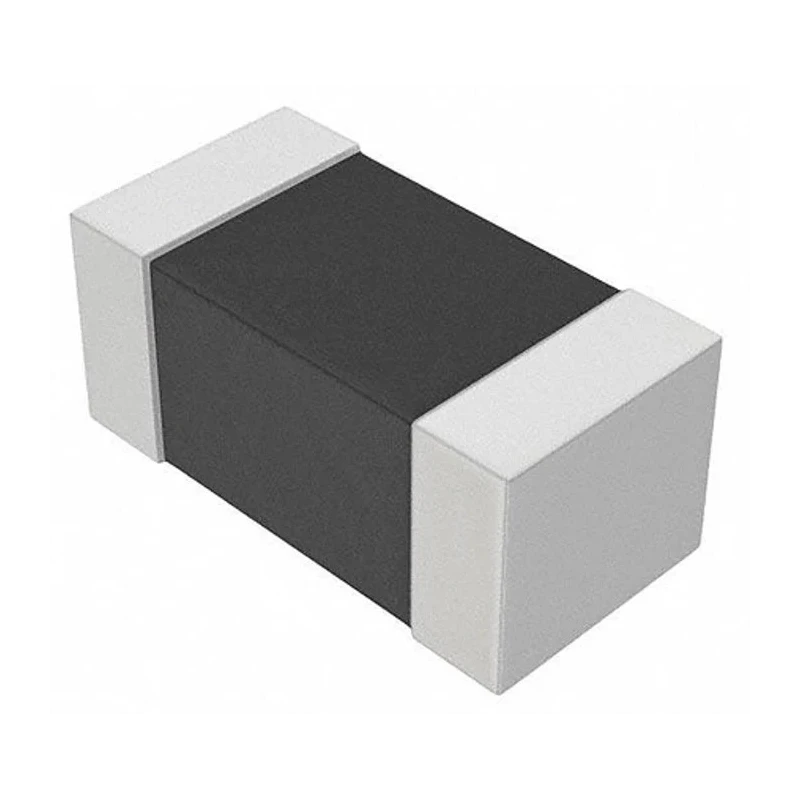

Murata 2.2μH Shielded Multilayer Surface Mount Inductor with Ferrite Core 0805 Package LQM21PN2R2MGSD

Murata LQM21PN2R2MGSD is a shielded multilayer surface mount inductor with a ferrite core offering 2.2μH inductance and a maximum DC current rating of 950mA. The 0805 package features precise dimensions of 2 mm length, 0.9 mm height, and 1.25 mm depth, making it compact and suitable for dense circuit designs.

This multilayer ferrite core construction provides excellent magnetic shielding and low DC resistance of 180mΩ, ensuring high efficiency and reduced electromagnetic interference. Its inductance tolerance of ±20% allows stable inductance characteristics under varying operating conditions.

Compliance with RoHS standards and a solder termination style facilitate easy surface mounting on printed circuit boards. The inductor is designed to operate reliably within a temperature range of -40°C to 85°C and features a maximum self-resonant frequency of 40MHz, suitable for high frequency applications.

Murata LQM21PN2R2MGSD inductors are ideal for various industrial and commercial electronics including digital cameras, mobile phones, televisions, gaming machines, and hard disk drives, supporting voltage conversion and resonance circuits as well as low frequency signal processing.

Features a magnetically shielded multilayer ferrite core construction. Compact 0805 package size of 2 mm length, 0.9 mm height, and 1.25 mm depth. Offers low DC resistance of 180mΩ and inductance tolerance of ±20%. Designed for a wide operating temperature range from -40°C to 85°C.

RoHS compliant with solder termination style for surface mounting. Suitable for multiple electronic applications such as smartphones and digital devices. Maximum self-resonant frequency of 40 MHz providing high frequency stability.
