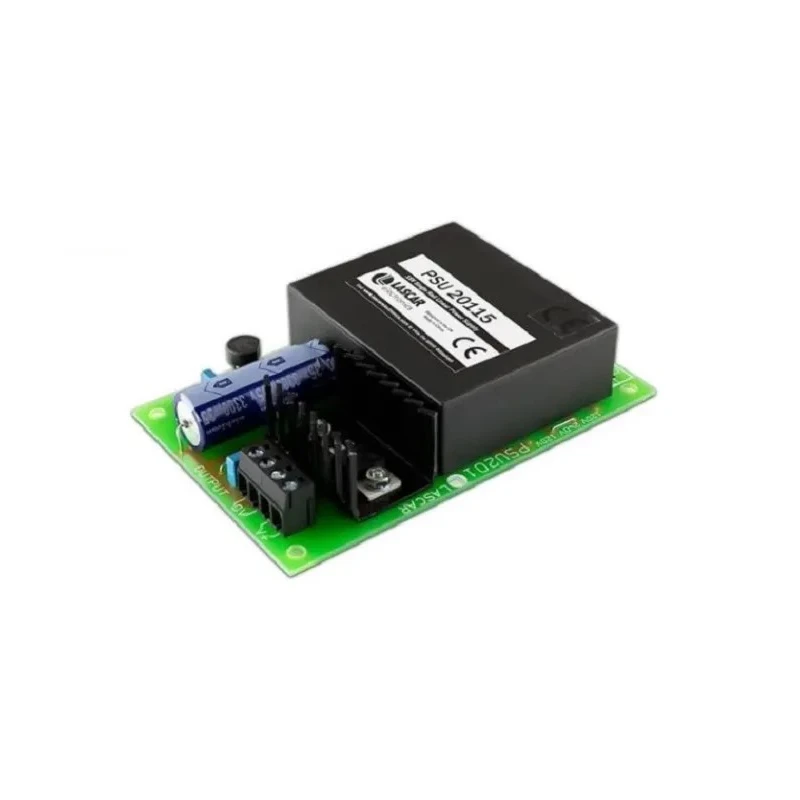

Lascar Open Frame Linear Power Supply 250V AC, 300 mA Output Current, 15.6V DC Voltage PSU-20115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Lascar |
| Length | 115mm |
| Model | PSU-20115 |
| Depth | 23.6mm |
| Width | 76mm |
| Mount Type | Open Frame |
| Series | PSU 201 |
| Output Current | 300mA |
| Maximum Operating Temperature | 70°C |
| Load Regulation | ±1 % |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 1 |
| Ripple and Noise | 5mV |
| Maximum Input Voltage | 250V ac |
| Line Regulation | ±1 % |
| Standards/Approvals | BSEN61558-1:1998 |
| Maximum Output Voltage | 15.6V dc |
| BSEN61558-1 | 1998 |
Key Features
- Operates at an input voltage of 250V AC for stable power conversion.
- Features an open frame mount type suitable for easy installation.
- Includes over current and over temperature protection for safety.
- Maintains load and line regulation within ±1% for reliable output.
- Compact dimensions measuring 115 mm length, 76 mm width, and 23.6 mm depth.
- Wide operating temperature range from 0°C to 70°C supports diverse environments.
- Low ripple and noise output at 5 mV ensures clean power delivery.
- Encapsulated mains transformer contributes to a low profile and robust design.
Product Description
Lascar PSU-20115 is a high-quality open frame linear power supply delivering a maximum output of 15.6V DC at 300 mA. Operating on a 250V AC input, it incorporates an encapsulated mains transformer and features a compact, low-profile design.
The unit is constructed with a simple screw terminal connection for ease of integration into various industrial and electronic systems. It provides stable load and line regulation of ±1%, ensuring consistent output voltage even with varying input or load conditions. The built-in over current and over temperature protection safeguards the connected devices and the power supply itself from damage.
Its operating temperature range from 0°C to 70°C allows the PSU to function reliably in diverse environmental conditions typically found in industrial manufacturing, laboratory electronics, and commercial applications. The low ripple and noise figure of 5 mV minimizes interference, making it suitable for sensitive equipment.
Designed in compliance with BSEN61558-1:1998 standards, this power supply guarantees safety and performance. Operates with a maximum input voltage of 250V AC for effective power supply conversion. Provides a stable DC output voltage of 15.6V at 300 mA current.
Compact size with dimensions 115 mm (L) x 76 mm (W) x 23.6 mm (D) for space-efficient applications. Wide ambient temperature tolerance from 0°C to 70°C. Over current and over temperature protection for enhanced safety. Low ripple and noise output ensures clean power delivery.
Simple screw terminal connections for ease of wiring. Encapsulated transformer provides durability and compactness. Meets BSEN61558-1:1998 safety and quality standards.
This Lascar linear Power Supply is ideal for industrial machines, laboratory equipment, electronic manufacturing, and embedded applications requiring reliable DC power. Browse EnvMart's extensive selection of power supplies for compatible accessories and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this power supply is 15.6V DC.
This model operates at a maximum input voltage of 250V AC.
The output current rating is 300 mA.
The dimensions are 115 mm in length, 76 mm in width, and 23.6 mm in depth.
It has a wide operating temperature range from 0°C to 70°C.
It maintains load and line regulation within ±1%, ensuring consistent output voltage even with varying input or load conditions.
This unit features an open frame mount type suitable for easy installation.
It includes over current and over temperature protection to safeguard connected devices and the power supply itself.
The power supply has a low ripple and noise output of 5 mV, ensuring clean power delivery.
It is designed in compliance with BSEN61558-1:1998 standards, ensuring safety and performance.
It uses simple screw terminal connections for ease of integration into various systems.
This power supply is suitable for industrial machines, laboratory equipment, electronic manufacturing, and embedded applications requiring reliable DC power.
