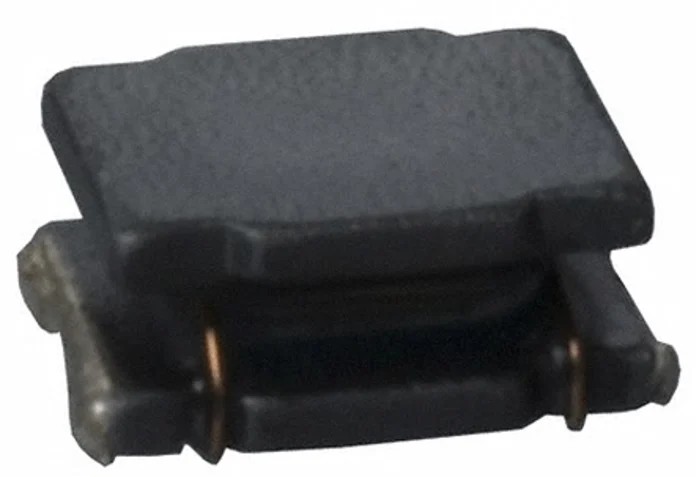

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 15 μH ±20% 1.6 A IDC LQH5BPN150MT0L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPN150MT0L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 1.6A |
| Maximum DC Resistance | 187mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 18MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact 5050 package size measuring 5 mm length, 5 mm depth, and 2 mm height.
- Wirewound construction provides stable inductance and high reliability.
- Ferrite core improves magnetic performance and shielding reduces interference.
- Wide operating temperature range from -40°C to 125°C.
- Maximum DC resistance of 187 milliohms ensures efficient current flow.
- Maximum self-resonant frequency is 18 MHz suitable for high-frequency applications.
- Surface mount termination style enables automated PCB assembly.
- RoHS compliant, molded for durability and strength.
Product Description
Murata's LQH5BPN150MT0L is a shielded wirewound surface mount inductor, designed for high performance in electronic power circuits. It features a ferrite core and wirewound construction, providing stable inductance of 15 μH with a tolerance of ±20%. The 5050 package footprint measures 5 mm in length and depth with a 2 mm height, permitting compact circuit designs.
This inductor supports a maximum DC current of 1.6 A and maintains a low DC resistance of 187 milliohms to ensure power efficiency. The maximum operating temperature is 125°C, with a minimum of -40°C, making it reliable across varied environments.
The device also exhibits a maximum self-resonant frequency of 18 MHz, making it suitable for high-frequency applications. The ferrite core enhances magnetic characteristics, while the shielding suppresses electromagnetic interference, improving circuit reliability.
Manufactured in compliance with RoHS, the inductor is molded for mechanical durability. Termination is surface mount style, enabling integration into automated PCB production lines.
This component is ideally suited for use in power supply booster circuits in digital cameras, mobile phones, televisions, and gaming machines. Its robust performance and compact footprint make it an excellent choice for advanced electronic device designs.
Compact 5050 package size measuring 5 mm length, 5 mm depth, and 2 mm height. Wirewound construction provides stable inductance and high reliability. Ferrite core improves magnetic performance and shielding reduces interference.
Wide operating temperature range from -40°C to 125°C. Maximum DC resistance of 187 milliohms ensures efficient current flow. Maximum self-resonant frequency is 18 MHz suitable for high-frequency applications. Surface mount termination style enables automated PCB assembly.
RoHS compliant, molded for durability and strength. Applications include digital cameras, mobile phones, TVs, and game machines. Explore more Inductors and electronic components with Murata quality at EnvMart for your industrial, electronic, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 15 μH with a tolerance of ±20%.
This model can handle a maximum DC current of 1.6 A.
The 5050 package measures 5 mm in length, 5 mm in depth, and 2 mm in height.
The maximum operating temperature for this inductor is 125°C.
This inductor uses a ferrite core material, which enhances its magnetic performance.
The maximum self-resonant frequency of this unit is 18 MHz, making it suitable for high-frequency applications.
The maximum DC resistance of this inductor is 187 milliohms, ensuring efficient current flow.
The termination style of this inductor is surface mount, which enables automated PCB assembly.
Yes, this inductor is RoHS compliant, ensuring it meets environmental standards.
This inductor features wirewound construction, which provides stable inductance and high reliability.
This inductor is suitable for applications in power supply booster circuits for digital cameras, mobile phones, televisions, and gaming machines.
The country of origin for this inductor is India.
