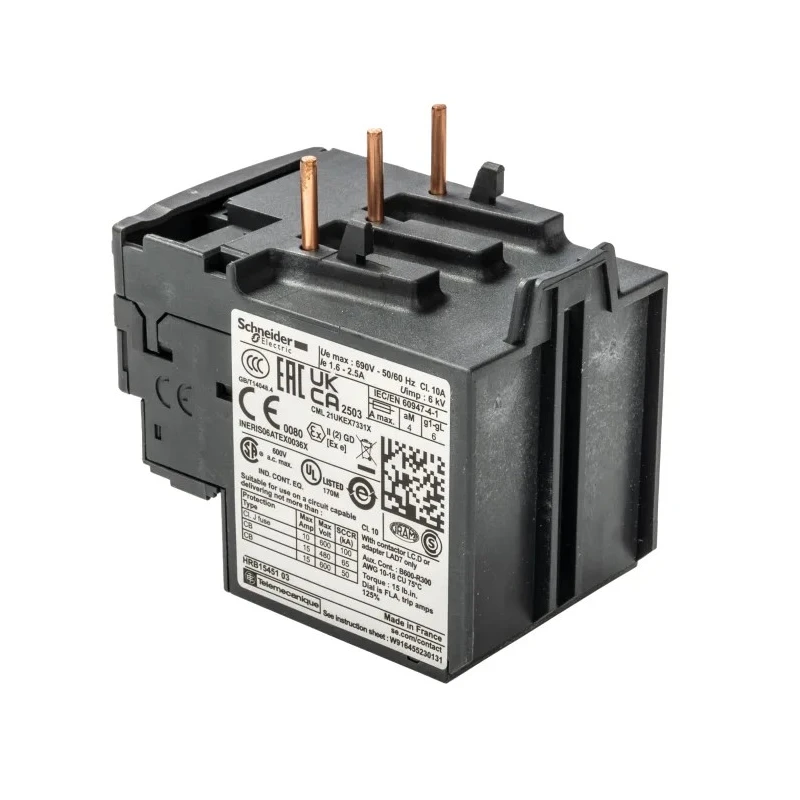

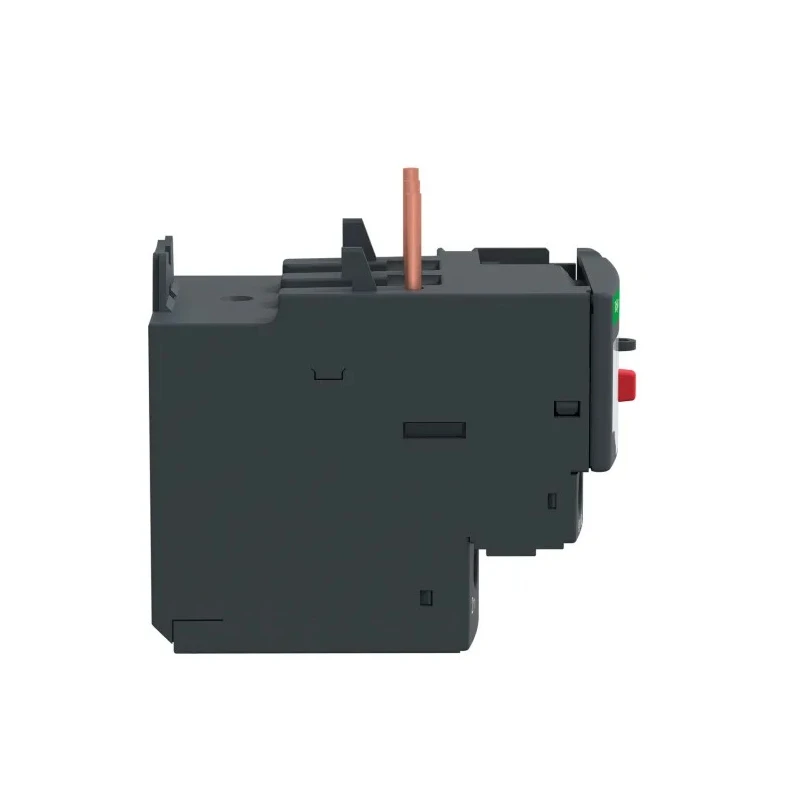

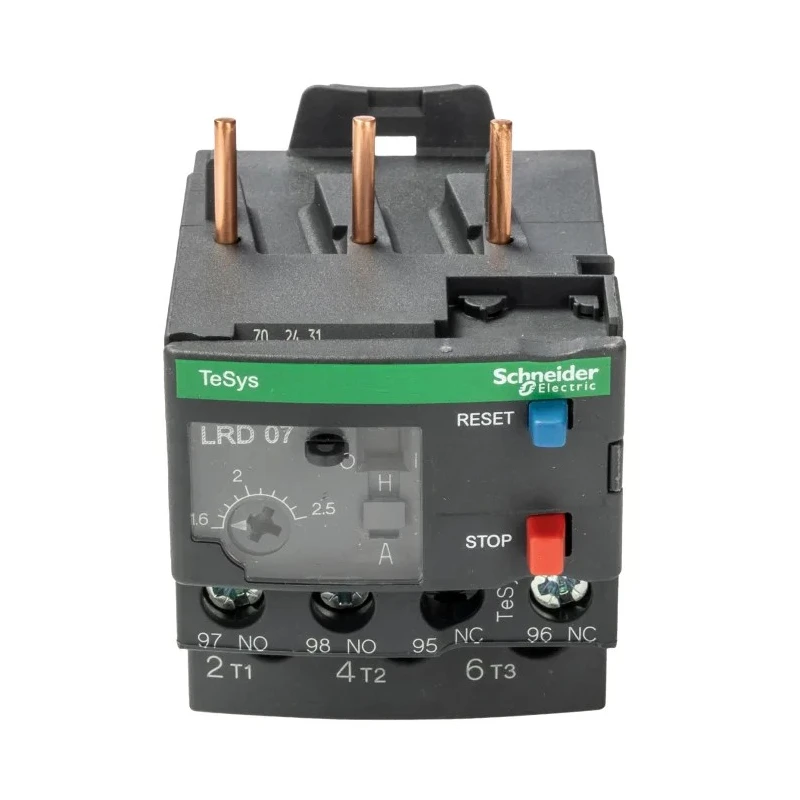

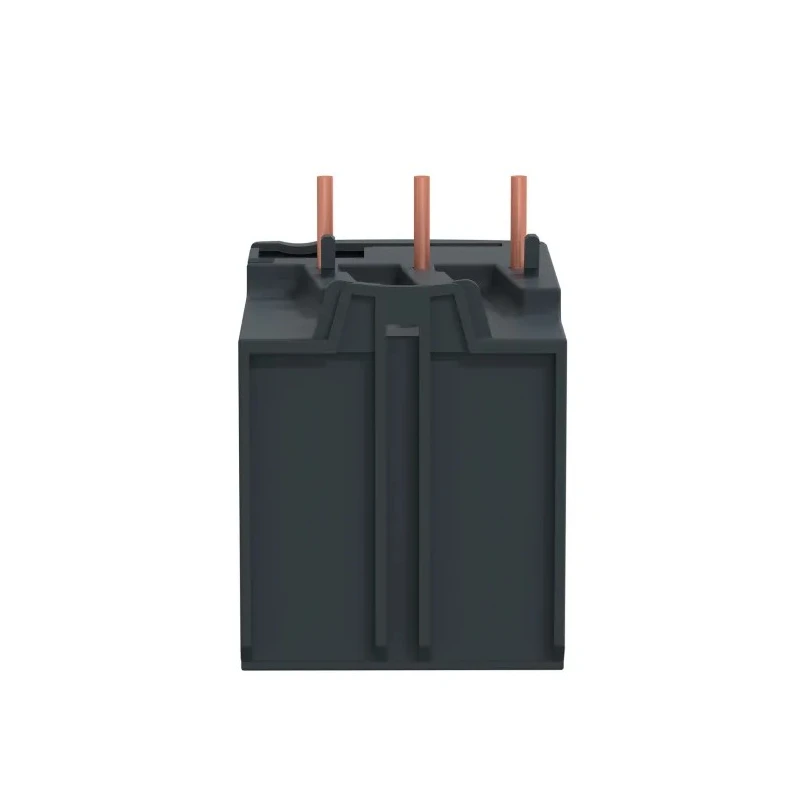

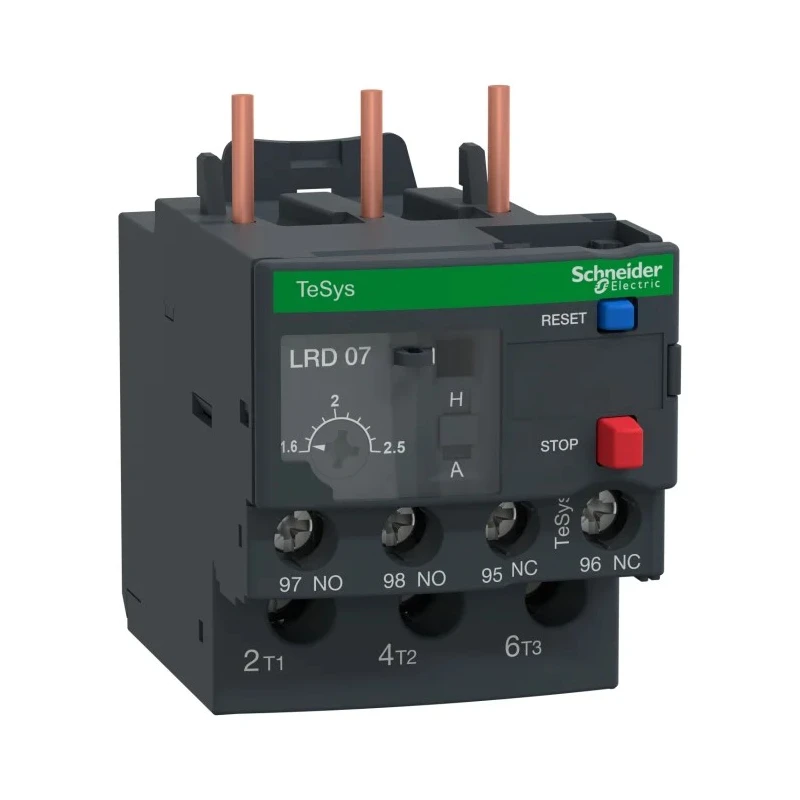

Schneider Electric Overload Relay 1 NO/1 NC, 1.6-2.5 A FLC Motor Rating, 750 W Power Rating, 690V AC Contact Voltage LRD07
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD07 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 750W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V ac |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 2.5A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 1.6, 2.5A |
| Adjustable Current Range | 1.6 → 2.5 A |
| Telemecanique Overload Relay NO/NC, 1.6 → 2.5 A F.L.C, 2.5 A Contact RatingBrand | Telemecanique |
Key Features
- Provides motor protection through adjustable thermal overload relay settings.
- Features 1 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration.
- Supports screw terminal connections and direct mount type for easy installation.
- Operates within a temperature range of -20°C to +60°C with an IP20 protection rating.
- Rated for motor full load current (FLC) between 1.6 and 2.5 Amps.
- Designed for use with 3-pole configurations and 690V AC contact voltage.
- Includes manual and automatic reset methods for flexibility in operation.
- Compliant with multiple international standards including EN/IEC 60947 series and UL approvals.
Product Description
Schneider Electric LRD07 Overload Relay is a robust motor protection device engineered to reliably protect motors against thermal overload within an adjustable current range of 1.6 to 2.5 Amps, supporting motor ratings up to 750 Watts. Featuring a standard 1 normally open and 1 normally closed auxiliary contact arrangement, this relay provides versatile control options in various electrical setups.
This device adopts a direct mounting style with screw terminal connections to simplify installation. It operates efficiently in harsh environments with an operating temperature range from -20°C to 60°C and carries an IP20 protection rating ensuring resistance to foreign material ingress.
The 3-pole relay supports a contact voltage of 690V AC and conforms to stringent international certifications including EN/IEC 60947, UL standards, and others for global compatibility and safety compliance. It is designed to trip at 1.14 times the rated current and includes phase failure detection by tripping at 130% current on two phases.
Additional features include both automatic and manual reset options for operational flexibility, making it suitable for industrial motor protection in electrical automation systems. Applications span industrial, manufacturing, and commercial environments requiring reliable overload protection and control.
Provides motor protection through adjustable thermal overload relay settings. Features 1 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration. Supports screw terminal connections and direct mount type for easy installation.
Operates within a temperature range of -20°C to +60°C with an IP20 protection rating. Rated for motor full load current (FLC) between 1.6 and 2.5 Amps. Designed for use with 3-pole configurations and 690V AC contact voltage.
Includes manual and automatic reset methods for flexibility in operation. Compliant with multiple international standards including EN/IEC 60947 series and UL approvals. Discover more Schneider Electric Overload Relays and related automation control gear at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overload relay has an adjustable current range of 1.6 to 2.5 Amps.
This model has a power rating of 750 Watts.
It is rated for a contact voltage of 690V AC.
It features 1 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration.
The unit operates within a temperature range of -20°C to +60°C.
It adopts a direct mounting style with screw terminal connections for easy installation.
The dimensions are 66mm in length, 70mm in depth, and 45mm in width.
The LRD07 has an IP20 protection rating.
It includes both automatic and manual reset methods for operational flexibility.
It complies with multiple international standards including EN/IEC 60947 series and UL approvals.
The maximum relay contact current is rated at 2.5 Amps.
It is suitable for industrial, manufacturing, and commercial environments requiring reliable overload protection and control.
