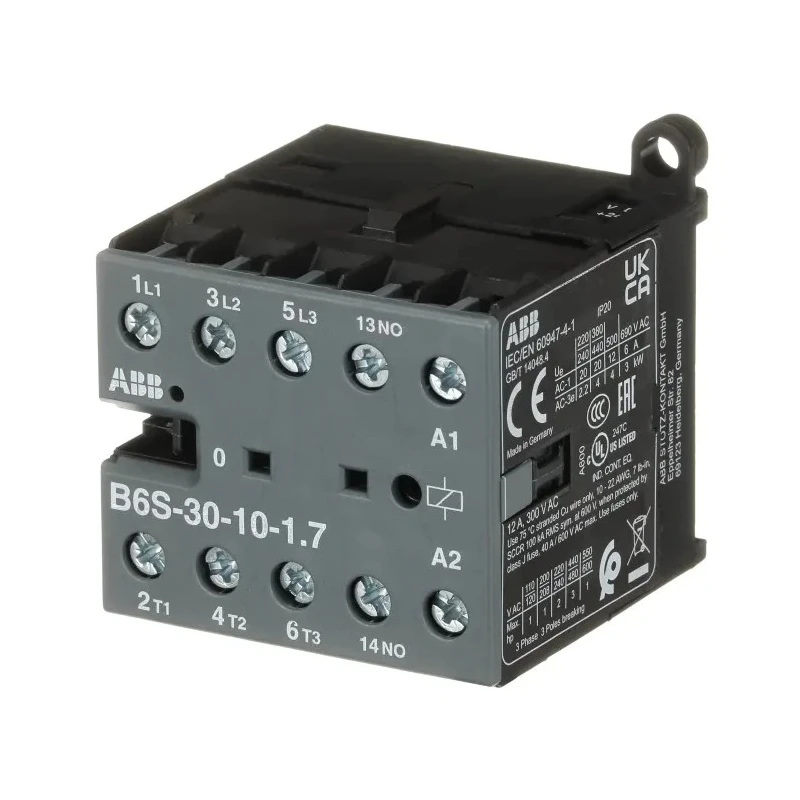

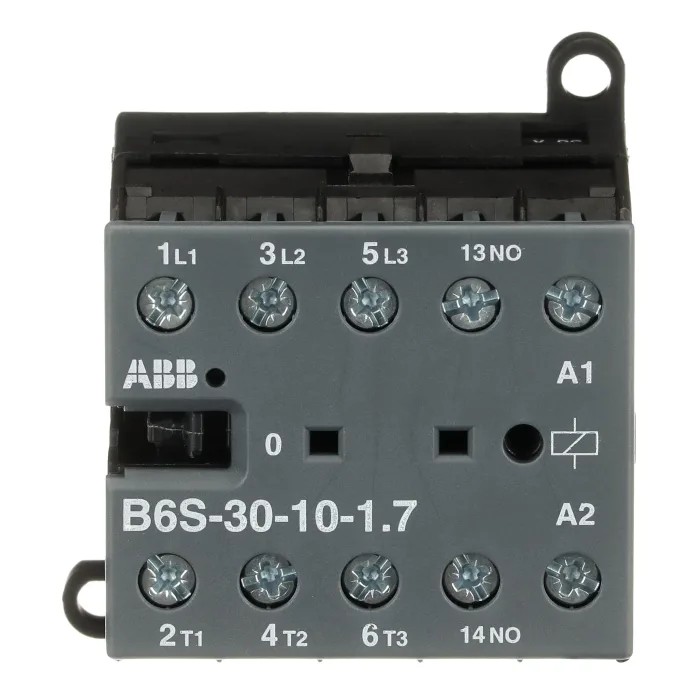

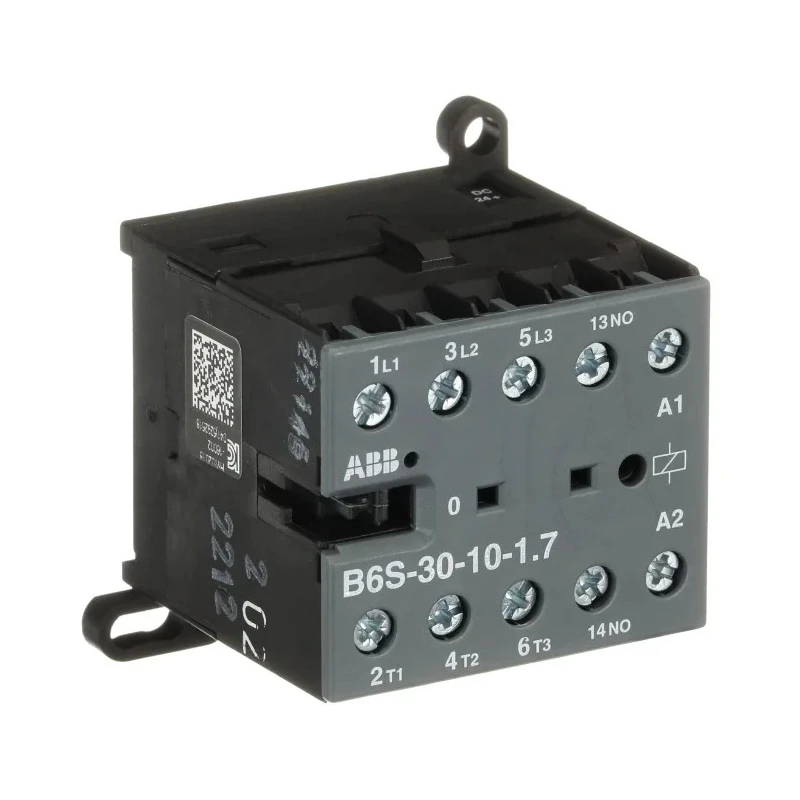

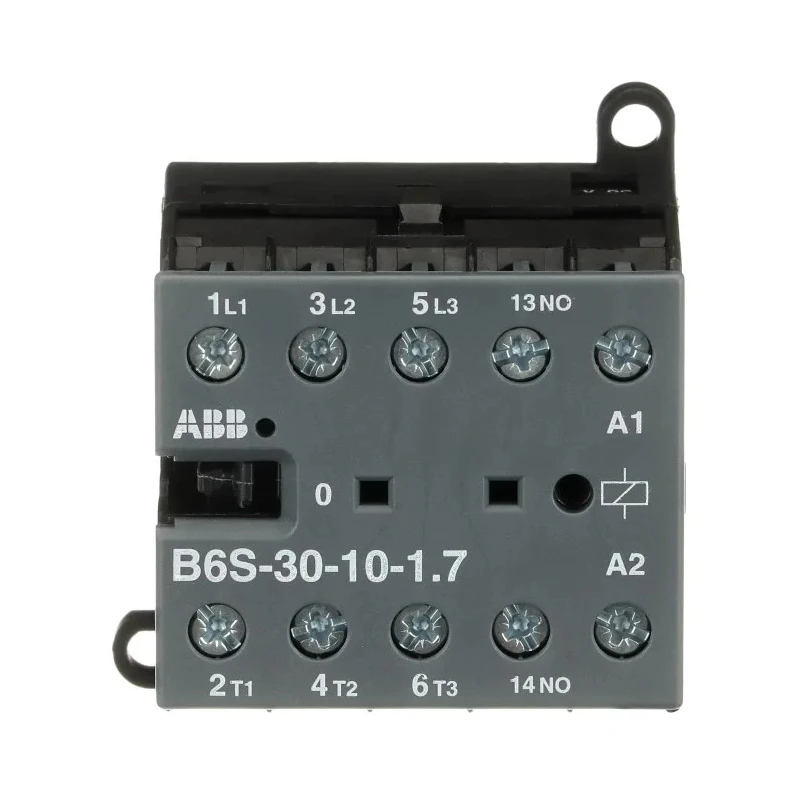

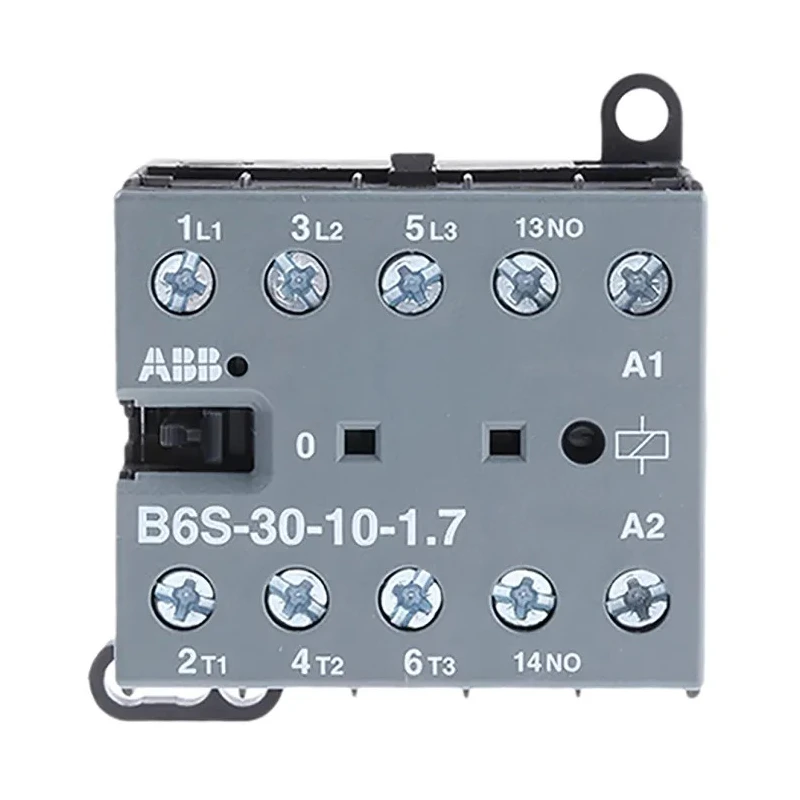

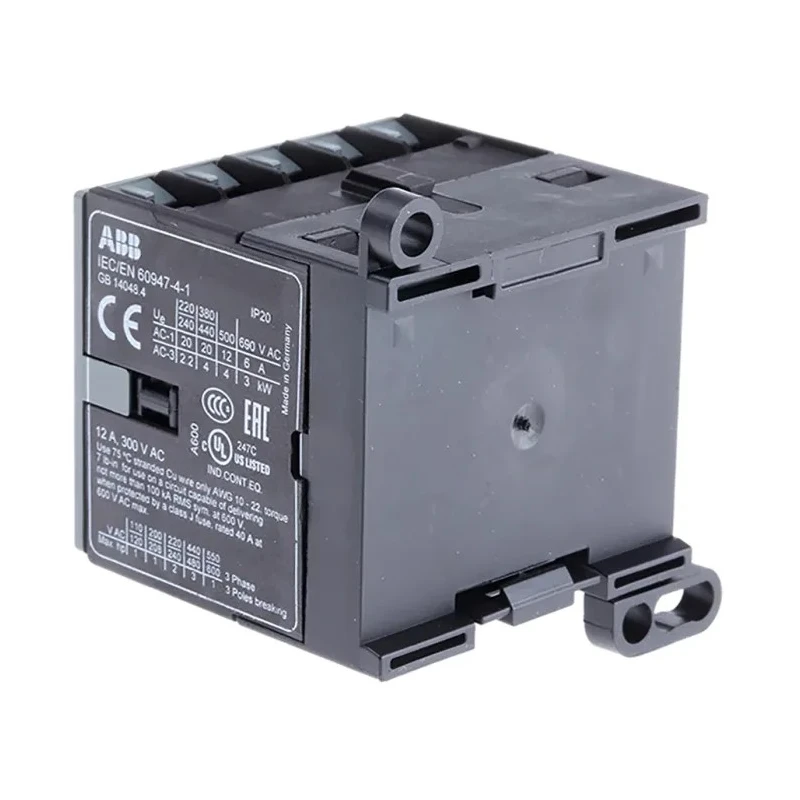

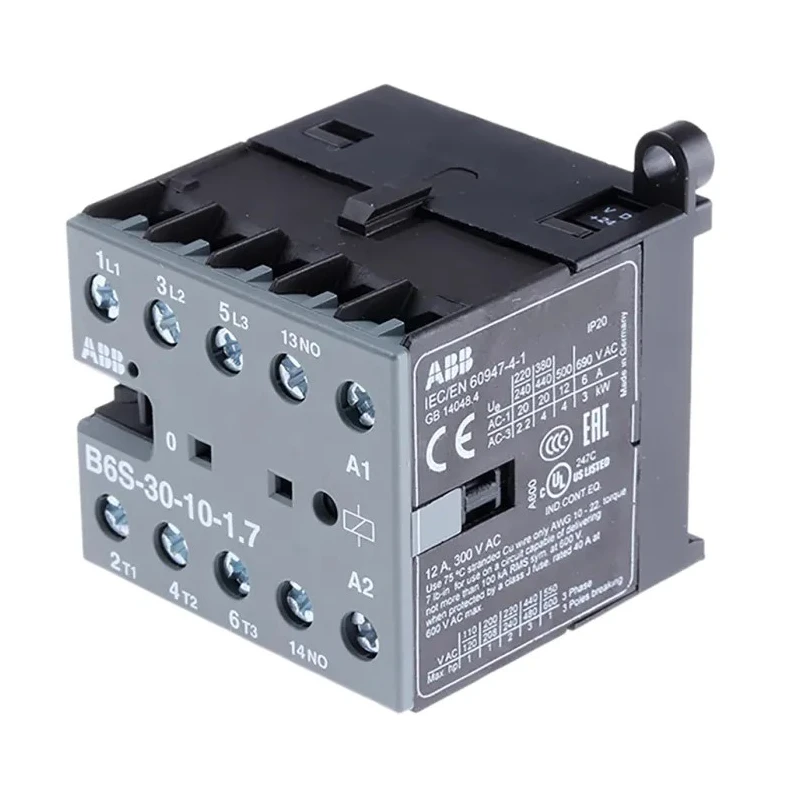

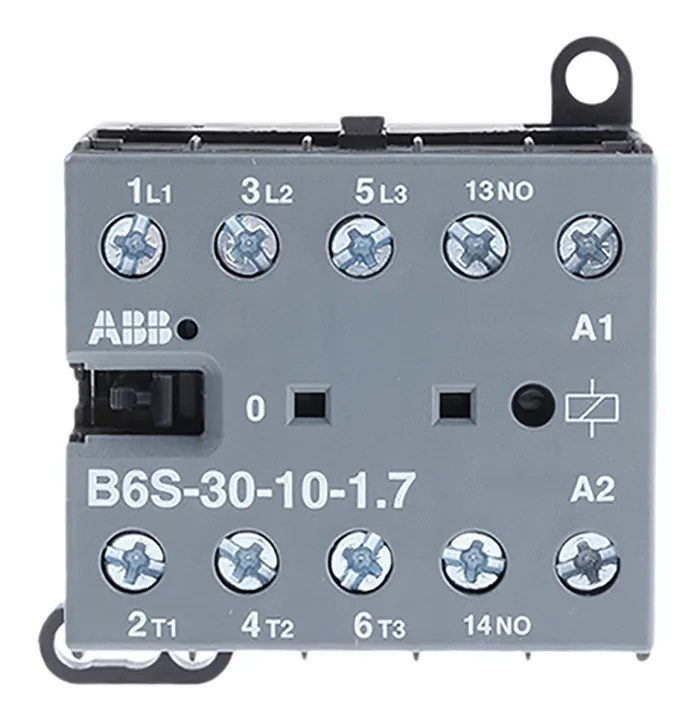

ABB B6 Contactor Relay, 24V DC Coil, 3-Pole, 9A Contact Current, 4kW Power Rating GJL1213001R7101 - B6S-30-10-1.7-71



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Function	Motor Control, Resistive Load, Self Locking
Length	57.5mm
Model	GJL1213001R7101 - B6S-30-10-1.7-71
Depth	46.5mm
Width	52.5mm
Mount Type	DIN Rail
Series	B6
Power Rating	4kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Contact Voltage	690V ac
Coil Voltage	24V dc
Normal State Configuration	3 NO
Contact Current	9A
Number of Auxiliary Contacts	1
Operational Current Ie	20A
Control Circuit Voltage Uc	24V dc
Contactor Application	Motor Control, Resistive Load

Key Features

This contactor relay is designed for reliable control of motors and resistive heating elements in industrial applications.
It features a 24V DC coil facilitating integration with automation and PLC control systems.
The 3-pole configuration supports simultaneous switching with a voltage rating of up to 690V AC.
Its 9 A contact current and 4 kW power rating accommodate moderate load requirements efficiently.
Mounting on DIN rail ensures easy installation within compact control panels.
Included auxiliary contact provides status feedback or interlocking capability.
Screw terminals provide secure connections even in environments with vibration.
Operational temperature range from -25°C to 55°C guarantees reliable functioning in diverse climates.

Product Description

ABB GJL1213001R7101 - B6S-30-10-1.7-71 Contactor Relay features a 24V DC coil voltage and a three-pole design, ideal for motor control and resistive load switching in industrial, manufacturing, and automation environments. This electromechanical switching device is compact and designed for DIN rail mounting within control panels, offering modular installation and straightforward integration.

The device supports an operational current of up to 20A with individual contact ratings of 9A at 690V AC, making it suitable for motors up to 4 kW. The inclusion of one auxiliary contact allows for interlocking or status signalling, enhancing control capabilities. Screw type terminals ensure secure and vibration-resistant conductor connections.

Designed to operate reliably between -25°C and 55°C, this contactor meets high safety and performance standards, including UL 60947-4-1 and IEC/EN 60947 series. Its compact physical dimensions - approximately 52.5 mm width, 46.5 mm depth, and 57.5 mm length - facilitate efficient space utilization in electrical panels.

This relay is suitable for industrial automation systems, HVAC controls, water treatment plants, and other applications requiring robust motor and resistive load management with DC coil actuation.

This Contactor Relay is designed for reliable control of motors and resistive heating elements in industrial applications. It features a 24V DC coil facilitating integration with automation and PLC control systems. The 3-pole configuration supports simultaneous switching with a voltage rating of up to 690V AC.

Its 9 A contact current and 4 kW power rating accommodate moderate load requirements efficiently. Mounting on DIN rail ensures easy installation within compact control panels. Included auxiliary contact provides status feedback or interlocking capability.

Screw terminals provide secure connections even in environments with vibration. Operational temperature range from -25°C to 55°C guarantees reliable functioning in diverse climates. Compliant with IEC/EN and UL standards assuring electrical safety and performance.
