Eaton DILER Contactor Relay 110V AC Coil 4-Pole 3A Contact Current 2 NO/2 NC 400V AC 051774 DILER-22(110V50HZ,120V60HZ)

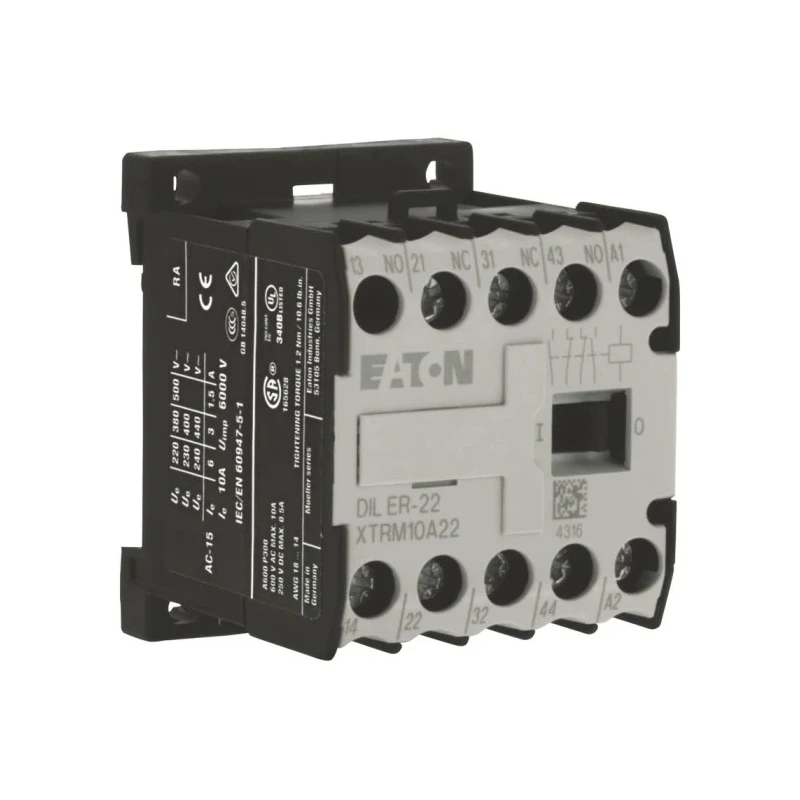

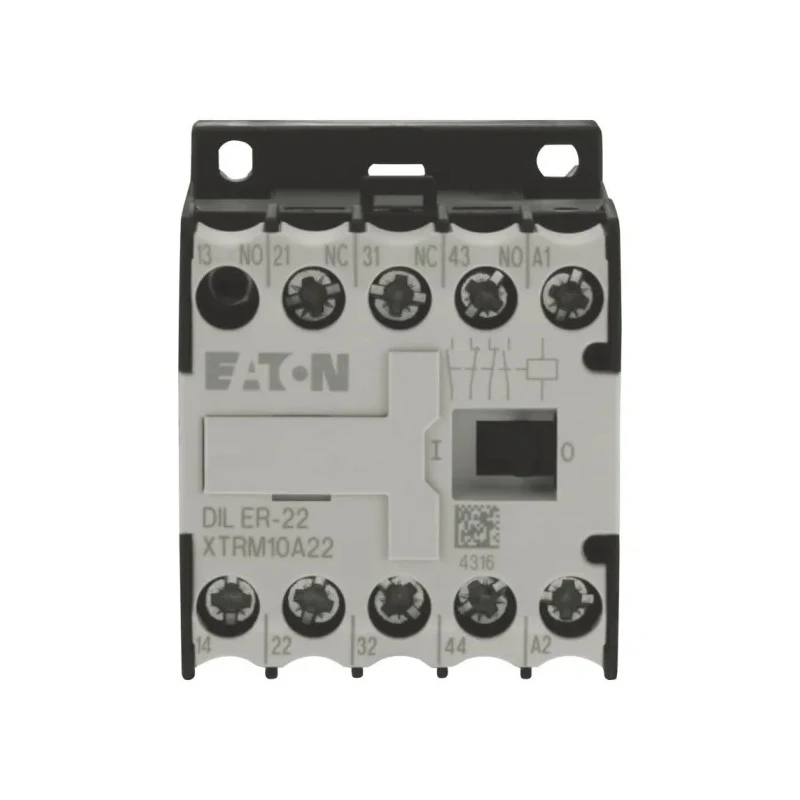

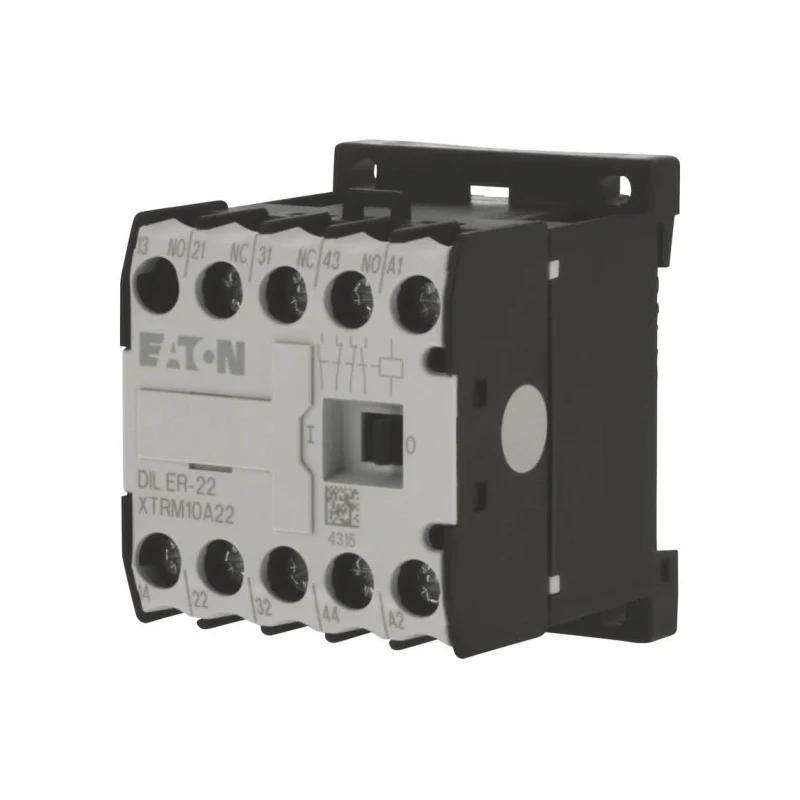

Eaton 051774 DILER-22(110V50HZ,120V60HZ) Contactor Relay is an industrial-grade device engineered to deliver reliable electrical circuit control in automation and power switching applications. Featuring a 110V AC coil voltage with a sturdy 4-pole configuration, it allows simultaneous management of multiple circuits, enhancing system efficiency.

This contactor relay includes 2 normally open (NO) and 2 normally closed (NC) contacts, providing flexible operational configurations suited for motor switching tasks and power circuit control. Its screw terminal design ensures straightforward installation and maintenance, supporting diverse wiring setups.

Rated for a contact current of 3A and a contact voltage of 400V AC, this device guarantees secure electrical performance across demanding industrial environments. It operates reliably within an ambient temperature range of -25°C up to 50°C and is optimized for vertical DIN rail mounting, excluding locations with terminals A1/A2 positioned at the bottom.

The product also supports a maximum operational frequency of 9000 operations per hour, making it suitable for high-duty cycle uses. Safety features include protection against direct contact from the front in the actuated position, reducing electrical shock hazards during operation.

Operates at 110V AC coil voltage for versatile industrial control. Four-pole design controls multiple electrical lines simultaneously. Includes 2 NO and 2 NC contacts for application flexibility. Screw terminals facilitate easy and secure wiring connections.

Rated for 3A contact current and 400V AC contact voltage. Supports up to 9000 operations per hour in continuous industrial use. Compact DIN rail mountable form factor with dimensions of 52mm x 52mm x 45mm. Operational temperature range from -25°C to 50°C.

Certified to key industrial standards CSA, EN 60947-5-1, IEC/EN 60947, UL, and VDE 0660. Constructed for reliable motor switching and power switching applications.

This Eaton DILER Contactor Relay is ideal for electrical and automation systems in industrial, manufacturing, HVAC, and power distribution contexts. Its durable construction and adherence to international standards make it a dependable component for controlling motors, lighting systems, and complex control circuits.

Explore additional Eaton products and related contactors in the Electronics & Electricals category on EnvMart for comprehensive industrial automation solutions.
