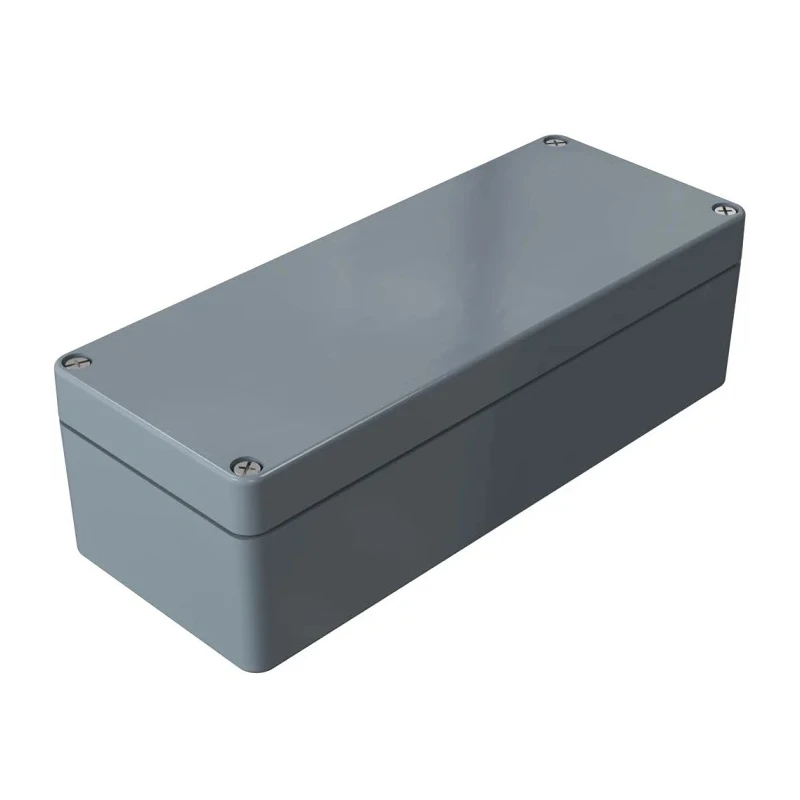

Rose Fibreglass Reinforced Thermoset Polyester Enclosure IP66 Grey Lid Graphite Body IK08 Impact Resistant

Rose 020819060 fibreglass reinforced thermoset polyester enclosure is engineered for robust protection of electrical and electronic components in industrial environments. This enclosure features a graphite body and grey lid design, providing an IP66 rating that offers total dust ingress protection and resistance to high-pressure water jets, essential for harsh conditions.

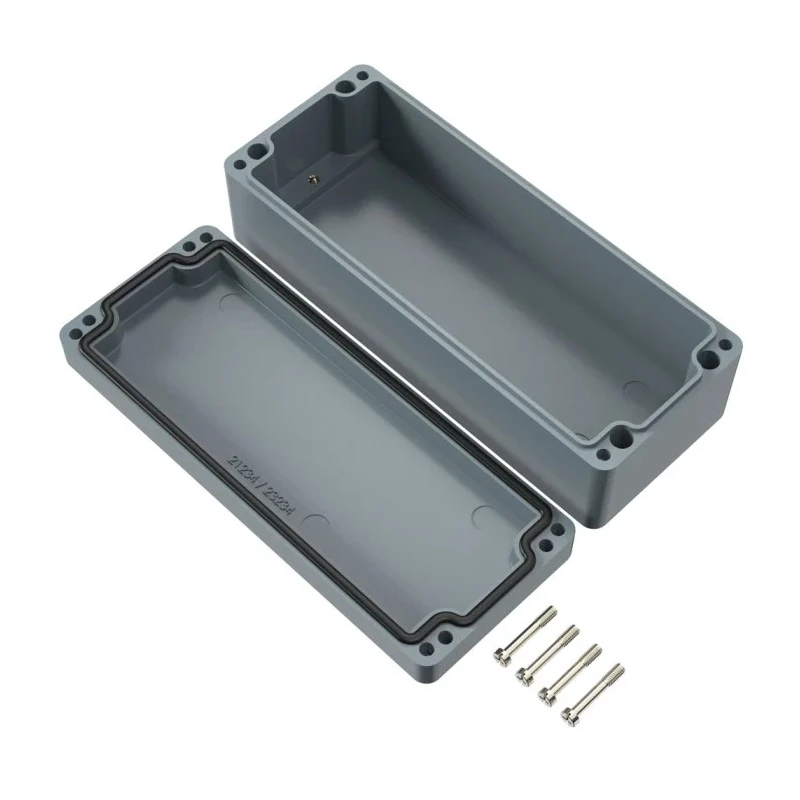

The enclosure is rated IK08, ensuring impact resistance of up to 7 joules, suitable for preventing mechanical damage. Constructed from glass fibre reinforced thermoset polyester, it is lightweight yet possesses high mechanical strength. The use of chloroprene gasket material guarantees a durable and effective seal, enhancing its protection against environmental factors.

Designed for installation terminals and diverse electronic components, this enclosure supports mounting on DIN Rails and fixing plates with holes located outside the sealed area for added convenience. Its resistance to acids, oils, and fats enables its use in food processing and chemical industry applications.

Additional features include self-extinguishing capability compliant with UL 94 V-0, halogen-free composition, and compliance with RoHS directives. The enclosure meets international standards such as EN 60529 for IP rating and EN 60079-0 for impact resistance, with hazardous area certifications including UL and maritime approvals.

Constructed from graphite body with fibreglass reinforced thermoset polyester for high durability. IP66 rated enclosure providing robust protection from dust ingress and strong water jets. IK08 impact resistance ensures mechanical protection against impacts.

Includes chloroprene gasket and grey lid to maintain environmental sealing. Lightweight form factor of 190mm height, 75mm width, and 190mm length. Suitable for use in automotive, food, chemical, and mechanical engineering industries.

Self-extinguishing and halogen free material for enhanced safety compliance. Mountable on DIN Rail and with fixing plates for versatile installation. Certified under UL, maritime regulations, and RoHS standards.

This enclosure is ideal for industrial and automation applications requiring durable, impact and water-resistant protection for sensitive electronic components. Explore our range of electrical enclosures and accessories at EnvMart for your technical and industrial requirements.
