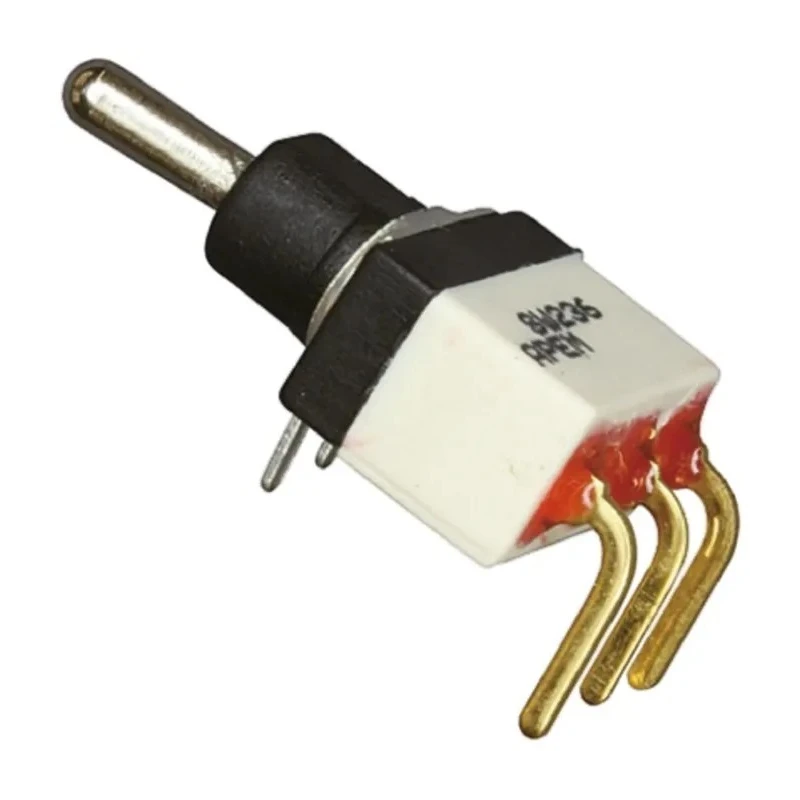

APEM Toggle Switch PCB Mount On-On SPST Through Hole Terminal 30 V dc 250 V ac SW236/7

Free Delivery in India | Lowest Global Shipping Charges

APEM Toggle Switch PCB Mount On-On SPST Through Hole Terminal 30 V dc 250 V ac SW236/7

Name: APEM Toggle Switch PCB Mount On-On SPST Through Hole Terminal 30 V dc 250 V ac SW236/7
Brand: APEM
SKU: 182622
Price: 13 USD
Availability: InStock



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Height	26.3mm
Length	11.65mm
Model	SW236/7
Width	6.9mm
Mount Type	PCB
Series	S and SF
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-On
Minimum Operating Temperature	-20°C
Panel Cutout Size	6.5 mm
Terminal type	Through Hole
Standards/Approvals	UL, RoHS, IEC, CECC
Switch Operation	On-On
Actuator Length	7.5mm
Contact DC Voltage	30V dc
Switch Contact Current	400mA
Contact AC Voltage	250V ac
Actuator Material	Brass
RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole TerminalBrand	RS PRO

Key Features

SPST contact configuration with On-On switch operation ensures reliable circuit control.
Designed for PCB mounting with through hole terminal type for secure connections.
Switch contact current rated at 400mA for moderate load handling.
Actuator is crafted from durable brass with a length of 7.5 mm.
Operates safely within temperature range of -20°C to 85°C.
Panel cutout size is 6.5 mm, suitable for precise fitment.
Meets industry standards including UL, RoHS, IEC, and CECC ensuring compliance and safety.
Manufactured in France, assuring quality craftsmanship.

Product Description

APEM SW236/7 Toggle Switch is a high-quality PCB mount toggle switch featuring an On-On SPST switching configuration. It supports a maximum contact voltage of 30 V dc and 250 V ac with a contact current rating of 400mA. The switch is designed for through hole mounting on printed circuit boards, providing secure and reliable electrical connections in industrial and electronic applications.

The actuator is made from brass material, with a length of 7.5 mm, engineered for durability and precision. This toggle switch has compact measurements of 26.3 mm in height, 11.65 mm in length, and 6.9 mm in width making it ideal for tight spaces. The recommended panel cutout for installation is 6.5 mm to ensure a snug fit.

Rated for operation in a temperature range from -20°C up to 85°C, the switch is suitable for various demanding environments including industrial automation, laboratory equipment, and electronic control panels. It adheres to several key standards such as UL, RoHS, IEC, and CECC, ensuring compliance with safety and environmental regulations.

Manufactured in France, this toggle switch represents precision manufacturing and robust performance for reliable switching in diverse applications. SPST contact configuration with On-On switch operation ensures reliable circuit control.

Designed for PCB mounting with through hole terminal type for secure connections. Actuator constructed from brass for enhanced durability. Supports voltage ratings of 30 V dc and 250 V ac for versatile electrical use. Meets UL, RoHS, IEC, and CECC standards for quality and safety.

Compact form factor with precise panel cutout size of 6.5 mm. Operating temperature range from -20°C to 85°C for industrial suitability. Manufactured in France, signifying premium craftsmanship.

This Toggle Switch is ideal for applications in electronics, industrial automation, and control systems requiring a robust on-on SPST switching solution. Explore more high-quality switches and components in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features an SPST (Single Pole Single Throw) contact configuration with an On-On switch operation, ensuring reliable circuit control.

It supports a maximum contact voltage of 30 V dc and 250 V ac, making it suitable for various electrical applications.

The switch contact current is rated at 400mA, allowing it to handle moderate load requirements effectively.

The recommended panel cutout size for this toggle switch is 6.5 mm, ensuring a snug fit during installation.

This unit has compact dimensions of 26.3 mm in height, 11.65 mm in length, and 6.9 mm in width, making it suitable for tight spaces.

It operates safely within a temperature range of -20°C to 85°C, suitable for various demanding environments.

The actuator is crafted from brass, which provides durability and precision in operation.

It meets several key standards including UL, RoHS, IEC, and CECC, ensuring compliance with safety and environmental regulations.

This model is designed for PCB mounting with a through hole terminal type, providing secure connections on printed circuit boards.

The toggle switch is part of the S and SF series, which indicates its specific design and operational characteristics.

It is manufactured in France, which signifies quality craftsmanship in its production.

This toggle switch is ideal for use in industrial automation, laboratory equipment, and electronic control panels, requiring a robust switching solution.
