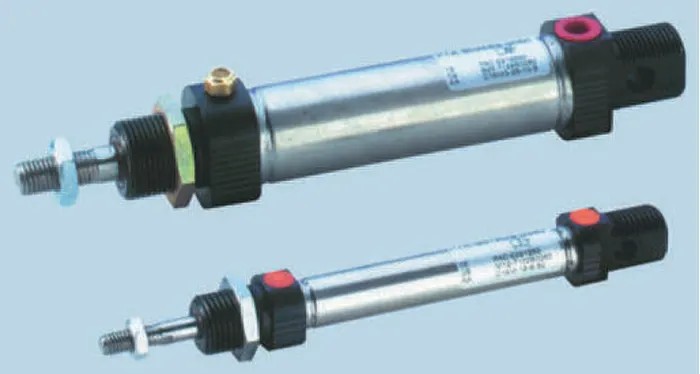

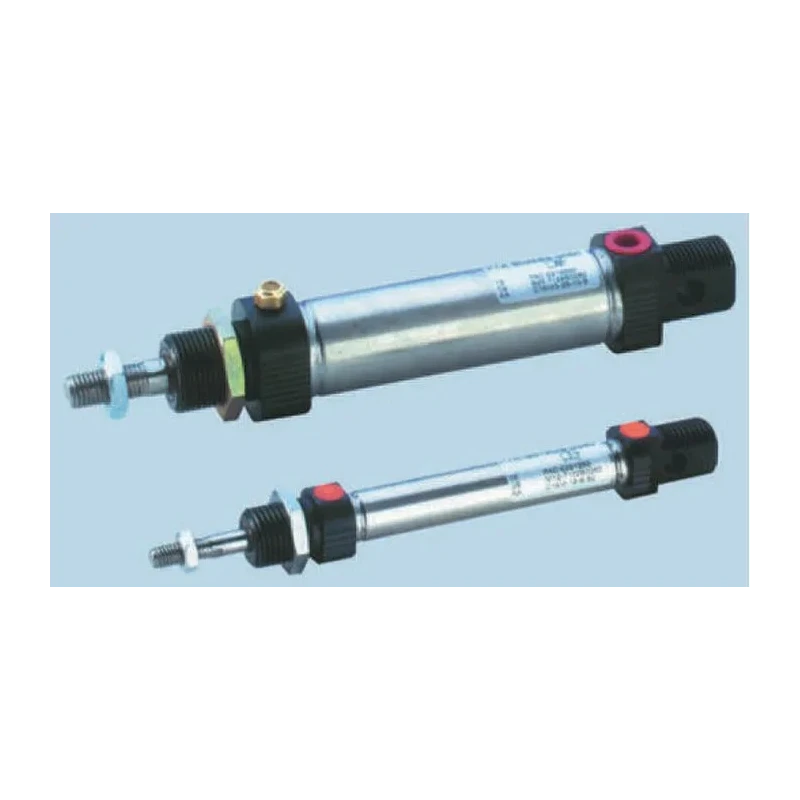

Parker 25 mm Stainless Steel Pneumatic Piston Rod Cylinder, Single Acting, Both Ends Tapped Mount, ISO 6432 P1A-S025SS-0025

Parker P1A-S025SS-0025 is a high-quality 25 mm bore pneumatic piston rod cylinder designed for single acting applications. It complies with ISO 6432 standards and is constructed with stainless steel barrel and piston rod for excellent corrosion resistance and structural integrity. The cylinder is mounted using both ends tapped holes providing flexibility during installation.

This cylinder operates with compressed air that can be filtered, lubricated or non-lubricated, with a maximum operating pressure of 10 bar and an operating temperature range between -20°C and +80°C. The end covers are made of anodised aluminium, enhancing resistance to external factors. Buffer cushioning at the end of stroke reduces impact and extends cylinder lifespan.

The piston rod is a double type with a female M8 threaded end, suitable for various mechanical assemblies. Seals made from fluorocarbon and nitrile rubber guarantee seal integrity under diverse operating conditions. The compact length of 157 mm and stroke length of 25 mm make it suitable for precise pneumatic actuator roles in automation, assembly lines, and industrial machinery.

This Pneumatic Piston Rod Cylinder is widely applicable in industrial, manufacturing, laboratory, automation, and fluid power tool scenarios, where compact and reliable pneumatic actuation is required. Its corrosion-resistant stainless steel and durable construction ensure excellent performance and longevity.

The cylinder features single acting action with spring return. Stainless steel material resists corrosion and wear. Both ends tapped mount ensures installation versatility. Suitable for compressed air medium, filtered/lubricated or non-lubricated.

Operating pressure up to 10 bar maximizes operational safety. Operating temperature range from -20°C to +80°C suitable for varied environments. Buffer cushioning extends working life of the unit. Double piston rod with female M8 threaded end for secure mounting.

End covers are anodised aluminium for enhanced durability. Reliable seals using fluorocarbon and nitrile rubber provide airtight performance. Explore the full range of Parker pneumatic cylinders and actuators on EnvMart for industrial and mechanical automation solutions.
