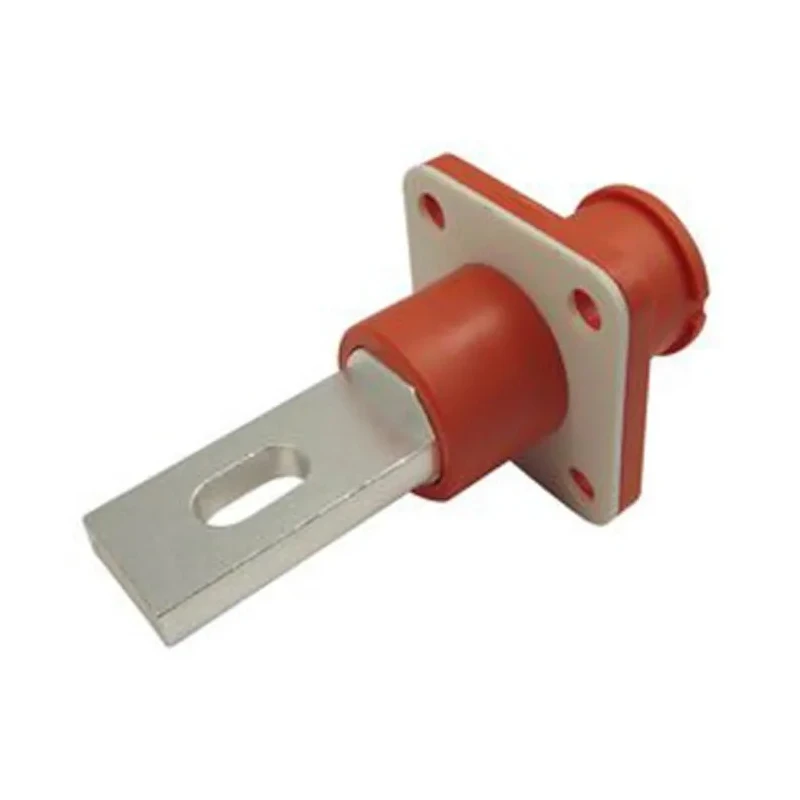

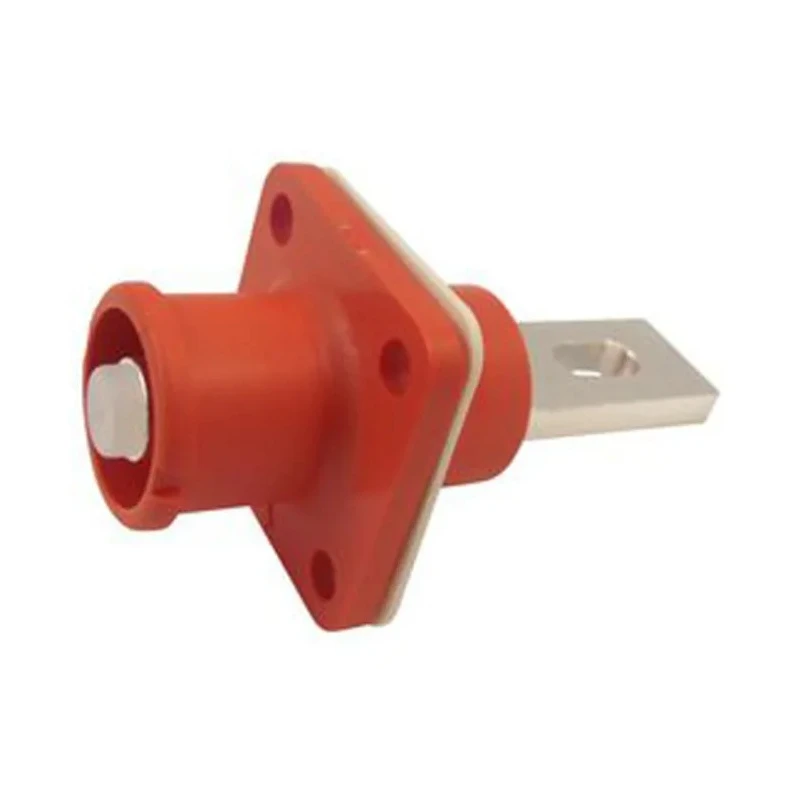

Amphenol Industrial EV Connector SURLOK PLUS RADSOK Female Panel Mount 200A 1000V SLPIRBBPSO1 / C10-731950-011
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 200A |
| Height | 30mm |
| Model | SLPIRBBPSO1 / C10-731950-011 |
| Depth | 62.2mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Busbar |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35, 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Compact and quick mating compression lug design ensures fast installation.
- RADSOK technology provides high tensile strength and excellent conductivity.
- Rated for operation between -40°C and 125°C with IP67 ingress protection.
- Spring locking and keyed design prevent mismating and enhance safety.
- Compatible with SurLok 1-Position Plug, ideal for electric vehicle and heavy equipment uses.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Panel mount flange allows secure mounting with a compact size of 30mm × 30mm × 62.2mm.
- Complies with UL 94-V0 flammability standard ensuring fire safety.
Product Description
Amphenol Industrial SLPIRBBPSO1 / C10-731950-011 is a high-performance EV connector from the SURLOK PLUS series, designed for demanding electrical applications requiring reliable power connections.
This RADSOK female connector is rated at 200 Amps and supports an operating voltage of 1000V, making it suitable for high current automotive and railway systems, battery management, and process control industries.
The connector features a spring locking mechanism and a keyed design to prevent mismating, ensuring secure and safe connections in panel mount configurations. Its robust thermoplastic housing and copper alloy contacts provide excellent durability and conductivity.
Its IP67 rating and UL 94-V0 flame retardant compliance guarantee protection against dust, water ingress, and fire hazards in harsh industrial environments.
The compact dimensions of 30mm height, 30mm width, and 62.2mm depth facilitate easy installation in restricted spaces. The 8mm pin diameter and compatibility with SurLok 1-Position Plugs expand its versatility in electric vehicle and heavy equipment applications.
This product is a key component in sustainable energy solutions and supports a renewable energy claim under the Better World initiative, reflecting a commitment to eco-friendly industrial practices.
Compact and quick mating compression lug design ensures fast installation. RADSOK technology provides high tensile strength and excellent conductivity. Rated for operation between -40°C and 125°C with IP67 ingress protection.
Spring locking and keyed design prevent mismating and enhance safety. Compatible with SurLok 1-Position Plug, ideal for electric vehicle and heavy equipment uses. Constructed with copper alloy contacts and thermoplastic housing for durability.
Panel mount flange allows secure mounting with a compact size of 30mm × 30mm × 62.2mm. Complies with UL 94-V0 flammability standard ensuring fire safety.
Amphenol Industrial EV Connectors are widely used in railway mass transit systems, electric vehicles, medical devices, industrial process control, and battery management systems, offering reliability and safety in critical applications.
Explore more EV and power connector options on EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 200 Amps.
It supports an operating voltage of 1000V.
The connector is rated for operation between -40°C and 125°C.
This unit features a panel mount design, allowing for secure installation.
It has an IP67 ingress protection rating, ensuring dust and water resistance.
The housing is made of thermoplastic, and the contacts are constructed from copper alloy.
The pin diameter is 8mm.
It is compatible with SurLok 1-Position Plugs.
The dimensions are 30mm in height, 30mm in width, and 62.2mm in depth.
It utilizes a busbar termination type.
It complies with the UL 94-V0 flammability standard, ensuring fire safety.
This model is commonly used in electric vehicles, railway systems, and industrial process control.
