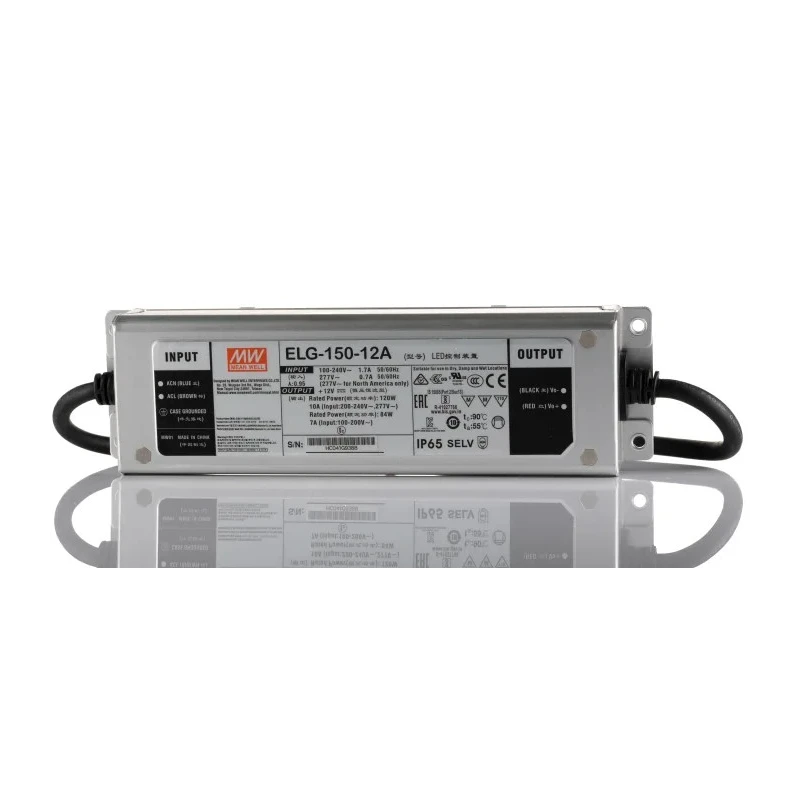

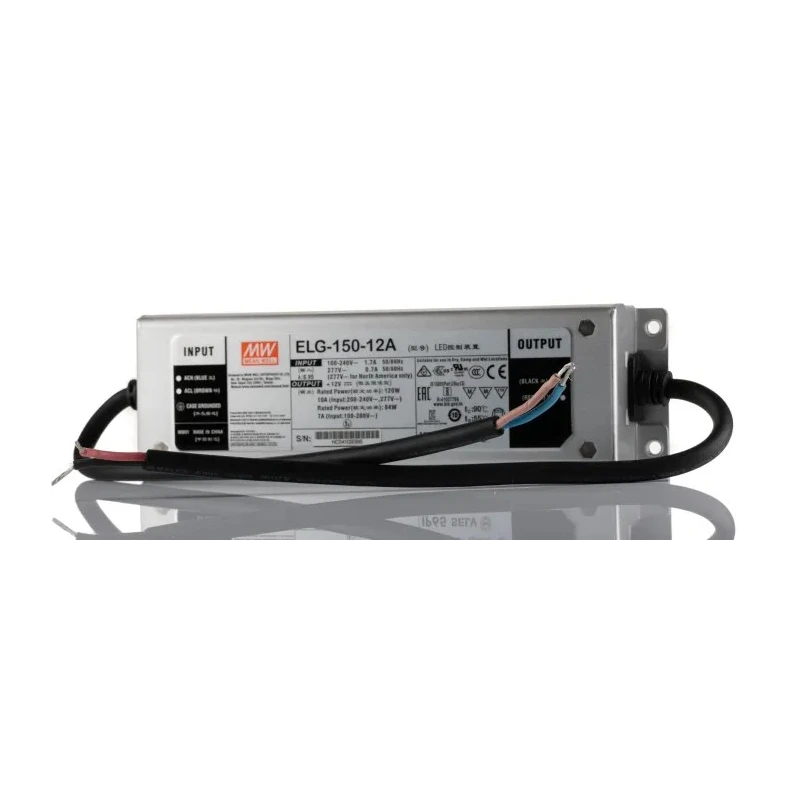

MEAN WELL ELG-150 Series Dimmable IP65 1 Output LED Driver 12V 120W 900mA Potentiometer
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Screw |
| Series | ELG-150 |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Current/Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 120W |
| Input Voltage | 180, 305, 254, 431V ac |
| Output Voltage | 12V |
| Power Dissipation | 120W |
| Standards/Approvals | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
| Dimming Operation | Potentiometer |
| Primary Type | AC-DC, DC-DC |
| Driver Current | 900mA |
| Standards/ApprovalsCB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
| CB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
Key Features
- High efficiency fan-less design rated up to 91% for reliable operation.
- Supports constant current and constant voltage operating modes.
- Constructed with robust full metal housing ensuring durability and industrial suitability.
- Compliant with CB, CE, CCC, cULus Recognized, and EN certifications.
- Ideal for LED street lighting, architectural lighting, bay lighting, and floodlighting applications.
- Equipped with built-in active power factor correction (PFC) function.
- Operates within wide input voltage range from 180V to 431V AC.
- Offers potentiometer and PWM signal dimming options for flexible control.
Product Description
MEAN WELL ELG-150-12A LED Driver is a robust, dimmable power supply solution for various LED lighting needs. This product features an IP65 rated enclosure ensuring protection against dust and water ingress, making it suitable for outdoor and industrial environments.
It provides a single output of 12V with a maximum output power of 120W and a rated driver current of 900mA, supporting both constant current and constant voltage operating modes. The driver includes a potentiometer dimming operation capability to adjust lighting intensity conveniently.
The ELG-150 series LED driver is built with a fan-less design that enhances reliability and reduces maintenance by eliminating moving parts. The metal housing construction adds mechanical strength and thermal dissipation efficiency.
Compliance with international standards such as CB, CE, CCC, cULus, EN61347-1, EN61347-2-13, EN62384, ENEC, and UL8750 assures high safety and performance benchmarks. The device also includes built-in active power factor correction for better energy efficiency and reduced harmonics.
Typical industrial applications for this LED driver include street lighting, floodlighting, architectural illumination, and bay lighting installations, where long-term reliability and precise dimming control are critical.
High efficiency and fan-less cooling design. Wide input voltage range with robust electrical protection. Dimmable output via potentiometer or PWM dimming signals. Encapsulated configuration for industrial-grade protection.
Class 2 power supply for enhanced electrical safety.
This LED driver combines robust industrial design, flexible dimming functionality, and safety certifications for professional LED lighting installations, making it an ideal choice for commercial and industrial lighting applications.
Explore more electronic components and power supplies in the LED Drivers category at EnvMart to find compatible and innovative solutions for your lighting projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 120W.
It operates within a wide input voltage range from 180V to 431V AC.
This model supports both constant current and constant voltage operating modes.
It provides a potentiometer dimming operation capability for adjusting lighting intensity.
The rated driver current for this unit is 900mA.
It is compliant with CB, CE, CCC, cULus Recognized, and several EN standards including EN61347-1 and EN62384.
The LED driver has an IP65 rating, ensuring protection against dust and water ingress.
It is designed for screw mounting.
The configuration is encapsulated, providing industrial-grade protection.
This model uses wire terminals for connections.
It is suitable for applications such as LED street lighting, architectural lighting, bay lighting, and floodlighting.
The country of origin for this product is India.
