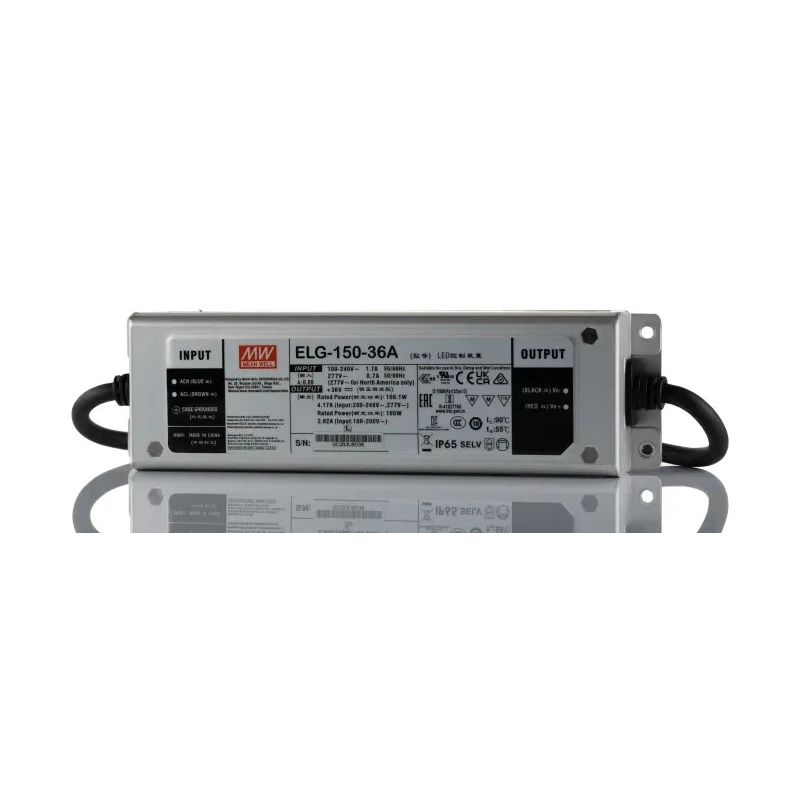

MEAN WELL IP65 1 Output LED Driver, 36V, 150 W, 900mA Potentiometer Dimmable

MEAN WELL ELG-150-36A is a high-performance IP65 rated LED driver with a single output designed for LED lighting applications. This dimmable LED driver delivers a stable 36V output voltage and maximum output power of 150W with a 900mA constant current. It features both constant current and constant voltage operating modes, offering flexibility for various LED configurations.

The driver boasts a fan-less design that enhances efficiency up to 91% while ensuring silent operation, which extends its lifespan. The encapsulated full metal housing provides rugged durability and protection against dust and water ingress with an IP65 rating, making it suitable for harsh environments.

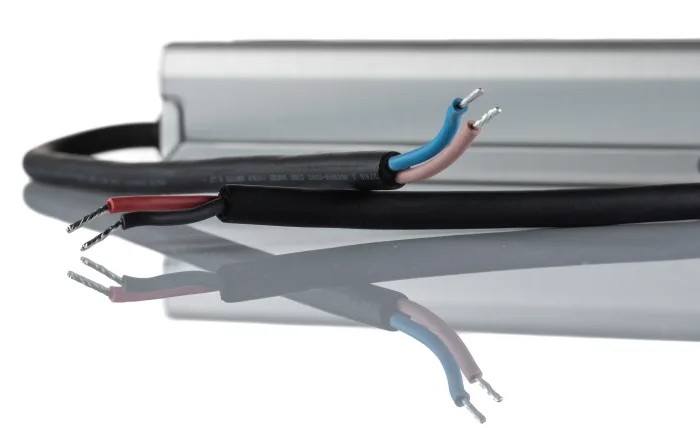

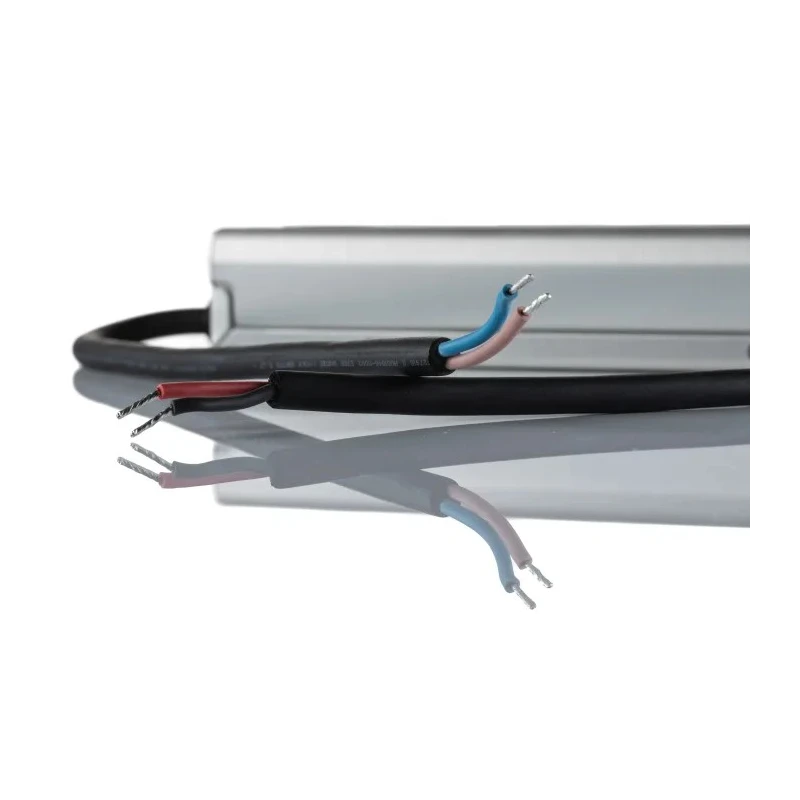

Its wide AC input voltage range (180V to 431V) enables stable performance across diverse power supplies. The built-in active PFC (Power Factor Correction) improves power efficiency and reduces harmonic distortion. Installation is simplified with a screw mounting mechanism and reliable wire terminal connections.

MEAN WELL ELG-150-36A complies with various global standards (CB, CE, UL, cULus Recognized, EN61347 series, EN62384, ENEC, PFC, UL8750), ensuring safety and quality. Commonly employed in industrial and commercial settings, it is ideal for LED street lamps, architectural lighting, high bay lighting, and floodlighting applications requiring robust and efficient power supplies.

High efficiency fan-less design provides quiet operation and durability. Rated IP65 for protection against water and dust, suitable for outdoor applications. Supports both constant current and constant voltage operating modes.

Wide input voltage range including 180V to 431V AC for versatile installations. Equipped with screw mount type and wire terminal for secure installation. Designed with active PFC function for improved power quality. Encapsulated robust full metal housing ensures long service life.

Complies with multiple safety and performance standards including CB, CE, UL, cULus, EN61347 series. Ideal for LED street lighting, architectural lighting, bay lighting, and floodlighting industrial applications. Explore our full range of LED Drivers for more power ratings and configurations to suit your industrial and commercial lighting needs on EnvMart.
