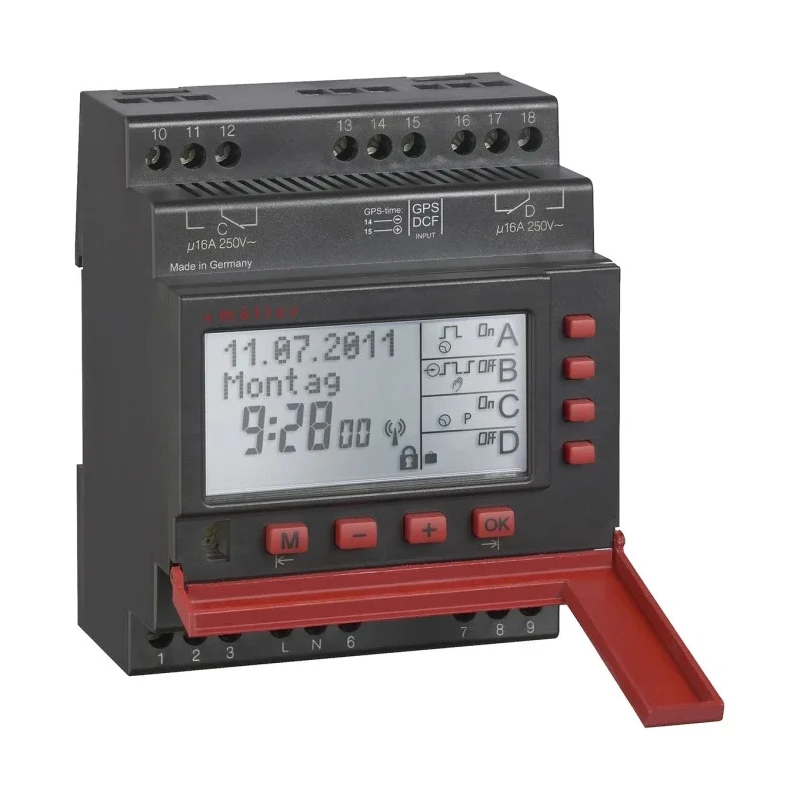

Muller Digital SC DIN Rail Time Switch 2-Channel 230V AC SC 98.20 PRO 230V 50-60HZ

The Muller SC 98.20 PRO 230V 50-60HZ is a high-precision digital DIN rail time switch with 2 channels and a 230V AC supply voltage. Featuring a quartz/DC time base with 1-minute segment length, it offers reliable and accurate time switching ideal for diverse industrial and commercial automation applications.

This DIN rail-mounted time switch provides a switching capacity of 16A per channel and supports manual permanent operating modes including manual override and a permanent ON/OFF switch. It can be programmed even with the supply disconnected, enhancing convenience during setup and maintenance.

The device supports automatic daylight saving time adjustment and holiday switching, secured by a PIN-code to prevent unauthorized alterations. An elapsed time and pulse counter facilitate advanced monitoring capabilities. Robust screw terminal connections ensure reliable electrical contact.

Engineered for operation in a wide temperature range from -30°C to 55°C, this time switch suits applications in outdoor lighting, street lighting control, heating, and ventilation regulation. Its compact design optimizes space in control panels, making it suitable for industrial automation environments.

Operates with quartz/DC time base providing accurate 1-minute interval control. Switching capacity of 16A per channel supports medium-load applications. Manual override and permanent ON/OFF features enable flexible operation.

PIN-code security enhances protection against unauthorized programming. Automatic daylight saving and holiday switching improve convenience. Screw terminal connection offers secure and reliable wiring. Wider operating temperature range (-30°C to 55°C) for versatile applications.

Compact DIN rail mounting fits efficiently in panel installations. Suitable for outdoor lighting and HVAC control systems. Offers 300 memory spaces for complex program configurations.

Manufactured in Germany, this time switch complies with RoHS, DIN EN 60730-1/DIN EN 60730-2-7, and ISO 15693 standards, ensuring quality and reliability in power control applications.
