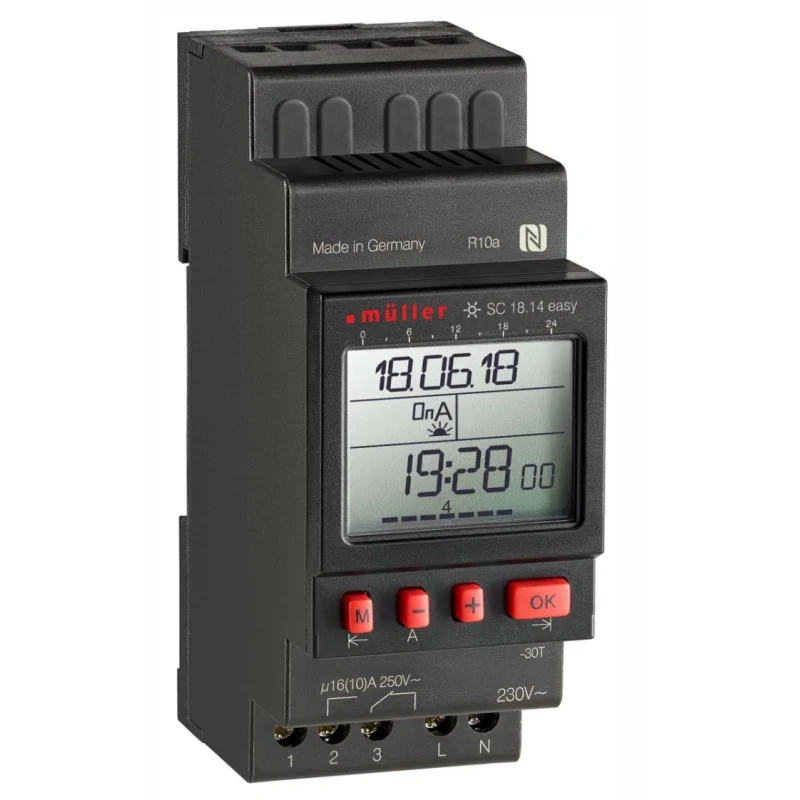

Muller Digital DIN Rail Time Switch 230V AC, 1 Channel, SPDT Contact, SC 18.14 EASY 230V 50-60HZ

Muller SC 18.14 EASY 230V 50-60HZ digital DIN rail time switch is a versatile automation device designed for industrial, electrical, and process control applications. Powered by a 230V AC supply, it features a single channel with SPDT contact configuration offering reliable switching capabilities with a capacity of 16 A per channel.

The device incorporates a large illuminated display for clear visibility and supports NFC smartphone programming through a free Android app, enabling efficient and user-friendly setup. Its compact form factor is designed for DIN rail mounting, making it suitable for control panels in manufacturing, HVAC systems, water treatment, and industrial automation setups.

This time switch supports multiple programming modes including daily, weekly, Astro, and economical night programs, providing flexibility in scheduling. It holds 56 memory spaces for extra switching times and offers a minimum switch interval of 1 minute, allowing precise control over processes.

Equipped with a long-lasting 10-year battery reserve backed by an exchangeable CR 2032 battery, the unit ensures uninterrupted memory retention. Additional features like permanent date/time, holiday functions, manual override, automatic daylight saving time adjustment, elapsed time, and pulse counters enhance operational convenience and security.

The product conforms to international standards including ISO 15693, RoHS, and DIN EN 60730-1/DIN EN 60730-2-7, with origin from Germany, guaranteeing quality and compliance. Its robust pull-up terminal design and compact dimensions (90 mm height and 63 mm depth) facilitate easy installation and reliable operation.

Easy handling with quick programming via illuminated display. NFC programming with free Android app. Daily, weekly, Astro programming modes with economical night function. 56 memory locations, 10 years battery life with exchangeable battery.

16 A switching capacity per channel with SPDT contact configuration. Permanent date/time and holiday function with manual override. Automatic daylight saving time and security PIN code protection. Elapsed time and pulse counter monitoring.

Conforms to ISO 15693, RoHS, DIN EN 60730 standards. Compact DIN rail mounting with pull-up terminal type.

Ideal for use in industrial automation, electrical panels, HVAC control, and process control applications, the Muller SC 18.14 EASY digital Time Switch offers reliable, flexible, and secure time-based switching solutions. Browse more automation and control gear products at EnvMart for comprehensive system integration.
