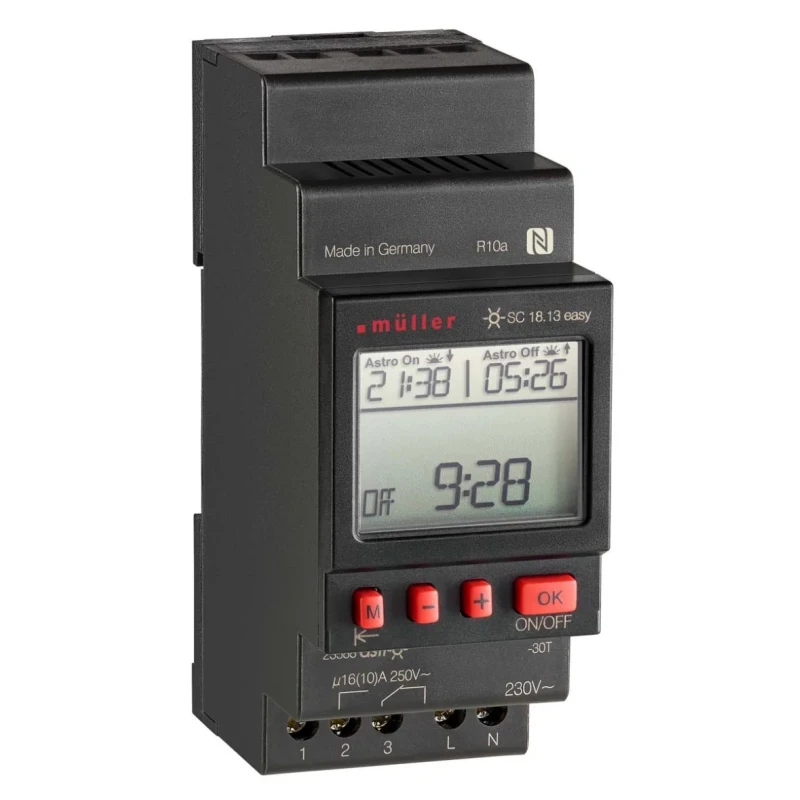

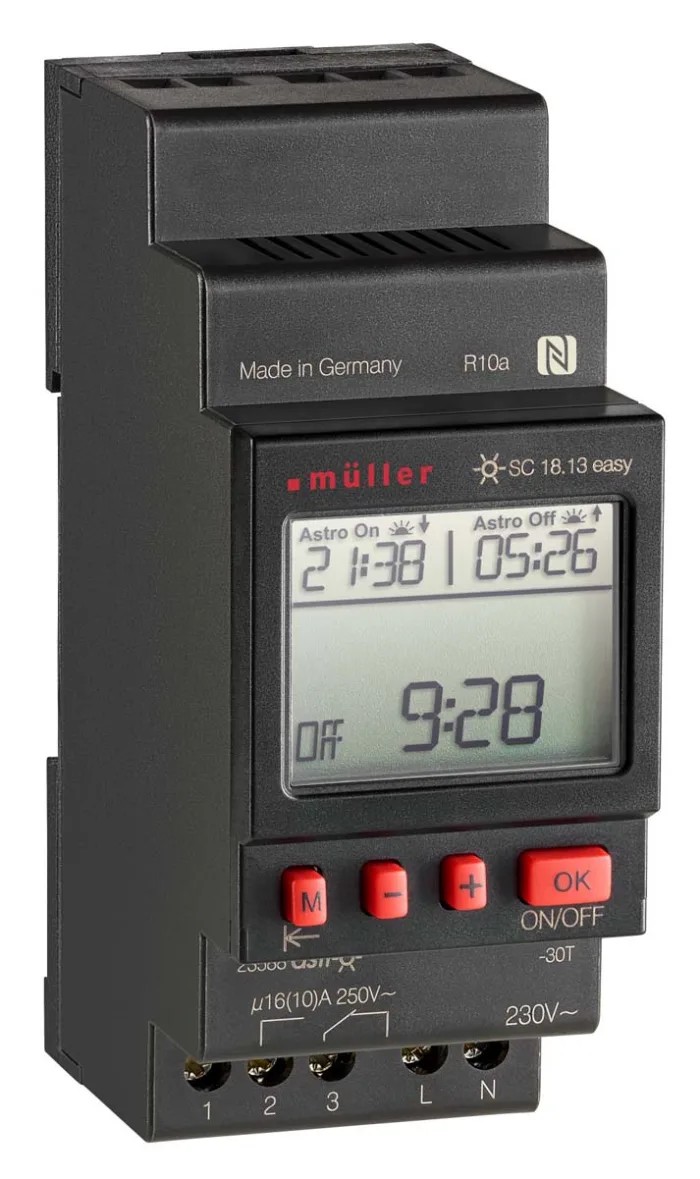

Muller Digital DIN Rail Time Switch 1 Channel, 230V AC, SPDT Contact, 10 Year Battery Life SC 18.13 EASY 230V 50-60HZ

The Muller SC 18.13 EASY 230V 50-60HZ is a digital DIN rail time switch designed for precise time-based control of electrical equipment in industrial, commercial, and automation systems. With a single channel and 230V AC supply voltage, this device supports programming in hours, days, seconds, and minutes with a minimum interval of one minute.

This time switch features easy handling due to its intuitive programming interface and a large clear illuminated display showing one line of text. Users can conveniently program schedules using an NFC-enabled smartphone app, offering advanced flexibility and remote configuration.

The device supports multiple switching programs, including daily, weekly, astro (sunrise/sunset adjusted), and economical night mode. It includes 56 memory spaces for switching times and retains programming with a 10-year battery life backed by an exchangeable CR 2032 battery.

Additional industrial features include SPDT contact configuration with a switching capacity of 16 A, manual override operation, permanent switching by date/time and holiday functions, automatic daylight saving time adjustment, and security via a PIN code. The time switch also provides elapsed time and pulse counters for monitoring purposes.

Mounting on a DIN rail allows easy integration into electrical enclosures and automation control panels. Its compact dimensions of 90mm height and 63mm depth facilitate space-saving installation.

Made in Germany to high standards including RoHS, ISO 15693, DIN EN 60730-1, and DIN EN 60730-2-7, the SC 18 series ensures reliable performance and compliance for industrial automation and process control applications.

Features easy handling with quick and intuitive programming. Large clear illuminated display shows one line text for ease of reading. Offers NFC programming through a free Android smartphone application. Supports daily, weekly, astro, and economical night programs with 56 switching times.

Equipped with 10-year battery reserve and exchangeable CR 2032 battery. Manual override and permanent switching by date, time, or holiday functions are included. Switching capacity is rated at 16 A per channel for robust industrial applications.

Includes security PIN code and fully automatic daylight saving time adjustments. Mounts on DIN rail for convenient installation in control panels.
