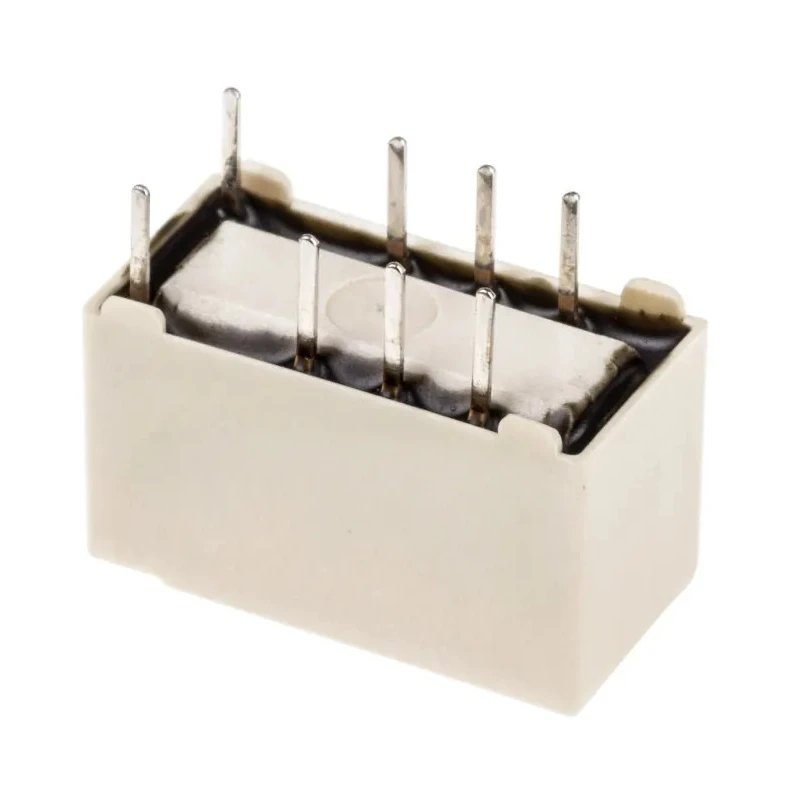

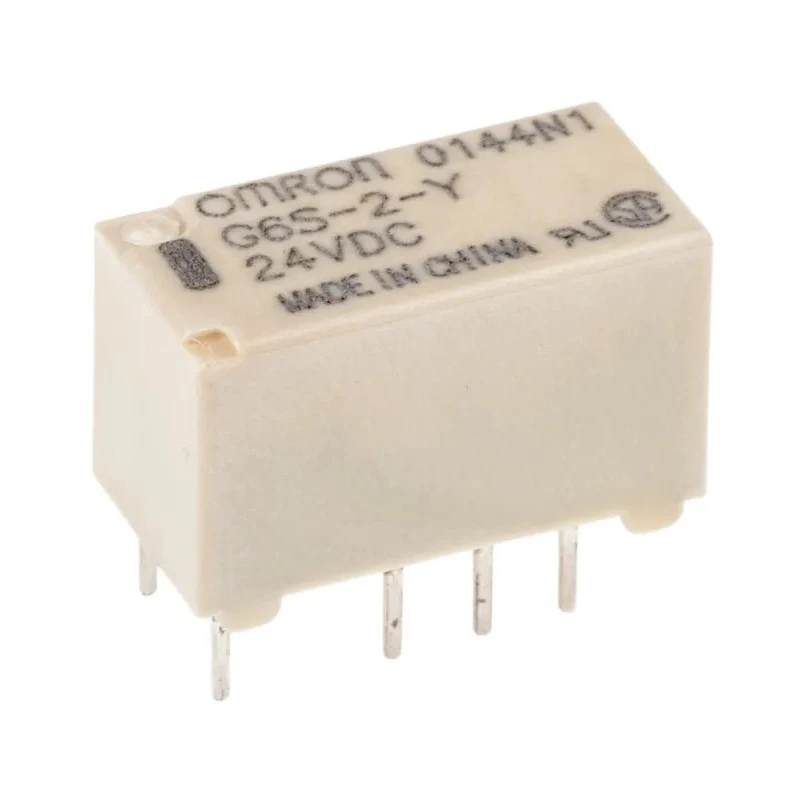

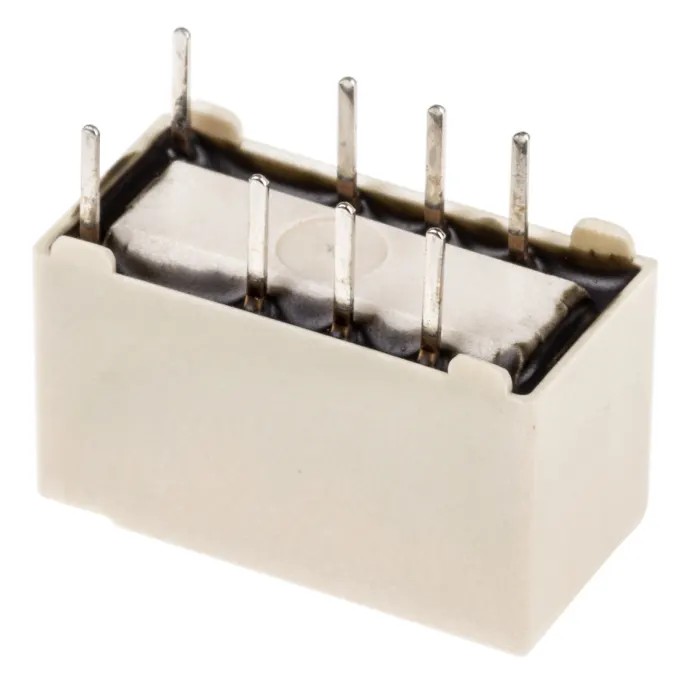

Omron PCB Signal Relay 24V dc Coil 2A DPDT G6S-2-Y DC24

Omron G6S-2-Y DC24 PCB Signal Relay is a precision-engineered ultra-miniature relay designed specifically for PCB mounting in signal relay applications. With a compact footprint of 14.8mm length, 7.3mm width, and 9.2mm height, it fits well into dense circuit board environments requiring reliable switching solutions.

This relay operates with a 24V dc coil voltage and consumes low power at 230mW, making it highly energy efficient for continuous industrial and automation use. The relay uses gold plated contacts to ensure low contact resistance and enhanced durability for switching currents up to 2A. It supports switching voltages up to 250V AC and 220V DC, suitable for various control and signal circuits.

Designed to function across a broad temperature range from -40°C to 85°C, it can be deployed safely in industrial, laboratory, and automation control environments. The coil resistance is 2500Ω, providing stable electromagnetic performance under different load conditions.

Omron’s G6S-2-Y DC24 relay complies with RoHS standards and meets EN 60950/EN 41003 supplementary insulation certifications, ensuring safety and regulatory compliance. It features high dielectric strength and impulse withstand voltage tested to 2500V, meeting Bellcore requirements for high voltage isolation between coil and contacts and among contacts of different polarity.

This non-latching PCB relay is ideal for electronic signaling and switching in manufacturing, automation systems, and equipment control. The PCB terminal type facilitates easy soldering onto PCBs, streamlining assembly processes.

The product is manufactured in China with stringent quality controls. Its compact size and high reliability make it a preferred choice in signal relay categories. Features a low power consumption coil with 24V dc voltage.

Gold plated contacts ensure reliable conductivity and durability. Dimensions: 14.8mm length, 7.3mm width, and 9.2mm height suitable for compact PCB designs. Operating temperature range from -40°C to 85°C allowing use in diverse environments.

Coil resistance rated at 2500Ω and coil power consumption of 230mW. Certified RoHS compliant and meets EN 60950 and EN 41003 insulation standards. High dielectric strength and impulse withstand voltage of 2500V 2x10μs meeting Bellcore requirements.

Non-latching relay design suitable for signal switching up to 2A switching current. Maximum switching AC voltage of 250V ac and DC voltage of 220V dc. Terminal type is PCB terminal optimized for printed circuit boards. Explore more Signal Relay products and trusted Omron components at EnvMart for your electronics and electrical projects.
