Hengstler RI58-O Series Incremental Encoder 30V dc, 2500 ppr, Push Pull Signal, Solid 10 mm Shaft RI58-0/2500EK.42KB

Free Delivery in India | Lowest Global Shipping Charges

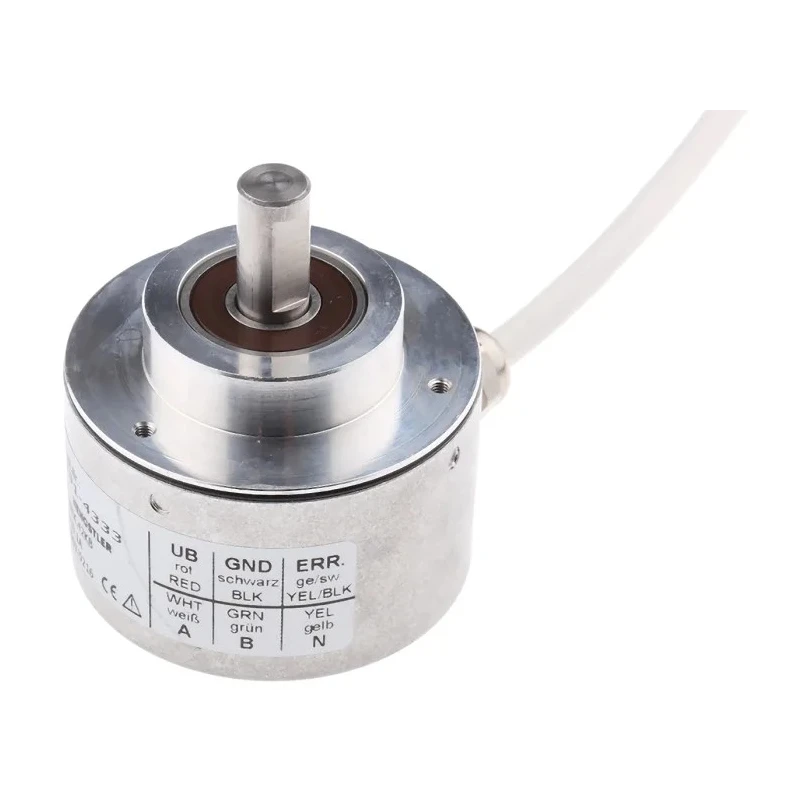

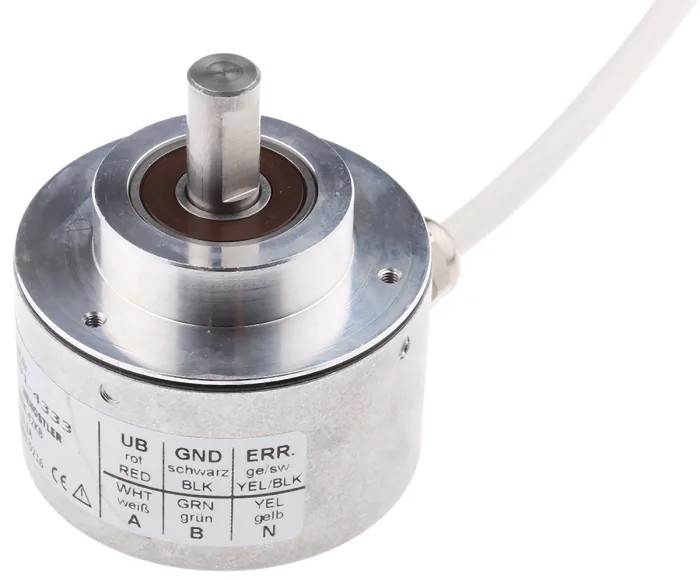

Hengstler RI58-O Series Incremental Encoder 30V dc, 2500 ppr, Push Pull Signal, Solid 10 mm Shaft RI58-0/2500EK.42KB

Name: Hengstler RI58-O Series Incremental Encoder 30V dc, 2500 ppr, Push Pull Signal, Solid 10 mm Shaft RI58-0/2500EK.42KB
Brand: Hengstler
SKU: 181573
Price: 373.49 USD
Availability: InStock



Category Incremental Encoder Brand Hengstler Condition New

Specifications

Country of Origin	Germany
Brand	Hengstler
Model	RI58-0/2500EK.42KB
IP Rating	IP64, IP65, IP67
Mount Type	Flange
Series	RI58-O
Overall Width	57.5mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Shaft Diameter	10mm
Overall height	57.5mm
Switching Frequency	300kHz
Shaft Type	Solid
Terminal type	Cable
Interface Type	Push Pull
Pulses per Revolution	2500ppr
Standards/Approvals	CE, UL
Maximum Supply Voltage	30V dc
Overall Depth	58mm
Encoder Technology	Incremental
Maximum Revolutions	10000rpm
Output Signal Type	Push Pull
Encoders	OptoAsic technology for greater reliability
Pulse shape	Square wave, 1:1 duty cycle

Key Features

High-resolution incremental encoder offering 2500 pulses per revolution.
Solid shaft type with 10 mm diameter for robust coupling.
Push Pull output signal interface ensures reliable communication.
Flange mount type suitable for fixed installations.
Compatible with operating temperatures ranging from -10°C to 70°C.
Maximum rotational speed of 10,000 rpm for high-performance applications.
IP64, IP65, and IP67 rated for excellent protection against dust and water ingress.
Incorporates OptoAsic technology for enhanced reliability and pulse shape stability.

Product Description

Hengstler RI58-0/2500EK.42KB Incremental Encoder from the RI58-O Series operates at 30V dc with a high pulse rate of 2500 pulses per revolution, designed for industrial motion control applications. Featuring a solid 10 mm shaft and Push Pull output interface, it provides accurate and reliable incremental signals suitable for automation and machinery feedback systems.

This encoder adopts advanced OptoAsic technology enhancing reliability and durability under challenging operational conditions. The pulse shape is a stable square wave with a 1:1 duty cycle, optimizing signal integrity. It is designed with a flange mount type for secure installation and can withstand temperatures from -10°C to 70°C, making it suitable for diverse industrial environments.

The encoder housing offers IP64, IP65, and IP67 ingress protection classes, ensuring resistance against dust and moisture ingress, essential for demanding automation and control gear systems. With a maximum rotational speed of 10,000 rpm and switching frequency up to 300 kHz, it supports high-speed machinery and precision tasks.

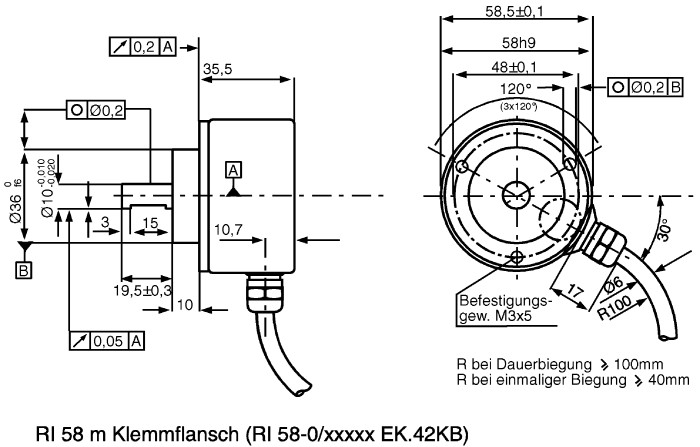

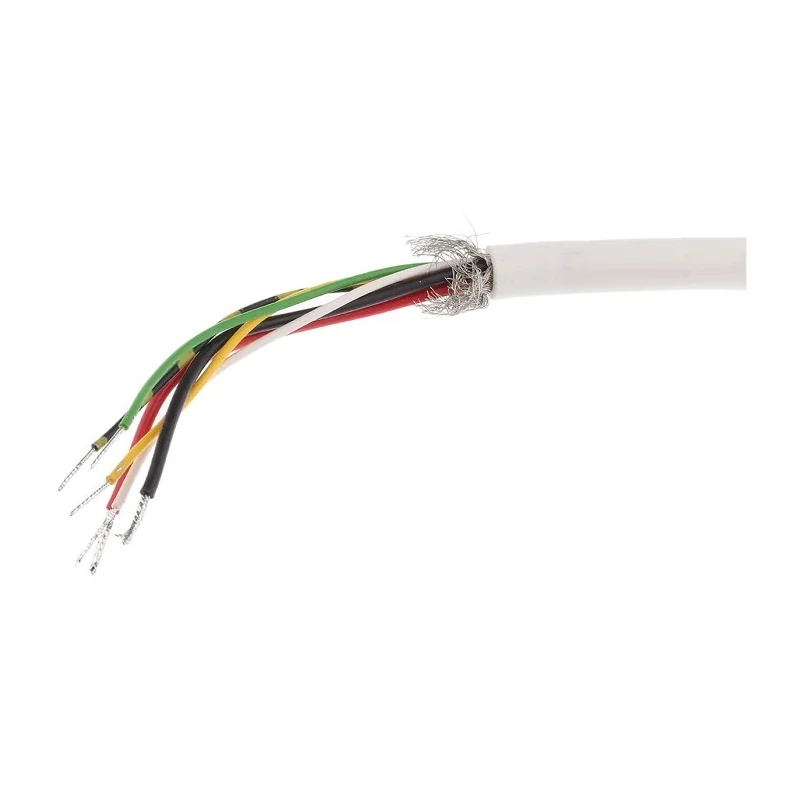

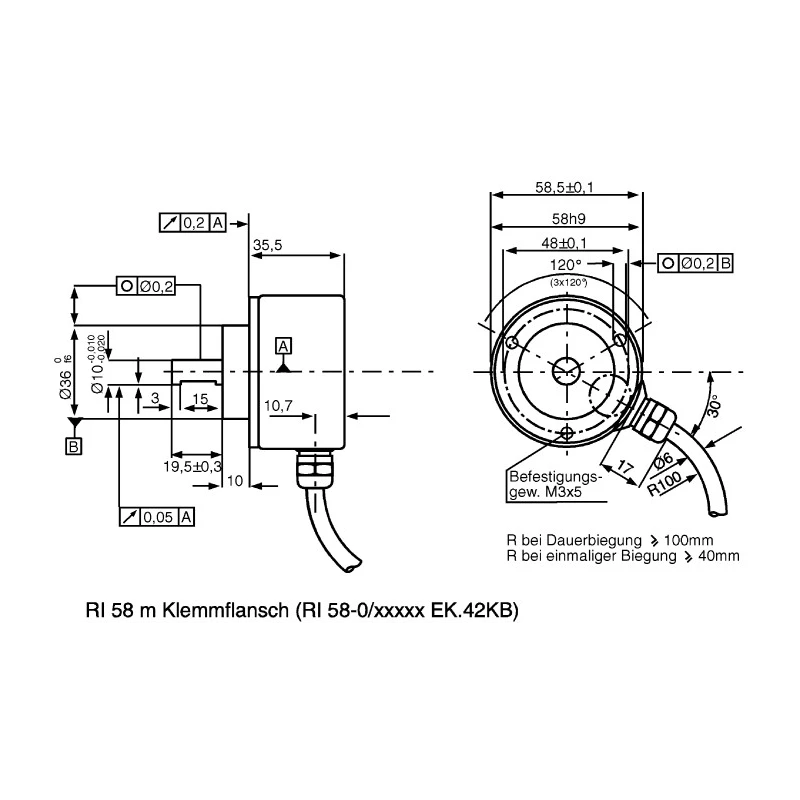

Compact dimensions of approximately 57.5 mm height and width with 58 mm depth allow it to fit limited spaces on production and testing equipment. The cable termination and Push Pull signal interface provide ease of connectivity and integration into existing control circuits.

Applications span across industrial automation, robotics, machine tool positioning, conveyor control, and other motion sensing requirements where precise shaft position feedback is critical.

High-resolution incremental encoder with 2500 pulses per revolution. Solid 10 mm shaft and flange mount design. Push Pull output signal interface ensuring consistent communication. Operating temperature range -10°C to 70°C.

IP64, IP65, and IP67 protection rating for dust and moisture resistance. Maximum speed of 10,000 rpm and switching frequency of 300 kHz. OptoAsic technology providing greater reliability and pulse precision. Compact dimensions: 57.5 mm height, 57.5 mm width, 58 mm depth.

Suitable for industrial automation, motion control, and robotics. Explore more in our Electronics & Electricals Sensors Incremental Encoder category for various motion control solutions by Hengstler and other leading brands.
