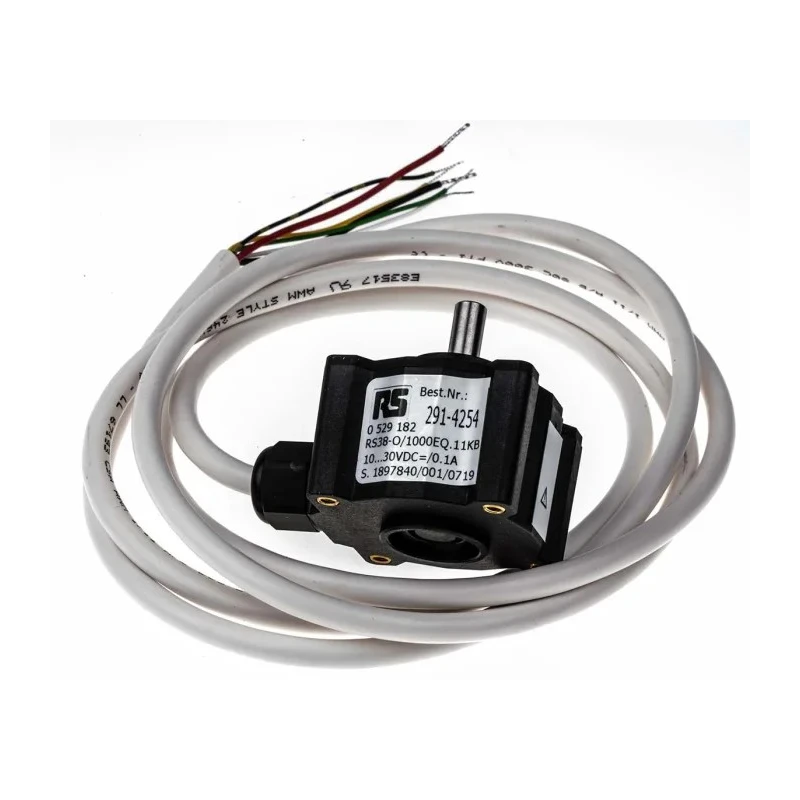

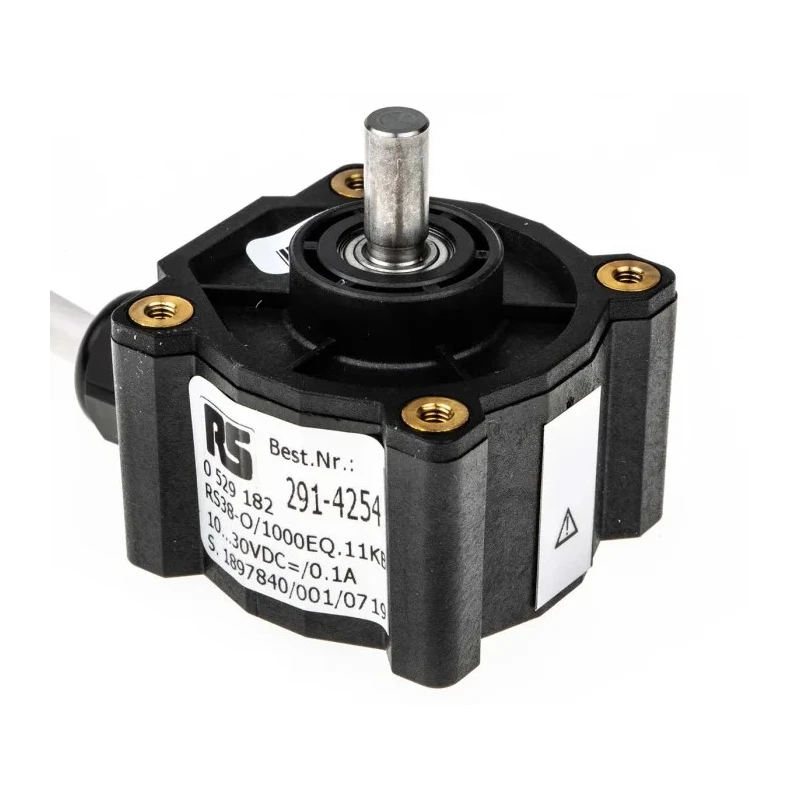

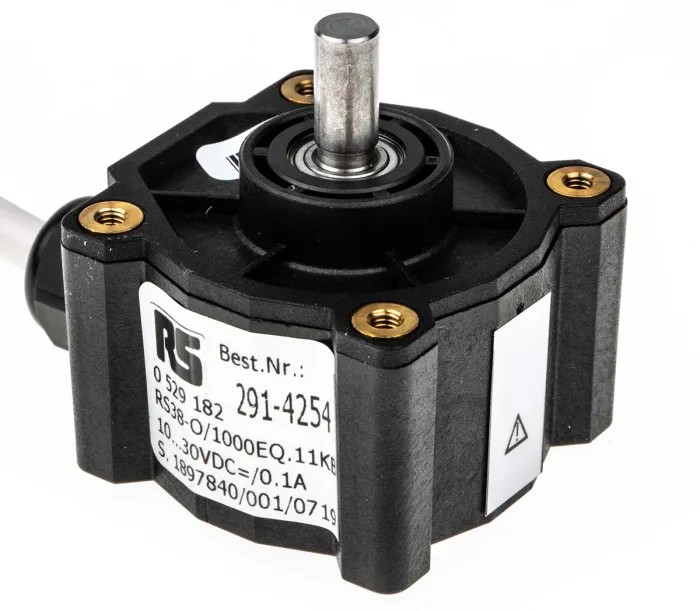

Hengstler RI38 Series Incremental Encoder 30V DC, 1000 ppr, Push Pull Signal, Solid Shaft 6 mm RS38-O/1000EQ.11KB

Free Delivery in India | Lowest Global Shipping Charges

Hengstler RI38 Series Incremental Encoder 30V DC, 1000 ppr, Push Pull Signal, Solid Shaft 6 mm RS38-O/1000EQ.11KB

Name: Hengstler RI38 Series Incremental Encoder 30V DC, 1000 ppr, Push Pull Signal, Solid Shaft 6 mm RS38-O/1000EQ.11KB
Brand: Hengstler
SKU: 181570
Price: 340.35 USD
Availability: InStock



Category Incremental Encoder Brand Hengstler Condition New

Specifications

Country of Origin	Germany
Brand	Hengstler
Model	RS38-O/1000EQ.11KB
IP Rating	IP40
Mount Type	Panel
Series	RI38
Overall Width	46.5mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Shaft Diameter	6mm
Overall height	46.5mm
Switching Frequency	200kHz
Shaft Type	Solid
Interface Type	Push Pull
Pulses per Revolution	1000ppr
Standards/Approvals	CE, UL
Maximum Supply Voltage	30V dc
Overall Depth	39mm
Encoder Technology	Incremental
Maximum Revolutions	10000rpm
Output Signal Type	Push Pull
Encoders	OptoAsic technology for greater reliability
Pulse shape	Square wave, 1:1 duty cycle

Key Features

Operates with a maximum supply voltage of 30V DC for efficient power consumption.
Provides 1000 pulses per revolution ensuring precise position sensing.
Supports push pull output signal type for reliable digital signal transmission.
Equipped with a solid shaft of 6 mm diameter for robust mechanical coupling.
Panel mount type with IP40 rating protects against solid contaminants.
Switching frequency up to 200 kHz suitable for high-speed applications.
Operating temperature range from -10°C to 60°C for versatile environmental use.
Utilizes OptoAsic technology enhancing reliability and durability.

Product Description

Hengstler RS38-O/1000EQ.11KB Incremental Encoder is a precision motion control sensor designed for industrial automation and control gear applications. Operating at 30V DC, this encoder provides 1000 pulses per revolution with a push pull output signal, offering highly accurate position feedback for dynamic machinery and equipment.

The encoder features a robust solid shaft with a 6 mm diameter, designed for panel mounting with an IP40 ingress protection rating, suitable for many industrial environments. Its maximum rotational speed is 10,000 rpm, making it ideal for high-speed applications. The inclusion of OptoAsic technology ensures enhanced reliability through improved electronics performance and durability.

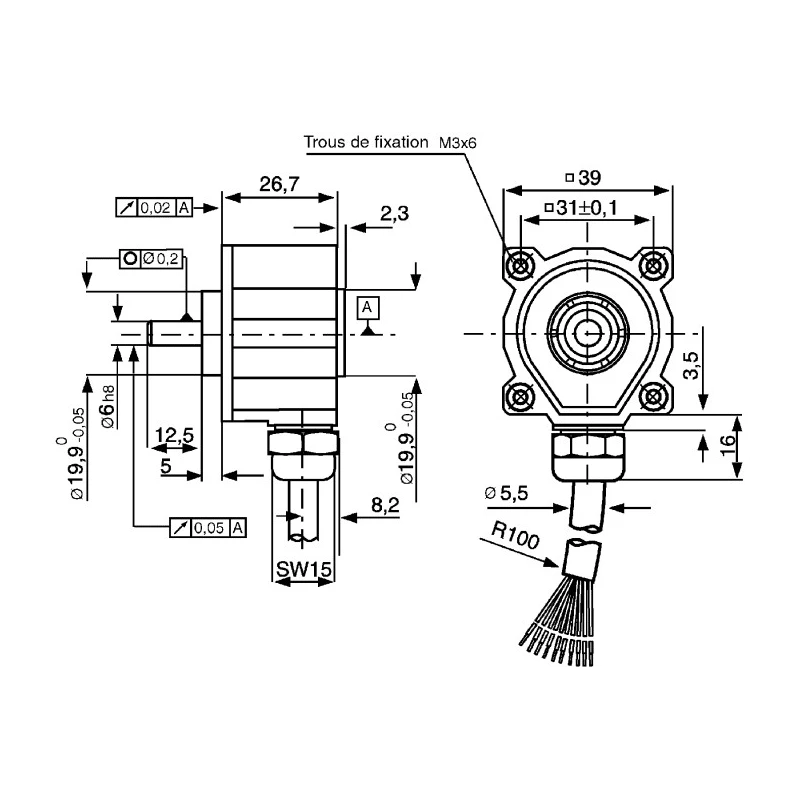

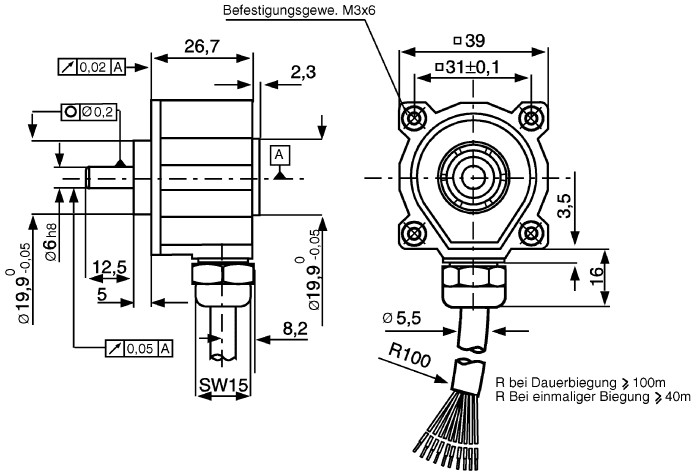

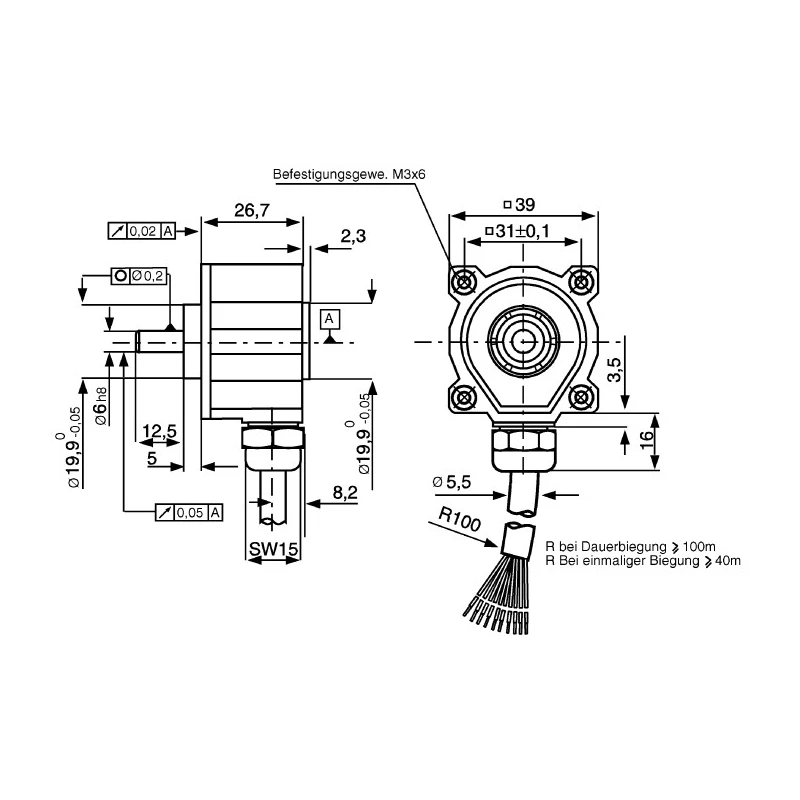

With a compact form factor measuring 46.5 mm in height and width and 39 mm in depth, the encoder is easy to install in limited-space setups. It operates reliably within a temperature range of -10°C to 60°C, ensuring consistent operation under various industrial conditions. The switching frequency of up to 200 kHz supports fast and precise signal processing requirements.

This Hengstler encoder delivers square wave pulse outputs with a 1:1 duty cycle, ensuring consistent and noise-resistant digital signals. The panel mount configuration simplifies mechanical integration in control panels and automation systems.

Applications include industrial machinery, manufacturing automation, robotics, HVAC systems, and other equipment requiring precise rotational position sensing and speed feedback. Operates at 30V DC supply voltage. 1000 pulses per revolution for high resolution.

Push pull output signal ensuring reliable digital communication. Solid shaft type with 6 mm diameter. Panel mounting with IP40 environmental protection. Supports rotational speeds up to 10,000 rpm. Switching frequency capability up to 200 kHz.

Operating temperature from -10°C to 60°C. Features OptoAsic technology for enhanced reliability. Compact size: 46.5×46.5×39 mm. Explore the Hengstler range of precision encoders for advanced motion control solutions on EnvMart.
