Kubler RI58 Series Incremental Encoder 30V DC, 100 ppr, Push Pull Signal, Hollow Shaft 12 mm RS0-550-172

Free Delivery in India | Lowest Global Shipping Charges

Kubler RI58 Series Incremental Encoder 30V DC, 100 ppr, Push Pull Signal, Hollow Shaft 12 mm RS0-550-172

Name: Kubler RI58 Series Incremental Encoder 30V DC, 100 ppr, Push Pull Signal, Hollow Shaft 12 mm RS0-550-172
Brand: Kubler
SKU: 181569
Price: 361.96 USD
Availability: InStock



Category Incremental Encoder Brand Kubler Condition New

Specifications

Country of Origin	Germany
Brand	Kubler
Model	RS0-550-172
IP Rating	IP64, IP67, IP65
Mount Type	Flange
Series	RI58
Overall Width	57.5mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Shaft Diameter	12mm
Overall height	57.5mm
Switching Frequency	300kHz
Shaft Type	Hollow

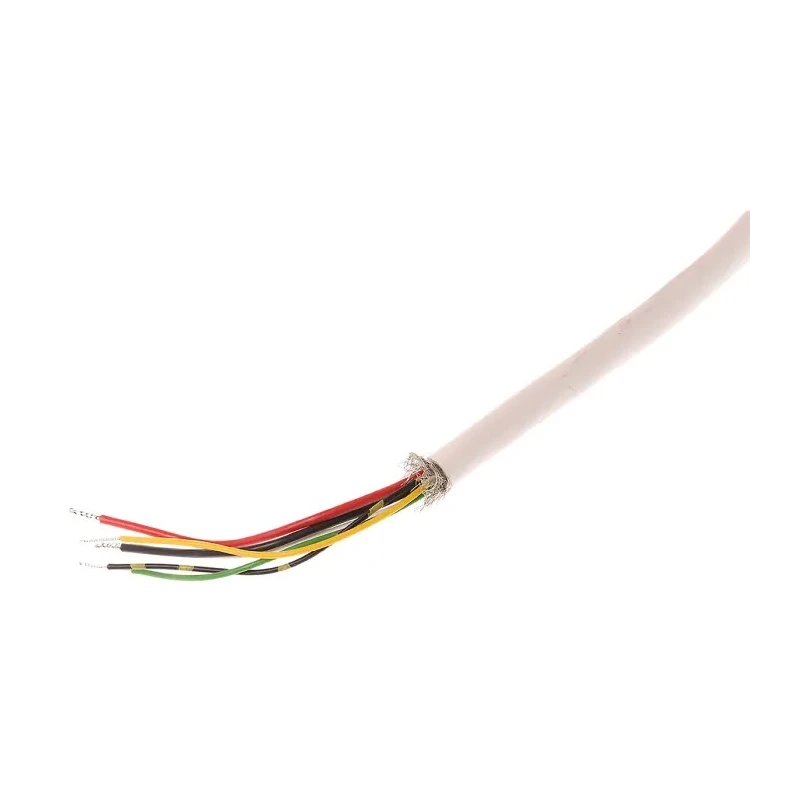

Terminal type	Cable
Pulses per Revolution	100ppr
Standards/Approvals	UL, CE
Maximum Supply Voltage	30V dc
Overall Depth	58mm
Encoder Technology	Incremental
Maximum Revolutions	10000rpm
Output Signal Type	Push Pull
Encoders	OptoAsic technology for greater reliability
Pulse shape	Square wave, 1:1 duty cycle
Kubler Incremental Encoder, 100 ppr, Push Pull SignalBrand	Kubler

Key Features

Features a hollow shaft of 12 mm diameter for versatile mounting.
Utilizes Push Pull output signal for reliable high-speed operation.
IP65, IP64, and IP67 rated for robust dust and water resistance.
Maximum rotational speed up to 10,000 rpm for high-performance applications.

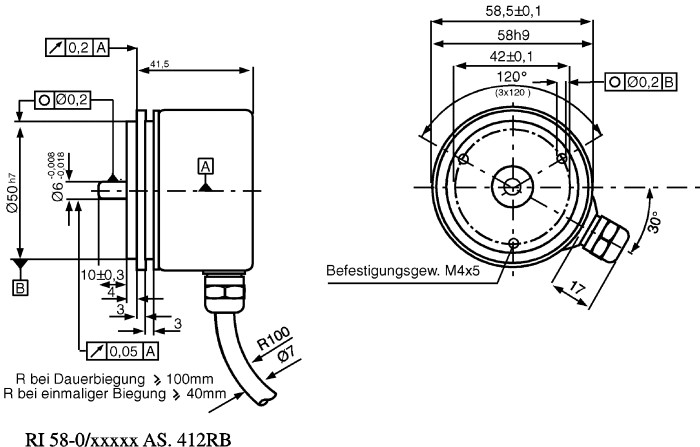

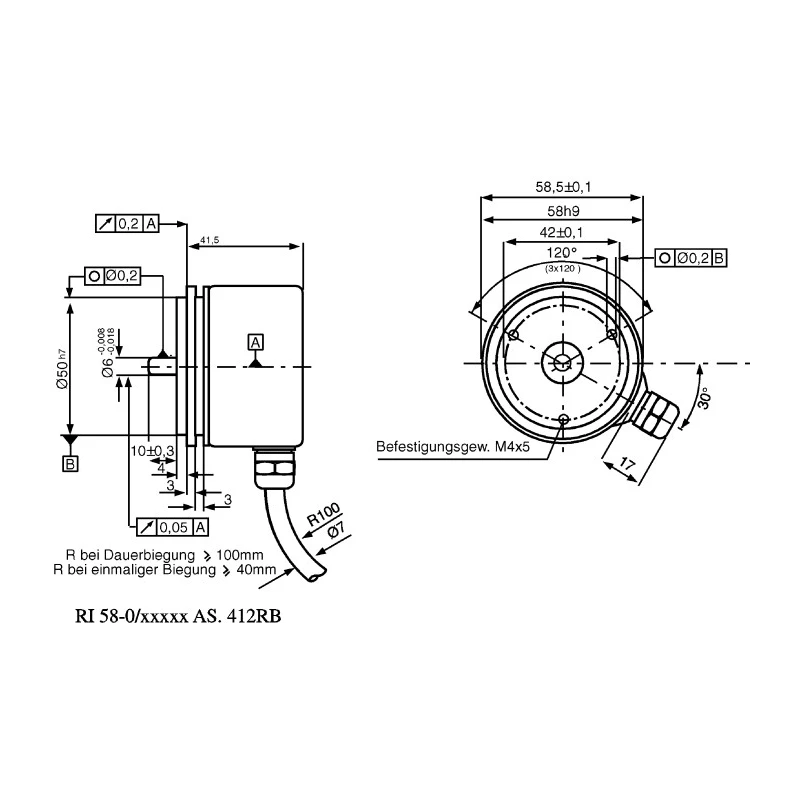

Compact dimensions with overall width, height, and depth around 57.5 to 58 mm.
Operating temperature range from -10°C to 70°C suitable for industrial environments.
Flange mounting type ensures secure installation.
Switching frequency supports up to 300 kHz for fast response.

Product Description

Hengstler RS0-550-172 RI58 Series Incremental Encoder is an expertly designed incremental rotary encoder optimized for industrial automation and motion control applications. It operates at 30V DC and produces 100 pulses per revolution, facilitating precise position and speed feedback in control systems.

This encoder incorporates a 12 mm hollow shaft which enhances flexibility in mounting options. Its robust IP65, IP64, and IP67 ratings provide excellent protection against dust, water, and harsh environmental conditions, making it ideal for rugged industrial settings.

Designed to handle maximum speeds up to 10,000 rpm with a switching frequency of 300 kHz, it supports demanding applications requiring high-frequency signal processing. The Push Pull output stage ensures a stable signal suitable for various electrical control circuits.

Featuring OptoAsic technology, this encoder offers superior reliability over conventional models. The pulse shape is a square wave with a perfect 1:1 duty cycle, contributing to high accuracy in data readings.

Flange mounting facilitates straightforward mechanical integration. Operating temperature ranges from -10°C to 70°C, ensuring consistent performance across diverse environments. Hollow shaft 12 mm diameter suitable for integration with various shafts.

IP Rating of IP64, IP65, and IP67 offers exceptional ingress protection. Supports rotary speeds up to 10,000 rpm. Push Pull output signal delivers high signal integrity. Compact dimensions (approx. 57.5 mm width and height, 58 mm depth) save space in assembly.

OptoAsic technology enhances operational reliability and longevity. Switching frequency rated at 300 kHz for fast spindle monitoring. Tested and approved to UL and CE standards, ensuring compliance.

This Incremental Encoder from Hengstler is suitable for a wide range of industrial, manufacturing, and automation applications including robotics, CNC machines, packaging, and process control systems.

Explore the Hengstler encoder range and related motion control sensors on EnvMart to find components optimized for precision and durability in automation technology.
