Hengstler RI38 Series Incremental Encoder 30V DC, 360 PPR, Push Pull Signal, 6 mm Shaft 0529103

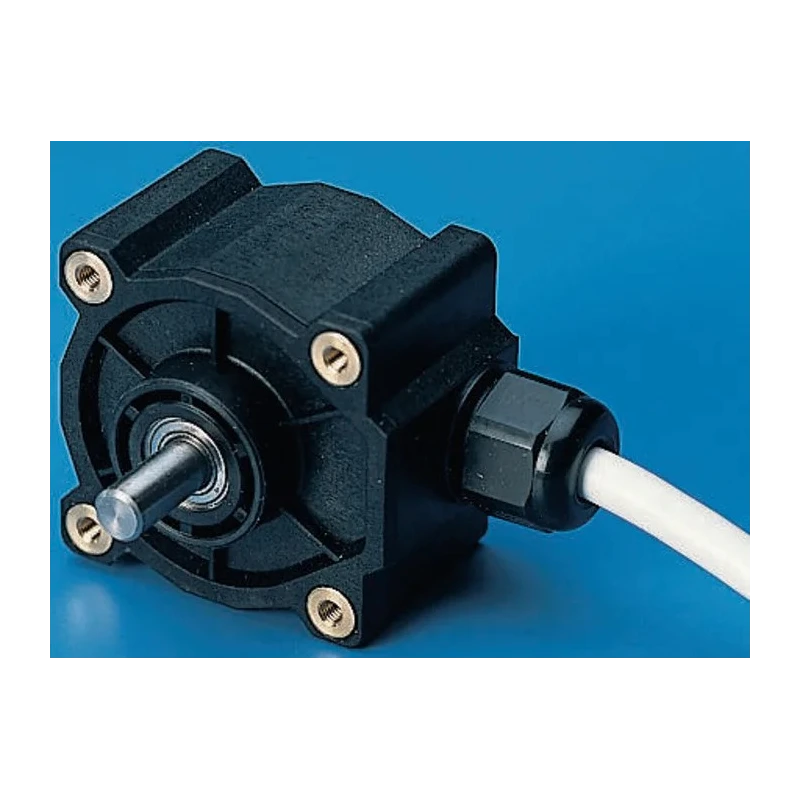

Hengstler model 0529103 is a RI38 Series incremental encoder engineered for precision motion control applications. It operates at a maximum supply voltage of 30V DC, producing 360 pulses per revolution with a push pull output signal type. The encoder features a 6 mm shaft diameter and a flange mount design, facilitating universal installation with mounting faces both front and rear.

This Incremental Encoder incorporates OptoAsic technology, enhancing reliability and shielding against electrical and electromagnetic interference, making it suitable for demanding industrial environments. It uses durable ball bearing rollers that provide low torque and extended service life, essential for continuous operation in manufacturing, automation, and control systems.

The encoder body is constructed from fibreglass-reinforced plastic, combining robustness with lightweight design. Its IP50 rating protects internal components from dust ingress in controlled environments. It supports high rotational speeds up to 10,000 RPM with a switching frequency of 200 kHz, ensuring responsive and accurate motion feedback.

With a pulse shape emitting square wave signals at a 1:1 duty cycle, this device guarantees precise positional input for downstream control electronics. The radial terminal type simplifies connections, and the flange mount facilitates easy and secure mechanical integration. Operational temperature spans from -10°C to 60°C, allowing use in a wide range of industrial applications.

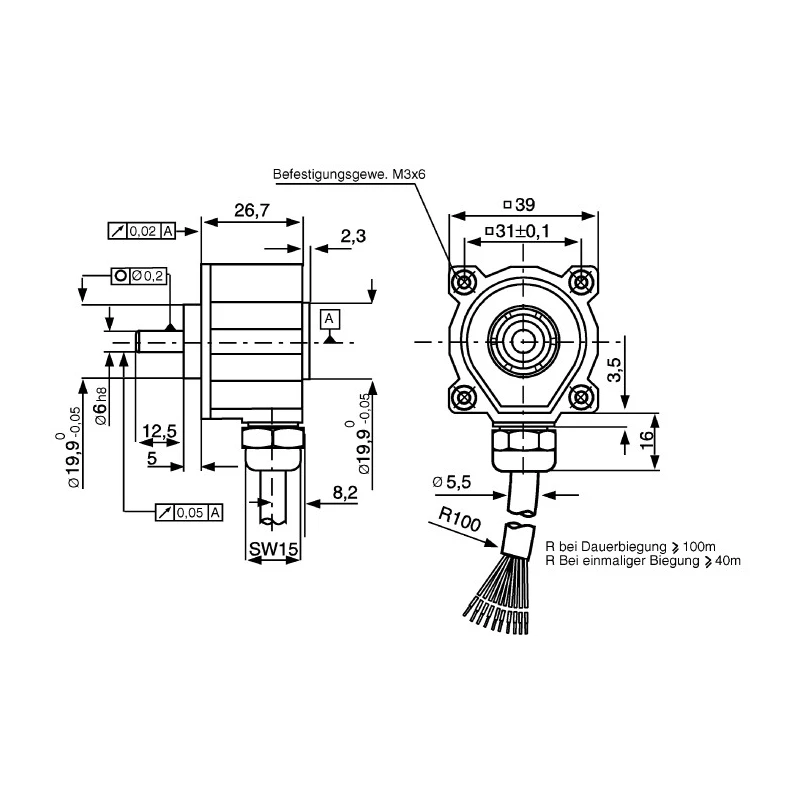

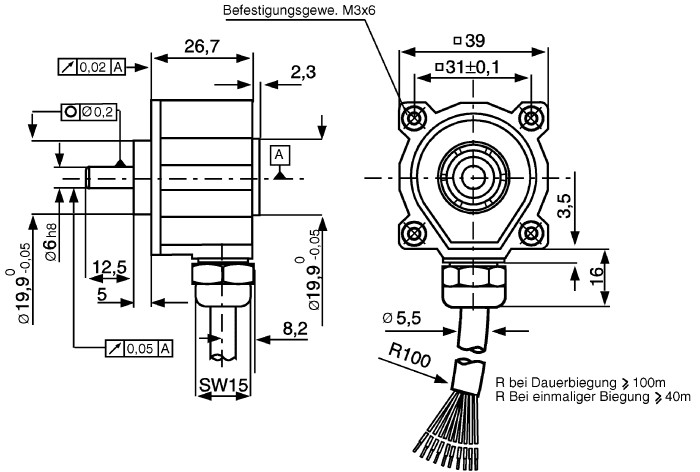

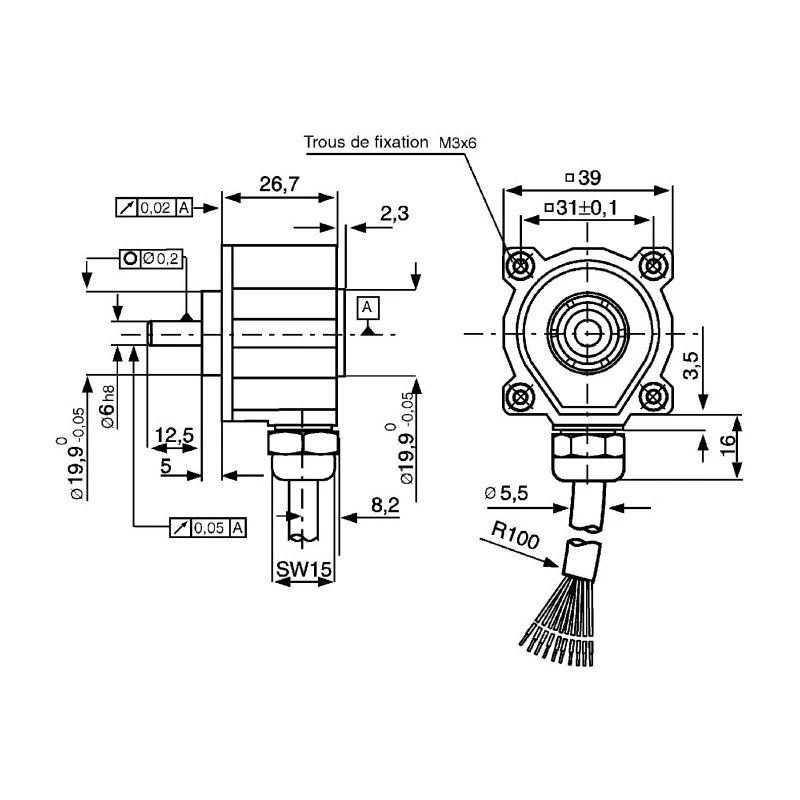

Dimensions include an overall height and width of 44.2 mm with a depth of 39 mm, making it compact and adaptable for various machine configurations. The product is UL and CE certified, manufactured in Germany under stringent quality standards, ensuring reliability and compliance with industrial safety norms.

Features OptoAsic technology for enhanced reliability and protection against electromagnetic interference. Equipped with ball bearing rollers for low torque operation and long service life. The encoder is IP50 rated, suitable for use in controlled industrial environments.

Maximum rotational speed up to 10,000 RPM with a switching frequency of 200 kHz. Flange mount type with radial terminal connection for secure installation. Square wave pulse shape with 1:1 duty cycle ensuring accurate signal output.

Operating temperature range from -10°C to 60°C for robust performance in various conditions. Compact dimensions with an overall height and width of 44.2 mm and a depth of 39 mm. Manufactured in Germany adhering to UL and CE standards.

Ideal for use in industrial automation, manufacturing machinery, robotics, and motion control systems requiring precise incremental position feedback. Suitable for applications demanding robust signal integrity and durability under continuous operation.
