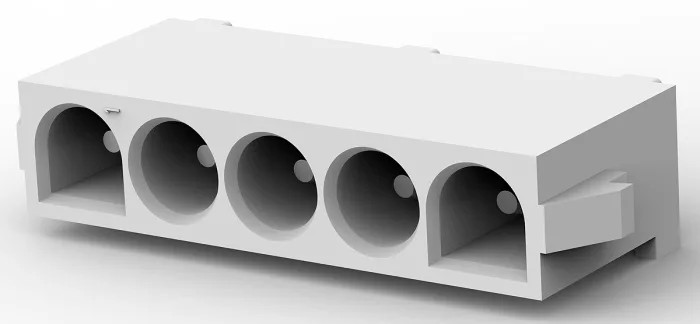

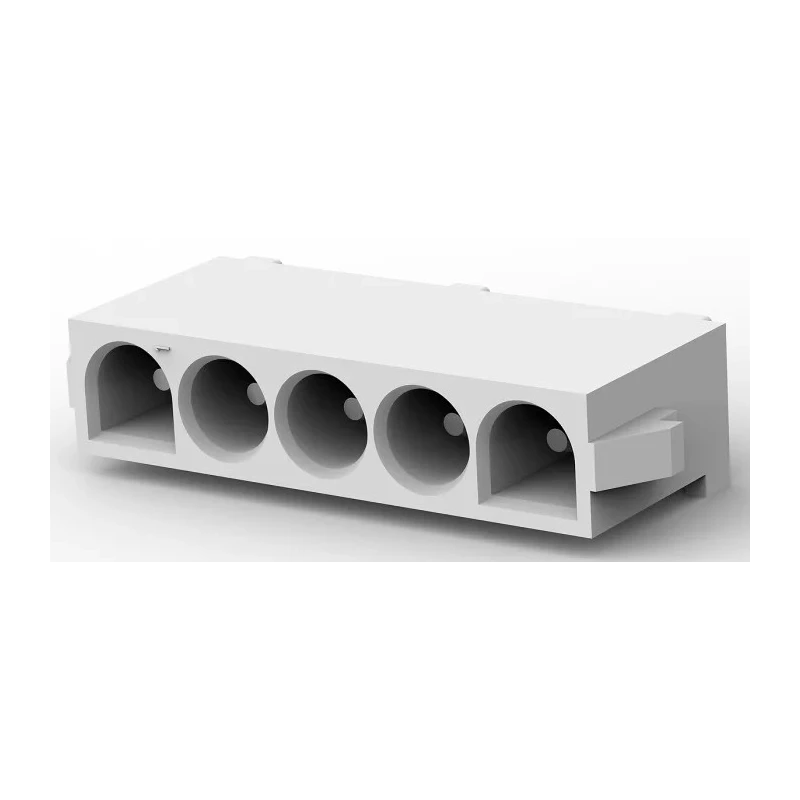

TE Connectivity Universal MATE-N-LOK Series Straight Through Hole PCB Header 5 Contacts 6.35 mm Pitch 1 Row 640466-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 19A |
| Model | 640466-1 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 6.35mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- The header features a single row configuration for compact PCB mounting.
- Constructed with shrouded nylon housing ensuring secure and durable connector protection.
- Contacts are male gender made of phosphor bronze with tin plating for excellent conductivity and corrosion resistance.
- Supports a current rating of 19 A and a voltage rating up to 600 V for demanding electronic applications.
- Designed for through-hole mounting with solder termination type for robust mechanical and electrical connection.
- Operates safely within a temperature range of -40°C to 105°C suitable for harsh environments.
- Tail pin length of 3.56 mm optimizes solder joint reliability and assembly.
- Ideal for industrial, electronics manufacturing, and PCB assembly applications requiring high-quality pin header connectors.
Product Description
TE Connectivity 640466-1 Universal MATE-N-LOK Series Straight Through Hole PCB Header offers a reliable wire-to-board connector solution with 5 male contacts arranged in a single row with a 6.35 mm pitch. Manufactured with shrouded nylon housing, this connector ensures secure mating and protection against mechanical damage.
The contacts are made of phosphor bronze and plated with tin, combining excellent electrical conductivity with corrosion resistance. Suitable for high current up to 19 A and voltage ratings reaching 600 V, this header supports a wide range of electronic and industrial applications, including control systems, instrumentation, and power distribution on PCBs.
Designed for through-hole mounting, the connector features solder termination for strong mechanical stability and reliable electrical connections on printed circuit boards. The operating temperature range from -40°C to 105°C allows usage in demanding environmental conditions.
The tail pin length is 3.56 mm, balancing ease of assembly and solder joint integrity. The single row, straight orientation facilitates straightforward PCB layout and connector insertion.
This product is ideal for use in industrial machinery, electronic assembly lines, communication devices, and other electronic equipment requiring secure and high-performance PCB connections.
The header features a single row configuration for compact PCB mounting. Constructed with shrouded nylon housing ensuring secure and durable connector protection. Contacts are male gender made of phosphor bronze with tin plating for excellent conductivity and corrosion resistance.
Supports a current rating of 19 A and a voltage rating up to 600 V for demanding electronic applications. Designed for through-hole mounting with solder termination type for robust mechanical and electrical connection. Operates safely within a temperature range of -40°C to 105°C suitable for harsh environments.
Tail pin length of 3.56 mm optimizes solder joint reliability and assembly. Ideal for industrial, electronics manufacturing, and PCB assembly applications requiring high-quality pin header connectors. Explore the extensive range of PCB Headers available on EnvMart for compatible connectors and accessories from TE Connectivity and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 19 A and a voltage rating of up to 600 V, making it suitable for demanding electronic applications.
The connector features a pitch of 6.35 mm and includes 5 male contacts arranged in a single row.
It is constructed with a shrouded nylon housing, and the contacts are made of phosphor bronze with tin plating for excellent conductivity and corrosion resistance.
This unit is designed for through-hole mounting with a solder termination type, ensuring robust mechanical and electrical connections.
The tail pin length of this header is 3.56 mm, which optimizes solder joint reliability and assembly.
It utilizes a wire-to-board connector system, facilitating reliable connections between wires and printed circuit boards.
Yes, it is ideal for industrial machinery, electronic assembly lines, and other electronic equipment requiring secure PCB connections.
The orientation of this model is straight, which facilitates straightforward PCB layout and connector insertion.
Specific certifications or standards are not mentioned in the provided information.
The product details do not specify any available variants or combinations; it is presented as a single configuration.
The country of origin for this header is India.
