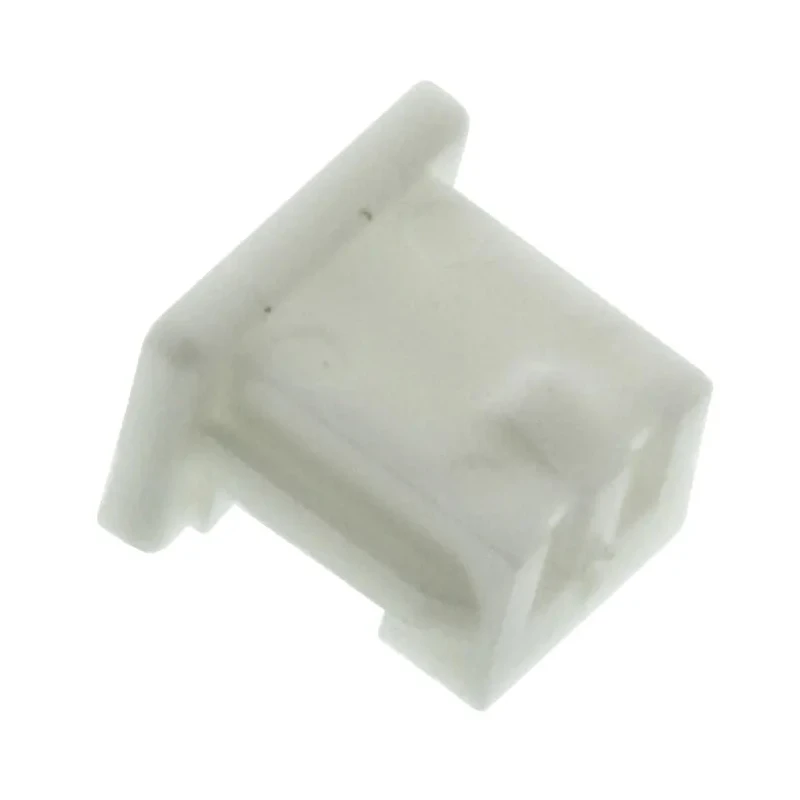

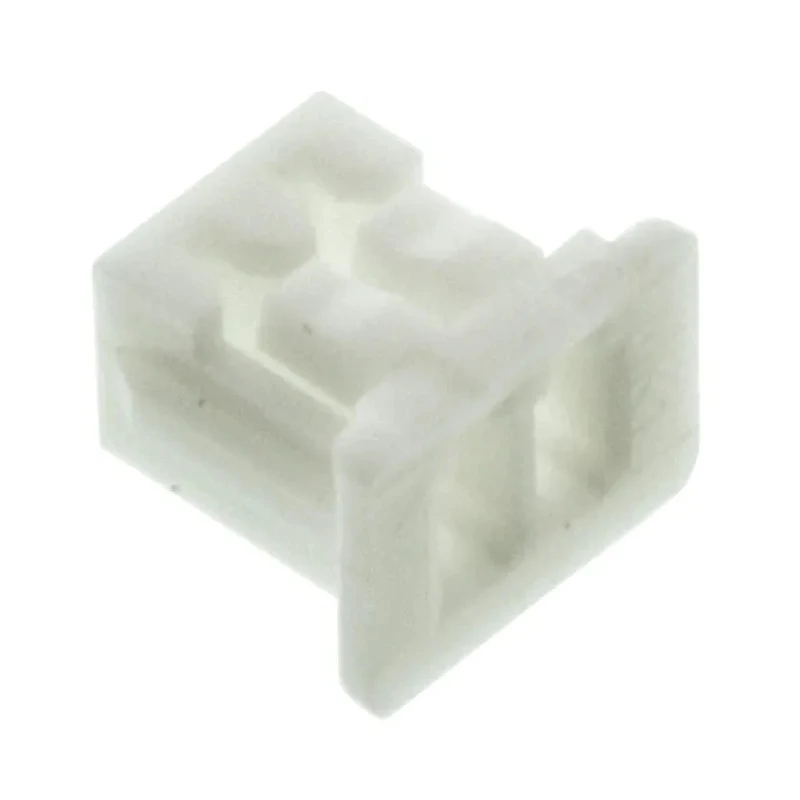

Molex PicoBlade Female Connector Housing 1.25 mm Pitch 2 Way 1 Row Straight 51021-0200

Molex 51021-0200 PicoBlade Female Connector Housing is designed for wire-to-wire and wire-to-board connections, providing a compact solution with a 1.25 mm pitch and two contacts in a single row straight configuration.

This housing is made from polybutylene terephthalate, a polyester material known for superior electrical insulation and impact resistance, making it suitable for demanding industrial environments.

The connector features a compact footprint of 4.25 mm length, 3.2 mm width, and 3.95 mm depth, optimized for space-constrained PCB layouts. Its straight orientation allows convenient mounting on printed circuit boards.

Engineered to operate reliably over a broad temperature range from -40°C to +85°C, this connector housing is ideal for automotive, agricultural, household appliances, and medical device applications.

Polarised terminal points prevent incorrect insertion protecting the ports from damage. Each contact supports a maximum current between 0.8 and 1 ampere, suitable for medium-scale electrical applications.

Manufactured in Japan, this connector is part of the PicoBlade series known for its compact design, friction lock mechanism, and robust electrical performance. Compact 1.25 mm pitch for high-density PCB use. Two contacts in a single-row straight housing.

Polybutylene terephthalate material for insulation and durability. Broad operational temperature range from -40°C to +85°C. Polarised terminals to ensure correct connection. Rated max current per contact 0.8 to 1 amp. Compact dimensions of 4.25x3.2x3.95 mm.

Ideal for automotive, agricultural, household, and medical applications.

This connector housing is a trusted choice in electronics for maintaining reliable, space-saving connections in various industrial and commercial environments. Explore more Molex Connector solutions on EnvMart for your project requirements.
