ITW Switches 59 Series Illuminated Miniature Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPST Green LED 59-531G

Name: ITW Switches 59 Series Illuminated Miniature Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPST Green LED 59-531G
Brand: ITW Switches
SKU: 180190
Price: 18.2 USD
Availability: InStock



Category Push Button Switches Brand ITW Switches Condition New

Specifications

Country of Origin	Belize
Brand	ITW Switches
Model	59-531G
IP Rating	IP67
Mount Type	Panel
Series	59
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-35°C

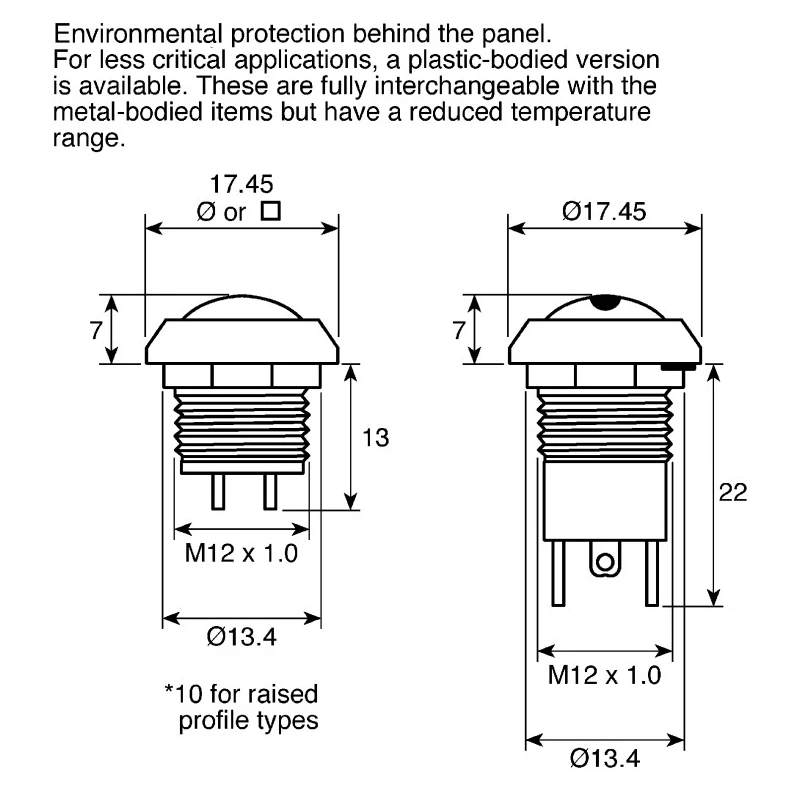

Panel Cutout Size	13.6 mm
Terminal type	Wire
Standards/Approvals	CSA, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	125V
Actuator Style	Button
Switch Contact Current	400mA
Contact AC Voltage	125V ac

Key Features

Compact miniature design suitable for rugged industrial environments.
Momentary switch operation ensures temporary contact engagement.
Panel mounted with a 13.6 mm cutout size for easy installation.
Green LED illumination provides clear status indication.
Single Pole Single Throw (SPST) contact configuration for simple on-off control.
Panel sealed to IP67 rating, protecting against dust and immersion.
Wide operating temperature range from -35°C to 85°C.
High contact ratings with 125 V AC/DC voltage and 400 mA current capacity.

Product Description

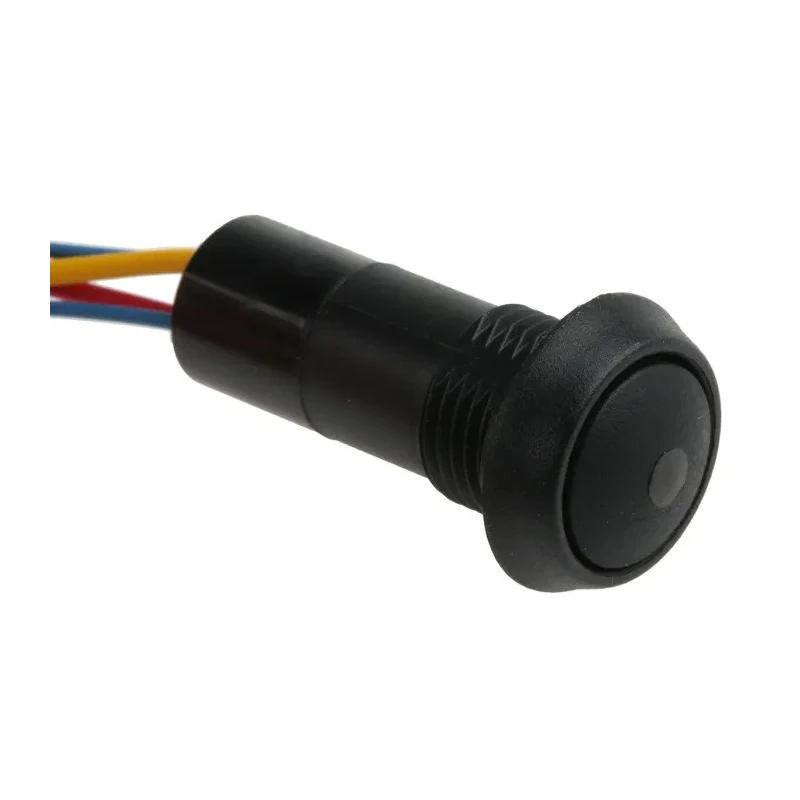

ITW Switches 59-531G is an illuminated miniature push button switch designed for momentary operation and panel mounting with a 13.6 mm cutout. It features a single pole single throw (SPST) contact configuration and a green LED for status illumination. This switch is ideal for demanding industrial and commercial applications requiring reliable momentary switching with clear visual indication.

The robust pushbutton switch offers an IP67 sealing which protects it from dust ingress and temporary immersion in water, making it suitable for harsh environments including military, instrumentation, communications, data entry devices, and mass transport controls. The actuator is black and button styled to provide ergonomic feedback with durable materials ensuring longevity.

Operating temperatures range from -35°C to 85°C, making it adaptable to a broad range of usage scenarios. The switch handles contact ratings of 125 V AC/DC and 400 mA current, complying with CSA and UL standards for safety and performance.

Its construction provides high environmental resistance with options of zinc alloy or polybutylene terephthalate body material, suitable for high-wear applications. The illuminated option uses a green LED indicator, enhancing operational status visibility in panel controls.

Compact miniature design suitable for rugged industrial environments. Momentary switch operation ensures temporary contact engagement. Panel mounted with a 13.6 mm cutout size for easy installation. Green LED illumination provides clear status indication.

Single Pole Single Throw (SPST) contact configuration for simple on-off control. Panel sealed to IP67 rating, protecting against dust and immersion. Wide operating temperature range from -35°C to 85°C. High contact ratings with 125 V AC/DC voltage and 400 mA current capacity.

Durable actuator colour black and robust button style actuator. Compliance with CSA and UL approvals ensuring safety and reliability.

This switch is well suited for industrial, communications, military, instrumentation, and transportation panel control applications requiring dependable operation and status indication. Explore the full ITW Switches range and related products for your electrical and automation needs at EnvMart.
