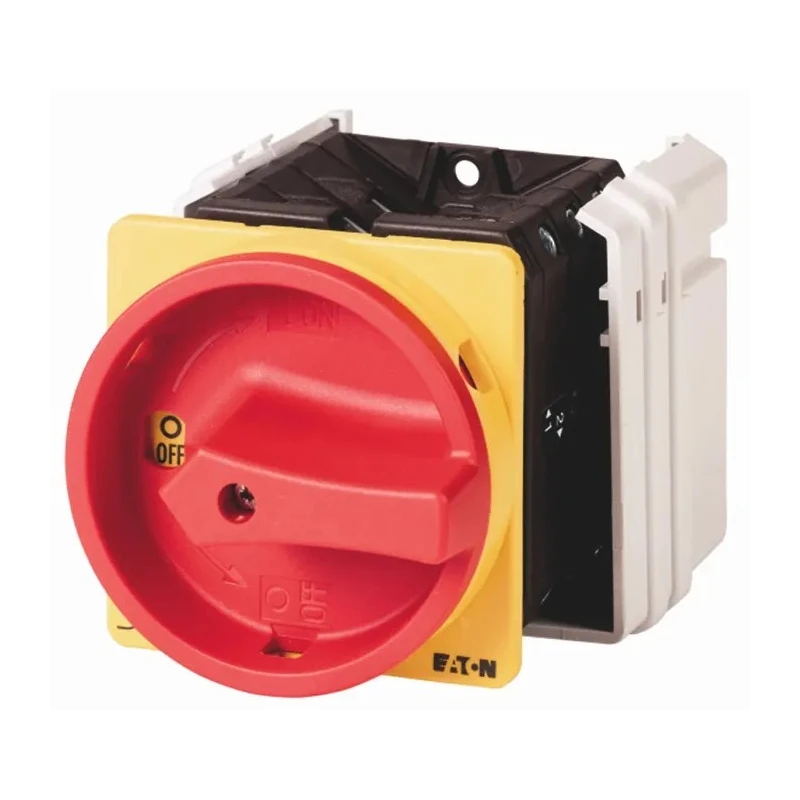

Eaton 2-Pole Panel Mount Isolator Switch IP65, 520A, 22 kW T5B-1-102/EA/SVB
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 88mm |
| Model | IP65 |
| Depth | 54mm |
| IP Rating | IP65 |
| Width | 88mm |
| Mount Type | Panel Mount |
| Series | T5B |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 520A |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Handle Colour | Red |
| Number of Poles | 2 |
| Standards/Approvals | IEC, UL, CSA |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 230V ac |
| Switching Power | 22kW |
| Eaton 3-Pole Flush Isolator Switch -, IP65, 63A, 30 kWBrand | Eaton |
| Eaton Bussmann Series Non Resettable Fuse 45A, 160V dcBrand | Cooper Bussmann |
Key Features
- Rated uninterrupted current up to 520A for robust industrial applications.
- IP65 thermoplastic enclosure protects against dust and low-pressure water jets.
- Panel mount design with red rotary handle and yellow locking ring for safe operation.
- Suitable for single electrical phase systems and manual emergency shutdown.
- Auxiliary contacts available for enhanced circuit control and monitoring.
- Rated switching AC voltage of 230V and DC voltage of 60V for versatile use.
- Operates safely within temperature range of -25°C to 50°C.
- Constructed to IEC, UL, and CSA standards ensuring compliance and reliability.
Product Description
Eaton T5B-1-102/EA/SVB 2-Pole Panel Mount Isolator Switch, rated IP65, 520A, and 22 kW switching power, is engineered to provide reliable and safe manual isolation of electrical circuits in industrial, commercial, and automation environments.
This panel mount isolator switch features a thermoplastic high-impact surface mounting enclosure compliant with IP65 ingress protection, which safeguards the internal components against dust and water jets from all directions. The rotary handle with a yellow locking ring enables manual disconnection of power, ensuring safe maintenance and emergency shutdown.
Designed for single-phase electrical systems, this switch is rated for uninterrupted current up to 520 amperes and supports switching voltages up to 230V AC and 60V DC. The device operates safely in temperatures ranging from -25°C to 50°C, making it suitable for diverse environments.
This non-fused isolator switch uses a rotary mechanism to break the circuit without fuses, commonly used for isolating circuit breakers, transmission lines, transformers, and automation equipment. Auxiliary contacts are available to enhance control and signaling functions.
Rated uninterrupted current up to 520A for robust industrial applications. Durable IP65 thermoplastic enclosure protects against dust and water ingress. Manual rotary handle with lockable yellow ring ensures secure operation and maintenance safety.
Compatible with single electrical phase systems for multiple industrial applications. Auxiliary contacts available for additional circuit control and monitoring capabilities. Electrical ratings include 230V AC and 60V DC switching voltages.
Operating temperature range of -25°C to 50°C supports variable climate conditions. Compact size for efficient panel mounting with dimensions of 88mm x 88mm x 54mm. Certified to IEC, UL, and CSA standards for quality assurance.
Common accessories include parts 262-3784, 219-1445, and 219-1439 for extended functionality.
This Eaton Isolator Switch is widely employed in electrical distribution, industrial automation, manufacturing plants, and commercial electrical panels to enhance safety and operational efficiency. Its robust construction coupled with compliance to international standards makes it a dependable choice for isolating circuits during maintenance or emergency conditions.
Explore other isolator solutions and related electrical components for integrated system design and improved safety compliance available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolator switch has a maximum uninterrupted current rating of 520A, making it suitable for robust industrial applications.
This model has an IP65 rating, which means it is protected against dust and low-pressure water jets, ensuring reliable operation in various environments.
The dimensions of the switch are 88mm in length, 88mm in width, and 54mm in depth, allowing for efficient panel mounting.
It supports a switching AC voltage of 230V and a switching DC voltage of 60V, providing versatility for different electrical systems.
The switch operates safely within a temperature range of -25°C to 50°C, making it suitable for diverse climate conditions.
It features a manual rotary handle with a red color and a yellow locking ring, ensuring secure operation and maintenance safety.
Yes, this isolator switch is designed for compatibility with single electrical phase systems, making it suitable for various industrial applications.
The switch is certified to IEC, UL, and CSA standards, ensuring compliance and reliability in its construction and operation.
Auxiliary contacts are available for enhanced circuit control and monitoring, providing additional functionality for users.
The rated switching power of this model is 22 kW, allowing it to handle significant electrical loads effectively.
It uses screw type terminals for secure electrical connections, facilitating installation and maintenance.
Common accessories include parts 262-3784, 219-1445, and 219-1439, which can enhance the functionality of the switch.
