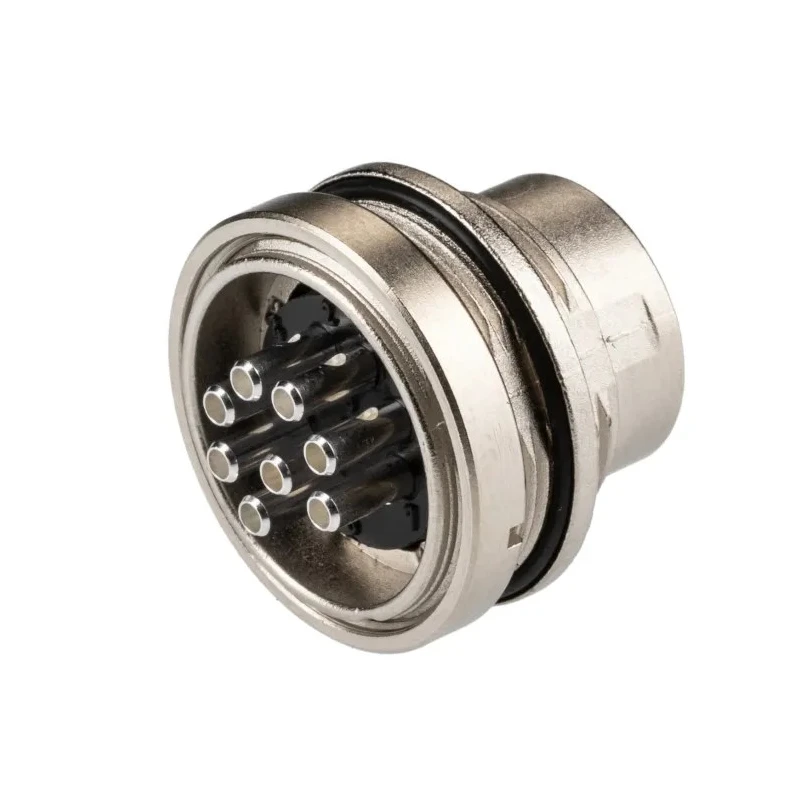

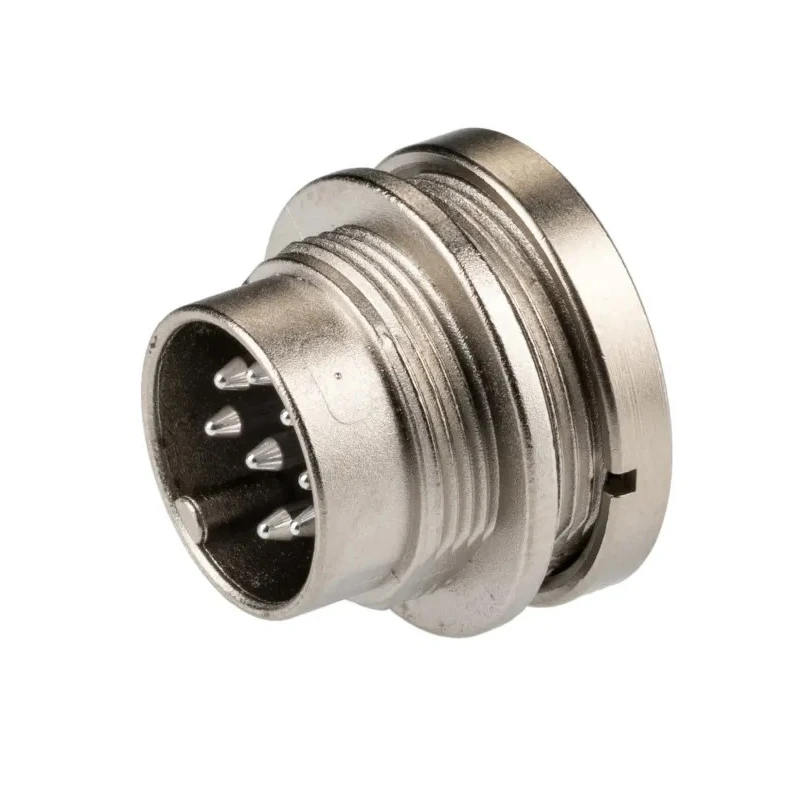

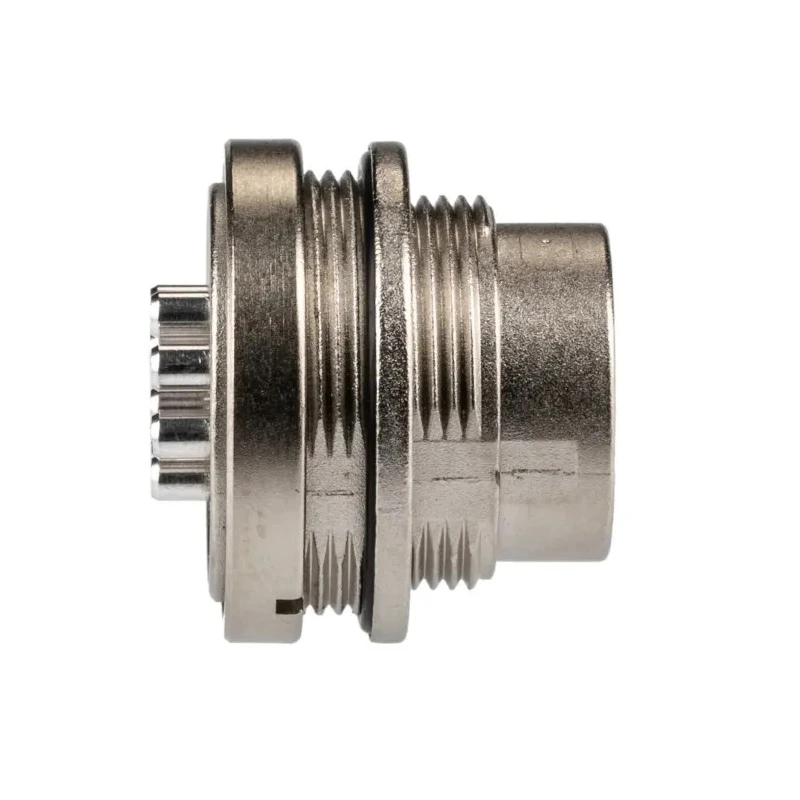

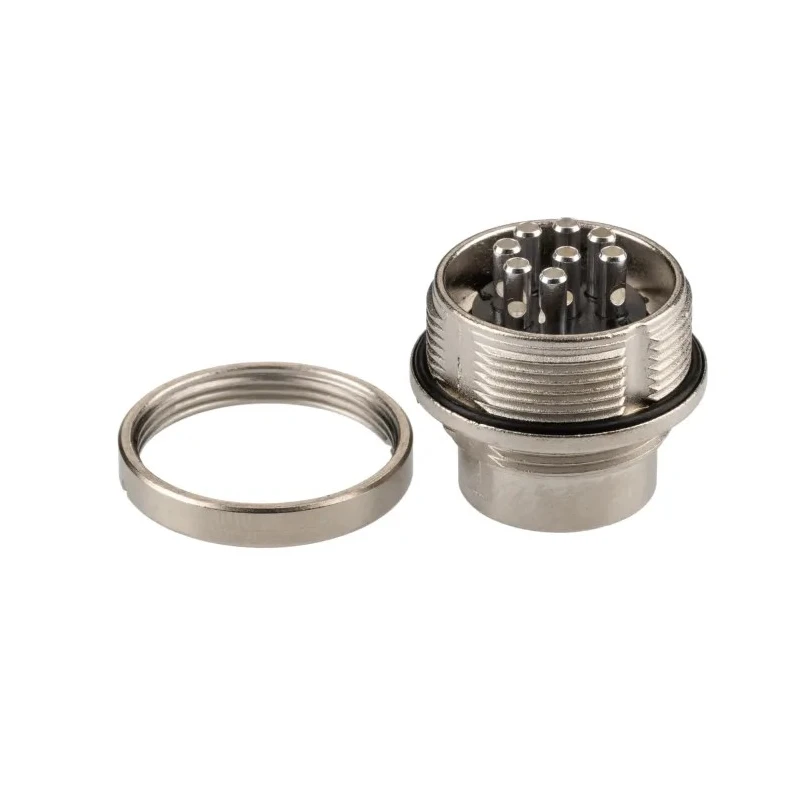

binder Circular Connector 8 Contacts Panel Mount M16 Plug Male IP67 IP68 723 Series 09-0173-00-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP67, IP68 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 723 |
| Termination Type | Solder |
| Maximum Operating Temperature | 95°C |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | UL |
| Pole Format | 8 |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Contact Gender | Male |

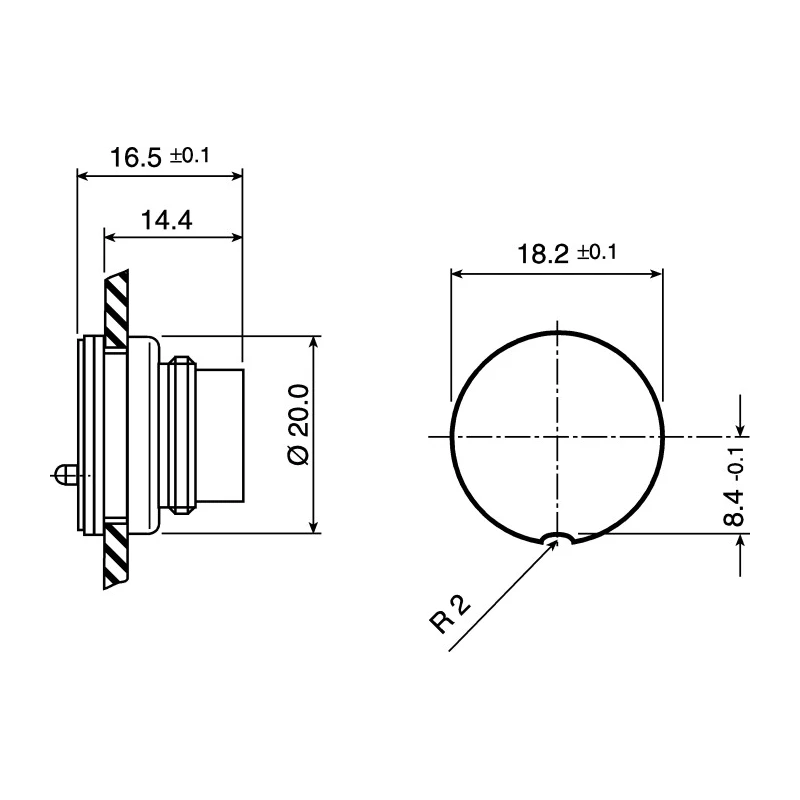

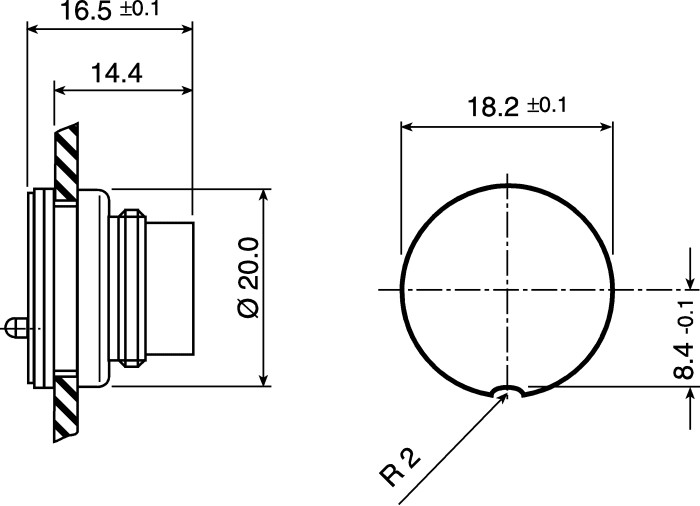

| Shell Size | 18.5 mm |
| Mating Type | Screw |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- Features 8 solder-connected contacts for secure signal and power transmission.
- Constructed with brass contacts plated in silver for excellent conductivity and corrosion resistance.
- Rated for continuous 5 amp current suitable for moderate power circuits.
- Operates reliably in temperatures ranging from -30°C to 95°C.
- Housing is die-cast zinc providing mechanical strength and durability.
- Uses screw-type coupling for mechanical retention and secure mating.
- Intended for panel mount applications with an M16 size shell and straight orientation.
- Certified to UL standards ensuring conformity to safety requirements.
Product Description
binder 09-0173-00-08 Circular Connector is an industrial-grade panel mount M16 connector plug with 8 solder-terminated contacts. Rated IP67 and IP68, it provides excellent protection against dust ingress and water immersion, making it ideal for harsh industrial environments.
This male connector features a die-cast zinc housing for robust mechanical protection and is designed to operate continuously up to 5 amperes of current. The brass contacts plated with silver ensure low resistance electrical performance and corrosion resistance.
Operating temperature ranges from -30°C to a maximum of 95°C, allowing it to withstand temperature extremes commonly encountered in industrial settings. It employs a screw-type mating system to guarantee secure and reliable connections in panel-mounted electrical control panels or machine-tool wiring.
The connector complies with UL standards, providing certified safety and reliability. Its 18.5 mm shell size and straight orientation make installation straightforward in industrial automation applications such as sensor and actuator connections, electrical distribution within mobile equipment panels, and control interface wiring.
Manufactured in Germany, this binder 723 Series connector represents quality and durability for demanding applications. It is a suitable choice for automation control panels requiring waterproof and dustproof circular connectors for signal and power transmission.
Features 8 solder-connected contacts for secure signal and power transmission. Constructed with brass contacts plated in silver for excellent conductivity and corrosion resistance. Rated for continuous 5 amp current suitable for moderate power circuits.
Operates reliably in temperatures ranging from -30°C to 95°C. Housing is die-cast zinc providing mechanical strength and durability. Uses screw-type coupling for mechanical retention and secure mating. Intended for panel mount applications with an M16 size shell and straight orientation.
Certified to UL standards ensuring conformity to safety requirements. Designed as a male plug connector for industrial sensor, actuator, and control panel wiring. Manufactured in Germany with high-quality materials for demanding environments.
This connector is categorized under Industrial Circular Connectors on EnvMart, suitable for industries such as manufacturing, automation, and heavy machinery requiring rugged and reliable electrical connections. Explore more binder connectors and related products on EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for continuous use at 5 amperes, making it suitable for moderate power circuits.
It has IP67 and IP68 ratings, providing excellent protection against dust ingress and water immersion.
This connector operates reliably in temperatures ranging from -30°C to 95°C.
The housing is made of die-cast zinc, while the contacts are brass plated with silver for improved conductivity and corrosion resistance.
It features solder termination for secure electrical connections.
The shell size of this connector is 18.5 mm, designed for panel mount applications.
It employs a screw-type coupling mechanism for mechanical retention and secure mating.
This model has a straight orientation, suitable for various installation scenarios.
Yes, it is certified to UL standards, ensuring conformity to safety requirements.
This connector is manufactured in Germany.
It is intended for use in industrial automation applications, including sensor and actuator connections and control panel wiring.
It features 8 solder-connected contacts, designed for secure signal and power transmission.
