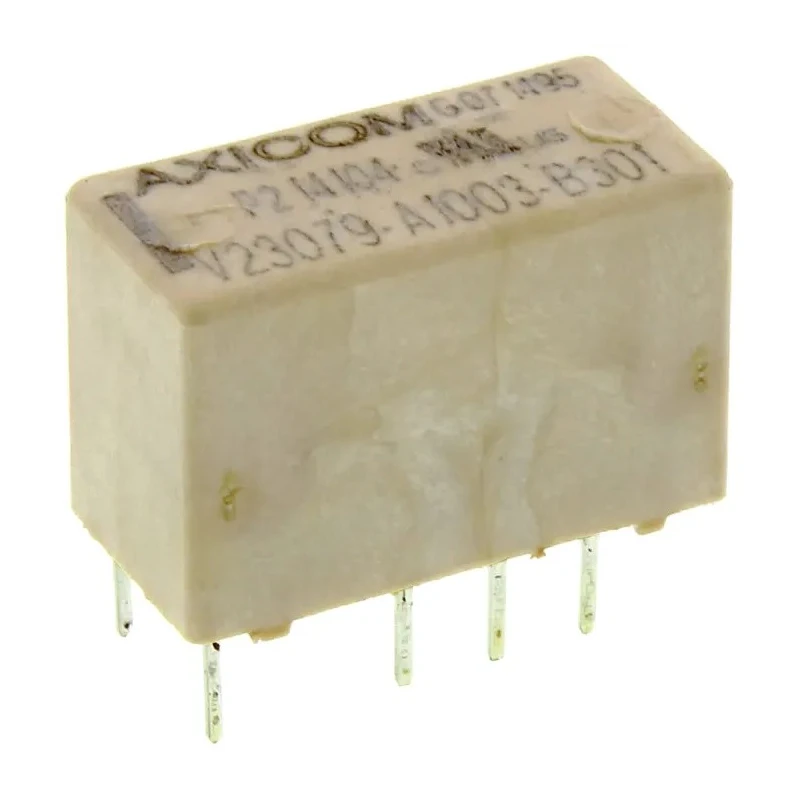

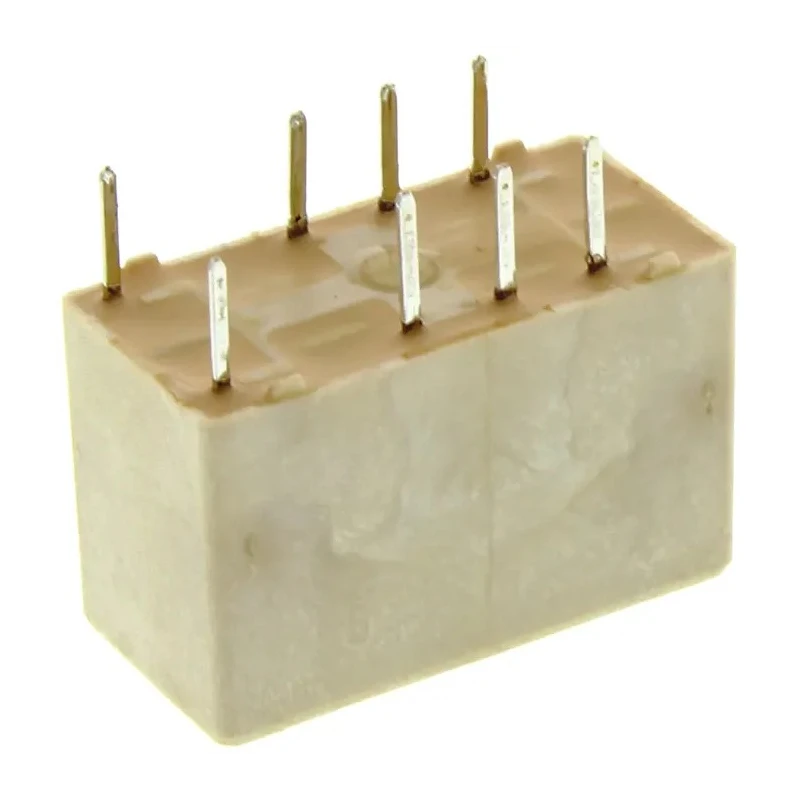

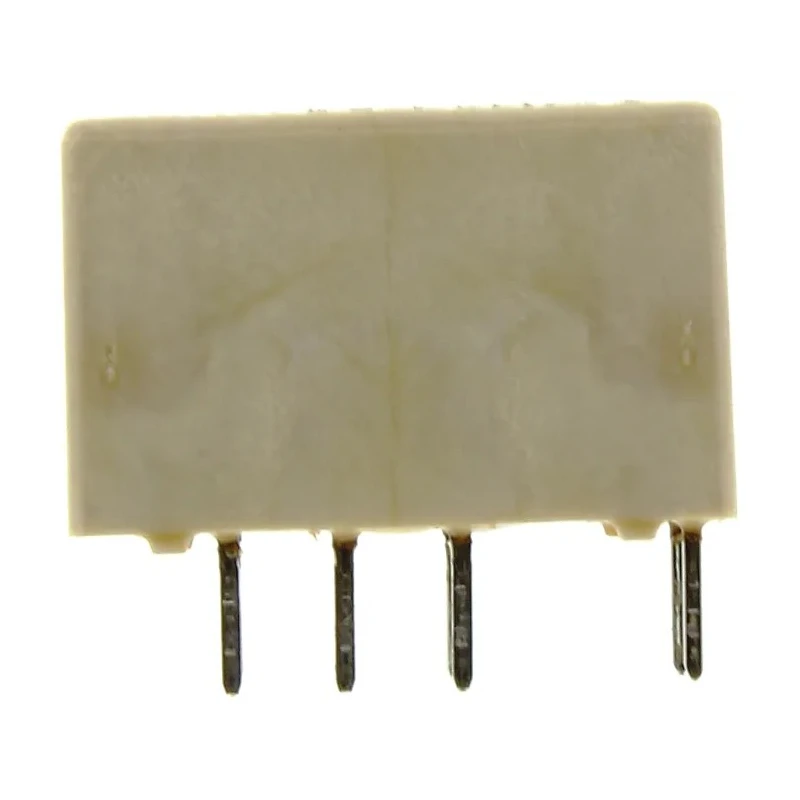

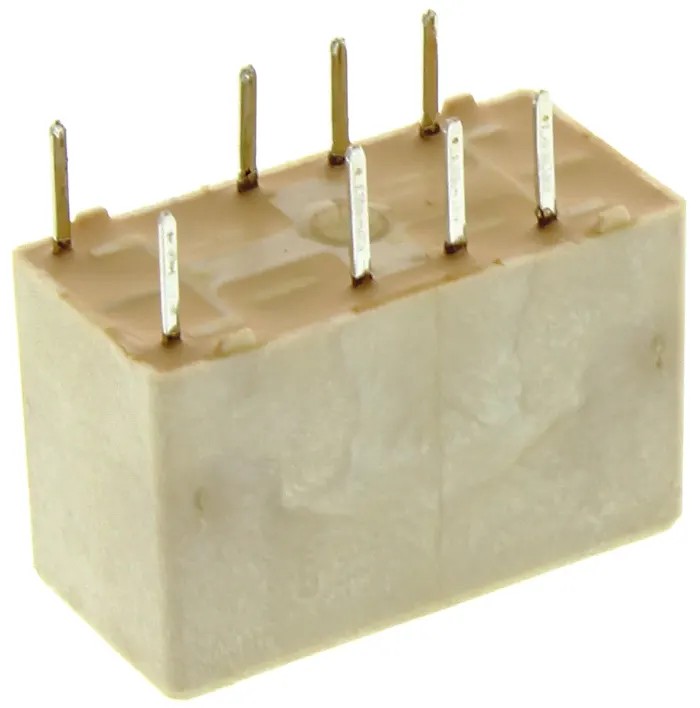

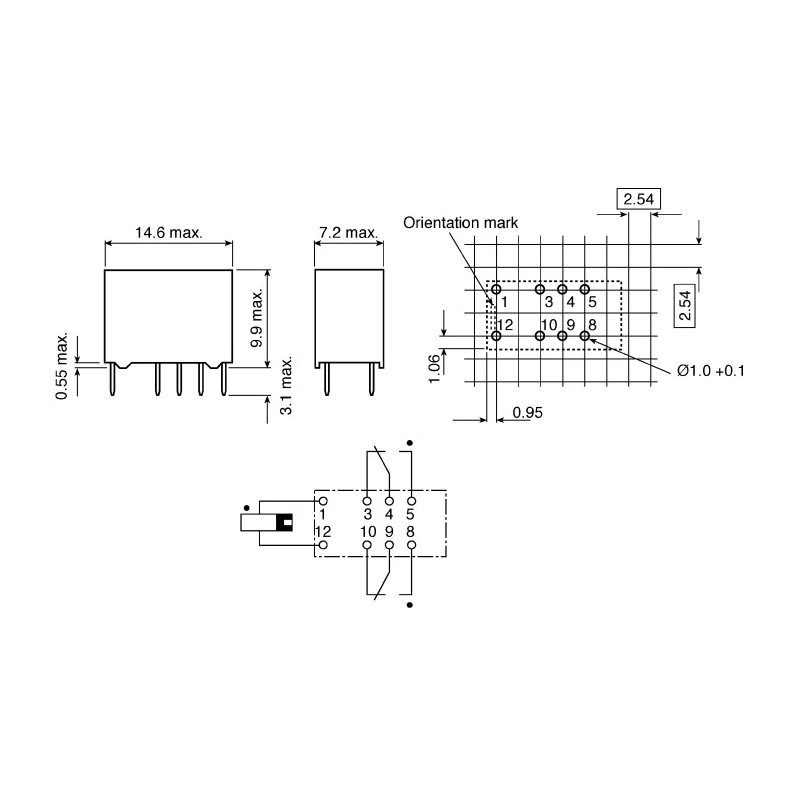

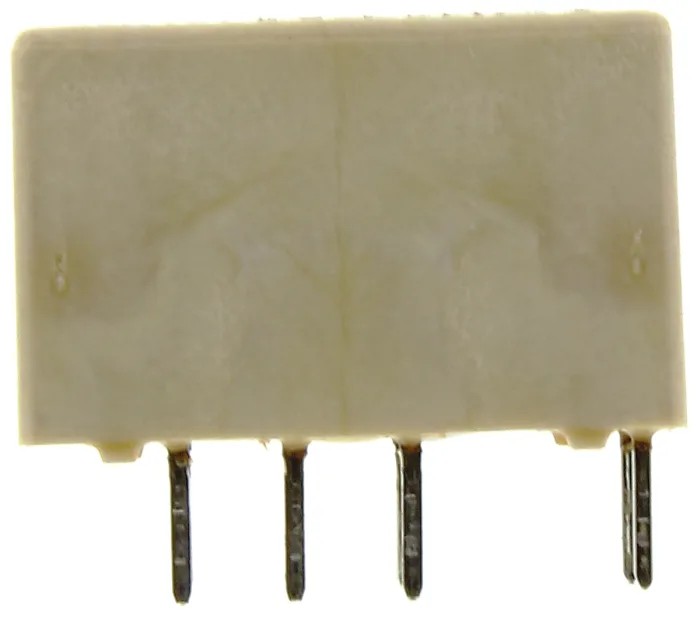

TE Connectivity PCB Signal Relay 12V dc Coil 2A DPDT V23079A1003B301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079A1003B301 |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
| TE Connectivity SPDT PCB Mount Non-Latching Relay, 12V dc CoilBrand | TE Connectivity |
| Panasonic DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2 ABrand | Panasonic |
Key Features
- Miniature P2 series relay designed for high sensitivity and low power consumption.
- Slimline, low profile design suitable for space-constrained PCB applications.
- Bifurcated, gold plated contacts ensure signal integrity and durability.
- Rated switching voltages up to 250V AC and 220V DC for versatile use.
- Wide operating temperature range from -40°C to 85°C for industrial reliability.
- Immersion cleanable and IP67 rated for enhanced environmental resistance.
- Complies with RoHS and flame retardant V-0 classification standards.
- Surge capability meets Telcordia and IEC standards for robust performance.
Product Description
TE Connectivity V23079A1003B301 PCB Signal Relay is a compact, high-performance DPDT signal relay designed for demanding electrical, automation, and telecommunications applications requiring efficient PCB mounting solutions. Operating at a coil voltage of 12V dc and a switching current of 2 amperes, this relay features gold plated, bifurcated contacts that guarantee stable and reliable signal transfer.
The miniature Axicom P2 series relay is engineered for low power consumption with coil power at 140mW and coil resistance of 1000Ω, optimized for sensitive telecom and control equipment. Its narrow form factor (14.5mm length, 7.4mm width, and 9.8mm height) and IP67 rating make it ideal for space-critical designs where environmental protection is essential.
This relay withstands operating temperatures from -40°C up to 85°C, enabling use in harsh industrial environments including communications equipment, consumer electronics such as set-top boxes and HiFi devices, as well as office, control, medical, and automotive applications.
Additional features include immersion cleanability, V-0 flammability classification, and surge resistance compliant with Telcordia TR-NWT-001089 and IEC 60950 standards, ensuring long life and safety in demanding operational conditions. The solder terminal mount type provides secure and easy PCB integration.
Miniature P2 series relay with DPDT contact configuration. 12V dc coil voltage with low coil power consumption. Gold plated, bifurcated contacts for enhanced reliability. Switching voltage: 250V AC, 220V DC; Switching current: 2A.
Wide temperature range: -40°C to 85°C suitable for diverse applications. Immersion cleanable and IP67 rated for environmental resistance. Compliant with RoHS and flame retardant V-0 standards. Surge capability meets Telcordia and IEC 60950 standards.
PCB mount with solder terminals for robust installation. Manufactured in Czech Republic ensuring premium quality.
This product is an excellent choice for industrial, telecommunications, automation, HVAC control, and medical equipment where reliable signal switching and compact form factors are critical. Explore more TE Connectivity products and Signal Relays on EnvMart for comprehensive industry solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 2 amperes.
This model operates at a coil voltage of 12V DC.
The relay has dimensions of 14.5mm in length, 7.4mm in width, and 9.8mm in height.
The maximum operating temperature for this relay is 85°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 1000Ω.
Yes, it has an IP67 rating and can operate in temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
The contacts are made of gold plated material, which ensures reliable signal transfer.
This relay complies with RoHS and has a flame retardant V-0 classification.
The coil power consumption is 140mW.
It uses a PCB mount with solder terminals for installation.
It is designed for use in telecommunications, automation, HVAC control, and medical equipment.
