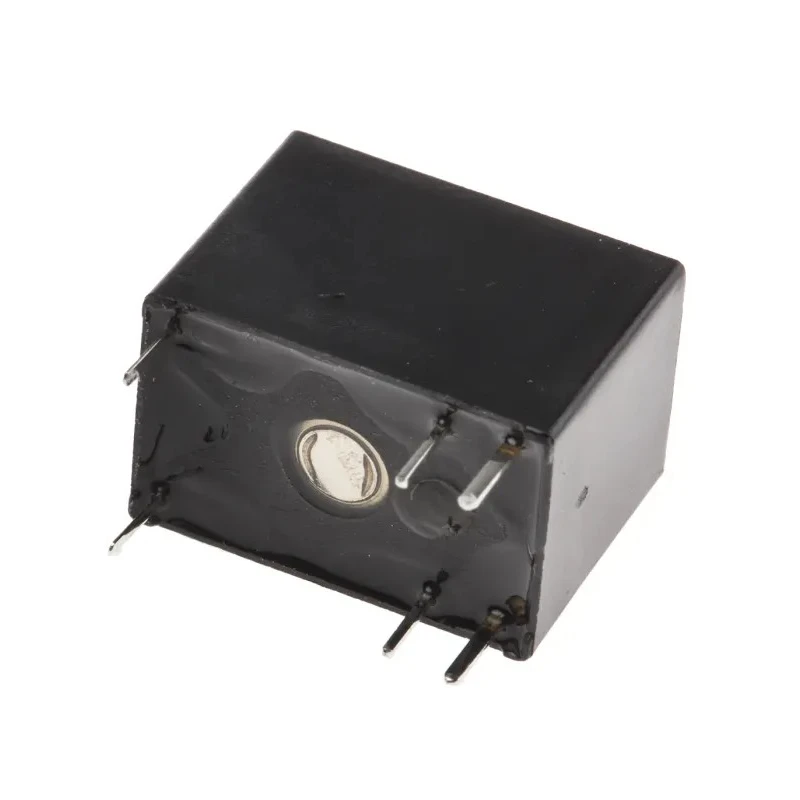

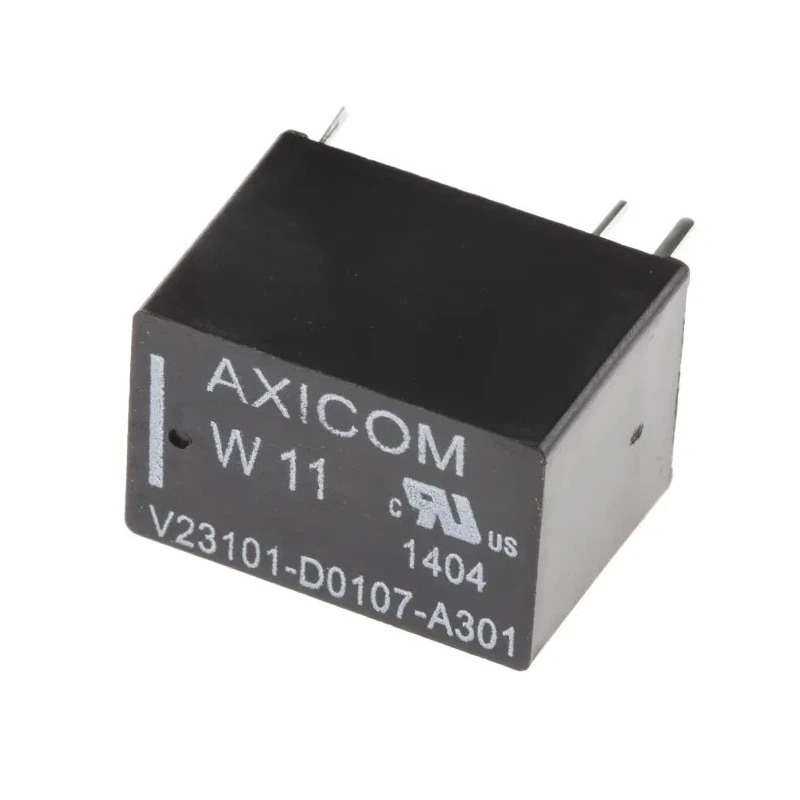

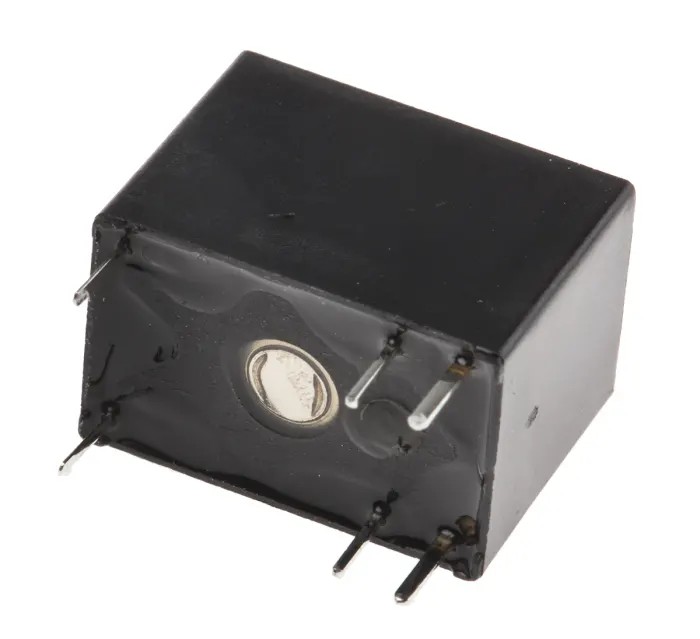

TE Connectivity PCB Signal Relay 24V dc Coil 3A SPST V23101D 107A301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.4mm |
| Model | V23101D 107A301 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
| Pin Length | 3.5mm |
Key Features
- Operates at coil voltage of 24V dc with a coil resistance of 2880 ohms.
- Supports a switching current of up to 3A for both AC and DC applications.
- Compact dimensions suitable for PCB mounting with height 11.5mm and length 15.4mm.
- Designed for operating temperatures ranging from -40°C to +85°C ensuring durability in harsh environments.
- Gold plated contacts improve conductivity and minimize contact resistance.
- Fully sealed construction providing high shock and vibration resistance.
- Terminal type is solder, ideal for stable PCB integration.
- Coil power consumption rated at 200mW enabling efficient energy use.
Product Description
TE Connectivity V23101D 107A301 PCB Signal Relay is engineered for high reliability in industrial, automation, and electronic applications. This relay features a 24V dc coil and a single-pole single-throw (SPST) contact configuration, enabling switching currents up to 3A. Its compact size of 11.5mm height, 10mm width, and 15.4mm length ensures seamless integration onto PCBs, while the solder terminal type offers secure and reliable connections.
The relay includes a gold-plated contact material which enhances conductivity and reduces contact resistance, making it well suited for sensitive signal switching tasks. It supports switching voltages of 125V AC and 120V DC, and operates efficiently with a coil power of just 200mW and coil resistance of 2880 ohms.
Designed with a fully sealed body, the relay is robust against shock and vibration, suitable for demanding industrial environments. The operating temperature range from -40°C to 85°C further attests to its durability for applications that require temperature tolerance.
This relay is part of the IM series and supports PCB mounting, making it ideal for use in electronic control systems, automation, instrumentation, and signal conditioning in industrial, laboratory, and manufacturing setups.
Operates at coil voltage of 24V dc with a coil resistance of 2880 ohms. Switching current capability of 3A at 125V AC or 120V DC. Compact dimensions: 11.5mm x 10mm x 15.4mm with 3.5mm pin length. Gold plated contacts for improved electrical conductivity.
Fully sealed design offering high shock and vibration resistance. Operating temperature range from -40°C to 85°C for reliable performance. Solder terminal type suitable for PCB mounting. Low coil power consumption at 200mW.
Ideal for signal switching in industrial and electronic applications. Explore our catalog for more Signal Relays and components from TE Connectivity at EnvMart for efficient project development and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this signal relay is 24V DC.
This model supports a maximum switching current of 3A for both AC and DC applications.
The dimensions of this relay are 11.5mm in height, 10mm in width, and 15.4mm in length.
It features a single-pole single-throw (SPST) contact configuration.
The coil resistance of this relay is 2880 ohms.
The operating temperature range is from -40°C to +85°C.
This model has a solder terminal type, suitable for secure PCB integration.
The coil power consumption is rated at 200mW.
The contacts of this relay are made from gold plated material, which improves conductivity and minimizes contact resistance.
It can switch voltages of up to 125V AC and 120V DC.
Yes, it features a fully sealed construction that provides high shock and vibration resistance, making it suitable for demanding industrial environments.
This relay is part of the IM series from TE Connectivity.
