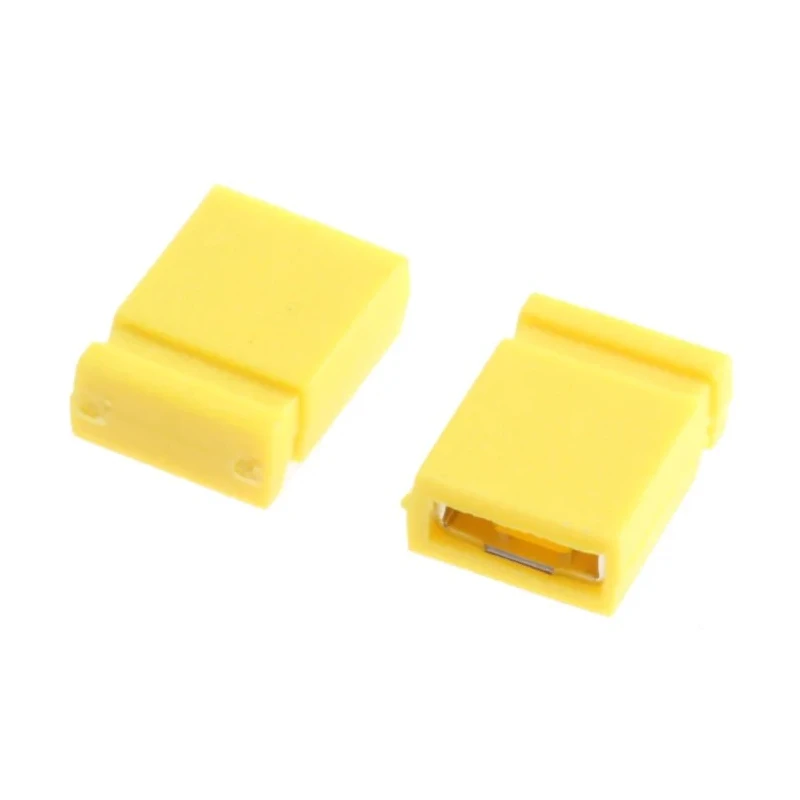

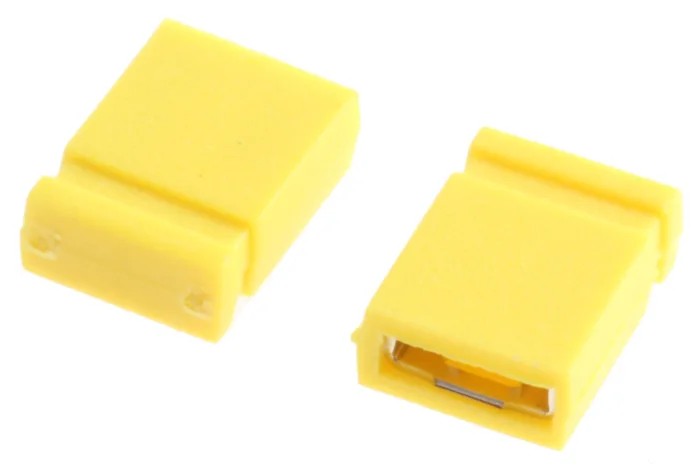

RS PRO Shorting Link Straight Female Yellow Closed Top 2 Way 1 Row 2.54 mm Pitch 251-8525

RS PRO 251-8525 shorting link is a high-quality, straight female jumper designed for electronic circuit applications requiring a compact 2 way, 1 row connector with a standard 2.54 mm pitch. It is manufactured with phosphor bronze contacts that offer excellent electrical conductivity and are plated with tin over nickel to ensure corrosion resistance and durability in various environments.

The housing is made from polybutylene terephthalate (PBT), a durable thermoplastic that insulates and prevents accidental short circuits caused by metal-to-metal contact. This component is ideal for mating with 0.6 mm² headers often used on printed circuit boards (PCBs).

With compact physical dimensions of 4.98 mm in length, 6.47 mm in width, and 2.44 mm depth, it suits limited space applications while maintaining reliable electrical connections. Rated for a current of up to 3 amperes and a maximum contact resistance of 20 milliohms, it supports efficient power transfer and signal integrity.

This shorting link features a single row with two contacts in a straight orientation, ensuring straightforward installation in compatible female connectors. Its closed top and yellow coloration allow easy visual identification and adherence to safety norms.

The product complies with UL94 V-0 flame retardancy standards, making it suitable for use in industrial, commercial, and consumer electronic assemblies where fire safety is critical.

Supplied in packs of 10, these shorting links enable batch assembly and maintenance of electronic devices, jumpers, and motherboard circuits. Applications include electronic circuit prototyping, motherboard configurations, and modular circuit assembly in electronics manufacturing and repair settings.

Constructed with phosphor bronze contacts for high conductivity. Contacts plated with tin over nickel for corrosion resistance. Housing made of durable polybutylene terephthalate (PBT) material. Compact physical dimensions: 4.98 mm length, 6.47 mm width, 2.44 mm depth.

Rated for 3A current and 20 milliohms max contact resistance. Single row, two contacts, straight orientation. Mates with 0.6 mm² headers. Complies with UL94 V-0 fire safety standard. Supplied in packs of 10 for batch use.
