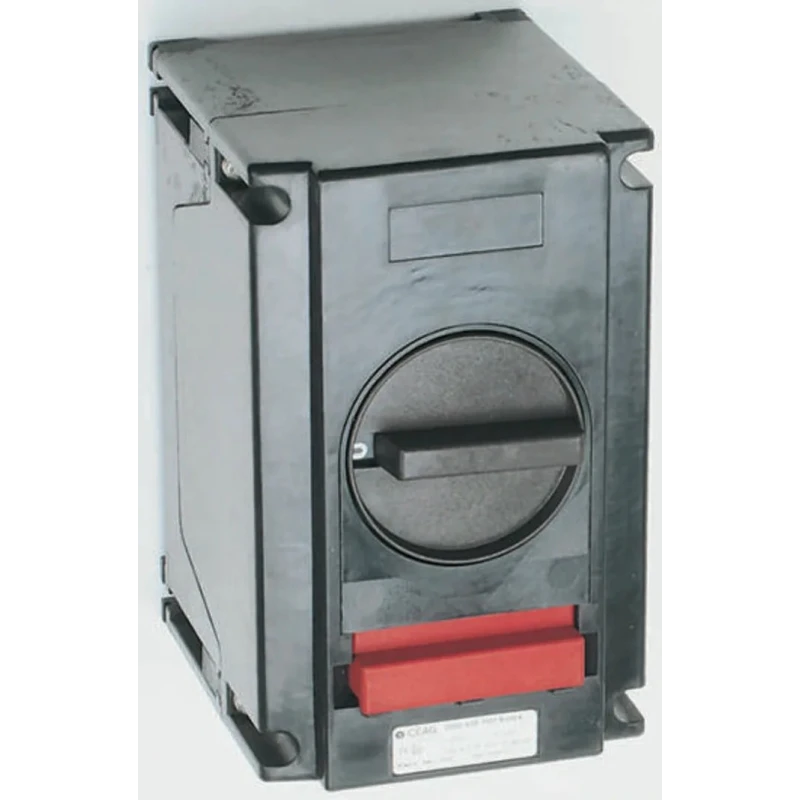

Eaton DOL Motor Starter 690V AC, 25A Current Rating, IP66 Enclosure GHG6351101R0114

Eaton GHG6351101R0114 DOL Motor Starter is engineered for efficient motor starting and protection applications in industrial and commercial settings. Designed to operate at a maximum voltage of 690V AC with a current rating of 25A, it provides reliable direct-on-line (DOL) starting.

The motor starter features single-phase failure protection via thermal electromagnetic trips enhancing the safety and longevity of connected motors. The clear switch position indication on the handle facilitates safe operation and monitoring. Connection terminals are accessible from all sides, supporting up to 10mm² conductor cross-section for versatile wiring.

The enclosure is rated IP66 according to EN60529 standards, ensuring protection against dust and powerful water jets, making it suitable for challenging environments including hazardous areas with ATEX certification.

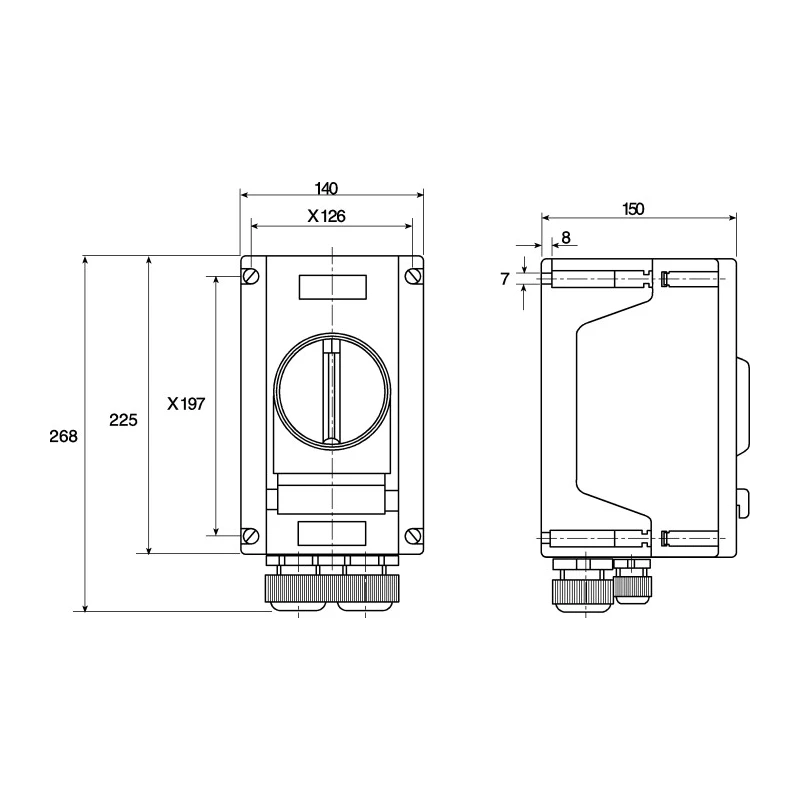

Additional features include padlocking capability through a red button enabling operator safety and compliance with safety standards including CE and EAC. The compact dimensions of 225mm length, 140mm width, and 156mm depth allow for flexible installation in control panels and motor control centers.

This motor starter is ideal for applications in industrial automation, manufacturing plants, HVAC systems, and general motor control applications requiring robust motor starting solutions with high ingress protection and safety compliance.

Provides direct-on-line starting for motors up to 690V AC. Features IP66 rating for superior protection against dust and water ingress. Equipped with thermal electromagnetic trips to protect against single-phase failure.

Indicates switch position clearly via the switch handle for operational safety. Terminals support connection of single or multi-wire conductors up to 10mm². Includes padlocking facility via a red button for secure operation.

Complies with CE and EAC standards and carries ATEX hazardous area certification. Compact dimensions of 225mm length, 140mm width, and 156mm depth for flexible installation. Manufactured in Germany ensuring high quality and durability.
