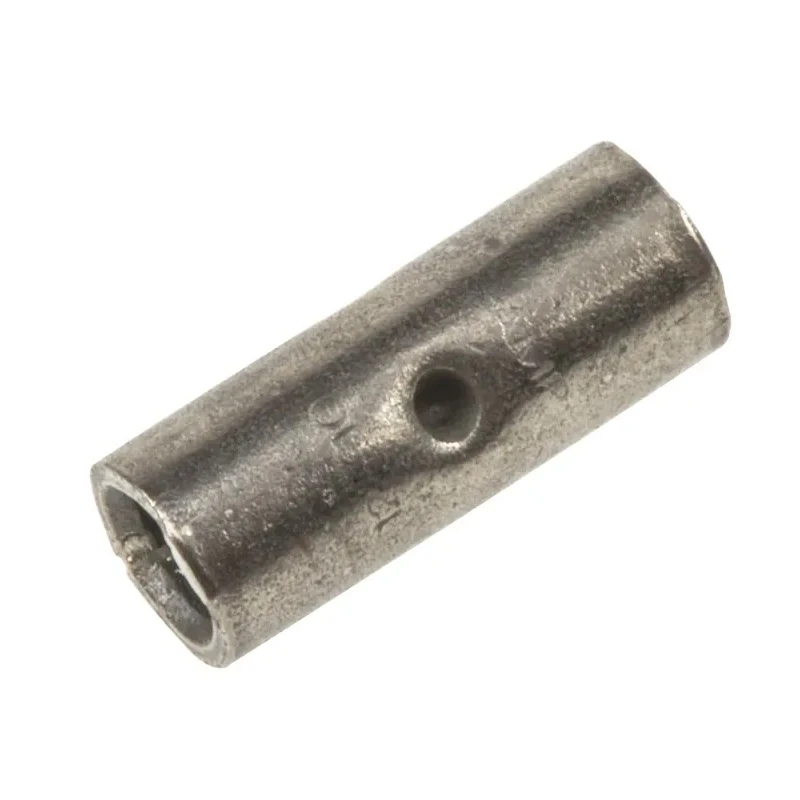

TE Connectivity STRATO-THERM Uninsulated Butt Splice Connector Nickel 10 AWG 14.4mm Length 0.99mm Thickness 323696

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity STRATO-THERM Uninsulated Butt Splice Connector Nickel 10 AWG 14.4mm Length 0.99mm Thickness 323696

Name: TE Connectivity STRATO-THERM Uninsulated Butt Splice Connector Nickel 10 AWG 14.4mm Length 0.99mm Thickness 323696
Brand: TE Connectivity
SKU: 179275
Price: 8.01 USD
Availability: InStock



Category Splice Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Diameter	5.74mm
Brand	TE Connectivity
THICKNESS	0.99mm
Model	323696
Insulation	Uninsulated
Overall Length	14.4mm
Contact Material	Nickel
Series	STRATO-THERM
Standards/Approvals	RoHS
Minimum Wire Size mm²	3mm²
Maximum Wire Size mm²	6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Splice Type	Butt
TE Connectivity, STRATO-THERM Butt Splice Connector, Uninsulated 16 AWGBrand	TE Connectivity

Key Features

Constructed from solid nickel for superior high temperature performance.
Overall length of 14.4 mm and thickness of 0.99 mm suitable for reliable crimps.
Compatible with wire sizes from 12 AWG to 10 AWG (3 mm² to 6 mm²).
Uninsulated design ideal for applications requiring maximum operating temperature up to 649°C.
Complies with RoHS standards ensuring environmental safety.
Designed to maximize electrical contact via crimp serrations and dimples.
Manufactured in the United States maintaining high quality standards.

Product Description

TE Connectivity 323696 STRATO-THERM Butt Splice Connector is a high performance splice connector designed for industrial and electrical applications requiring high temperature resistance up to 649°C (1200°F). This uninsulated butt splice connector is made from solid nickel, providing excellent durability and reliable electrical contact through its serrated barrel when crimped.

Its dimensions include a length of 14.4 mm and thickness of 0.99 mm, optimally suited for terminating solid or stranded conductors in wire gauge sizes 12 AWG to 10 AWG (3 mm² to 6 mm²). The uninsulated construction allows use in environments where heat resistance beyond standard insulated crimps is necessary.

Compliant with RoHS standards, this splice connector ensures environmental safety while meeting demanding electrical assembly requirements. Its contact design maximizes the contact area during crimping by forcing the wire into serrations and dimples for a secure and efficient electrical connection.

This connector is ideal for applications in electrical wiring, power distribution, control systems, and industrial manufacturing environments requiring high temperature tolerance and robust splice performance.

Constructed from solid nickel for corrosion resistance and heat tolerance. Supports wire sizes from 12 AWG to 10 AWG, covering a broad range of conductor thicknesses. Uninsulated design suitable for high temperature operations up to 649°C.

14.4 mm length and 0.99 mm thickness for optimal crimp stability. RoHS compliant providing environmentally safe material usage. Manufactured in the United States ensuring strict quality control. Maximizes electrical contact through serrated crimp mechanism.

Use TE Connectivity STRATO-THERM Butt Splice Connector for reliable high temperature wire splicing in industrial, laboratory, electrical, HVAC, and manufacturing applications. Discover a wide range of connectors and electrical components on EnvMart to suit your technical needs.
