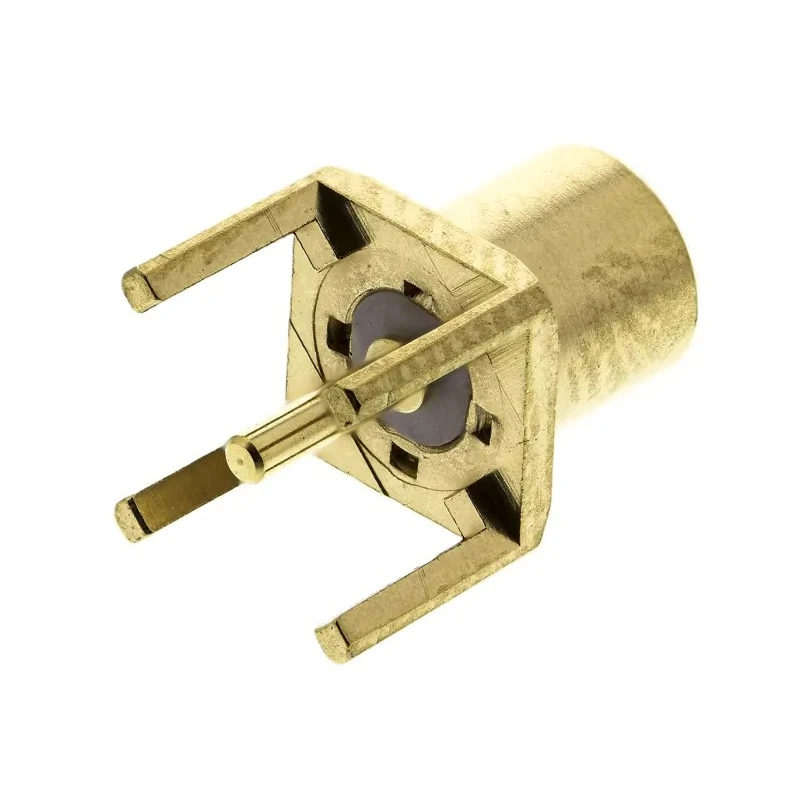

Radiall MCX Series Coaxial Connector Through Hole Female MCX, 50 Ω, Straight Body Solder R113426000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R113426000W |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
| Radiall Coaxial Connector Surface MCX, 50 Ω, Right Angle Body SolderBrand | Radiall |
| MCX push-pull straight PCB socket,75ohmBrand | NEUTRAL |
Key Features
- Microminiature coaxial connector suitable for industrial and military communication applications.
- Through hole mount type designed for PCB installation.
- Gold over nickel plated body and beryllium copper contact with gold plating for enhanced conductivity.
- Operates at frequencies up to 6 GHz with impedance of 50 Ω.
- Features rapid push-pull snap-on mating compatible with 75 Ω versions.
- Minimum operating temperature of -55°C and maximum of 155°C for reliable performance.
- Normal polarity and female connector gender.
- Standard size with bulkhead mounting capability.
Product Description
Radiall R113426000W MCX Series Coaxial Connector Through Hole Female 50 Ω is a microminiature coaxial PCB mount jack receptacle connector designed for high frequency applications up to 6 GHz. This connector features a gold over nickel plated body and gold plated beryllium copper contact, ensuring excellent electrical performance and corrosion resistance.
The through hole mount type facilitates robust PCB installation, suitable for industrial, military, and communication equipment where size efficiency and reliability are critical. Its straight body solder termination provides a secure connection suitable for repeated mating cycles.
Designed with a rapid push-pull snap-on mechanism, the connector allows quick coupling and decoupling while maintaining consistent impedance matching at 50 Ω. The compact size is approximately 30% smaller than SMB connectors, making it ideal for use in space-restricted electronic assemblies.
Operating temperature ranges from -55°C minimum to 155°C maximum, ensuring reliable performance under extreme environmental conditions. The connector's normal polarity and female contact gender are suited for a broad range of applications in RF communication and signal transmission systems.
Microminiature coaxial connector suitable for industrial and military communication applications. Through hole mount type designed for PCB installation. Gold over nickel plated body and beryllium copper contact with gold plating for enhanced conductivity.
Operates at frequencies up to 6 GHz with impedance of 50 Ω. Features rapid push-pull snap-on mating compatible with 75 Ω versions. Minimum operating temperature of -55°C and maximum of 155°C for reliable performance. Normal polarity and female connector gender.
Standard size with bulkhead mounting capability. Termination via soldering ensures secure and durable connections.
This Radiall MCX coaxial connector is widely used in electronics manufacturing, telecommunications, aerospace, and military sectors for reliable signal connections. Its compact design and high frequency capabilities make it a preferred choice for modern RF and microwave systems. Explore more from Radiall and similar Coaxial Connectors on EnvMart to find the exact products suited to your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 6 GHz, making it suitable for high-frequency applications.
The impedance of this connector is rated at 50 Ω, which is standard for many RF applications.
It features a through hole mount type designed for PCB installation, ensuring secure placement on printed circuit boards.
The connector has a gold over nickel plated body and a beryllium copper contact with gold plating for enhanced conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 155°C, allowing for reliable performance in extreme conditions.
This model features a female connector gender, suitable for various RF communication applications.
It includes a rapid push-pull snap-on mating mechanism, allowing for quick coupling and decoupling while maintaining consistent impedance matching.
The termination type is solder, ensuring a secure and durable connection suitable for repeated mating cycles.
It is classified as a standard size, which allows for compatibility with various applications requiring compact connectors.
This connector is widely used in electronics manufacturing, telecommunications, aerospace, and military sectors for reliable signal connections.
The country of origin for this connector is India, indicating its manufacturing location.
Its compact design is approximately 30% smaller than SMB connectors, making it ideal for use in space-restricted electronic assemblies.
