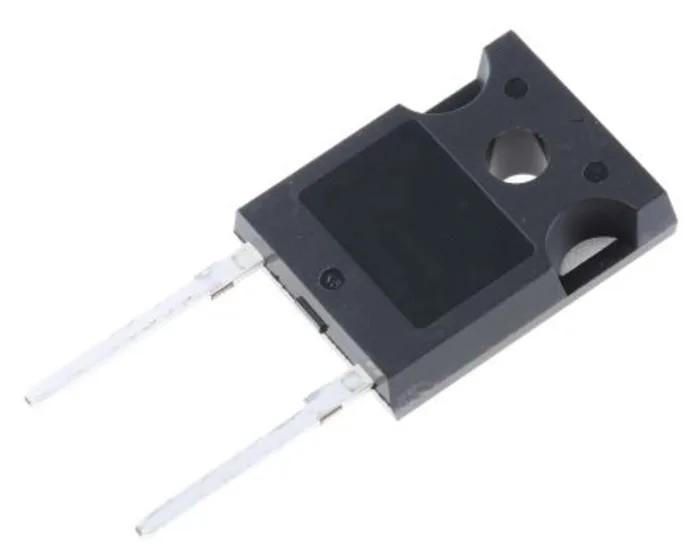

Microchip 1200 V 30 A Schottky Barrier Schottky Diode TO-247 MSC030SDA120B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA120B |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Offers a maximum continuous forward current of 30 A ensuring robust performance.
- Peak reverse repetitive voltage rating of 1200 V for high voltage tolerance.
- Low forward voltage of 1.8 V helps reduce power losses.
- Operates efficiently in temperatures from -55°C to 175°C.
- Features a peak non-repetitive forward surge current of 75 A for transient protection.
- Compliant with RoHS standards supporting environmental safety.
- Designed in a reliable TO-247 through-hole package for easy mounting.
Product Description
Microchip MSC030SDA120B is a high-quality Schottky Barrier diode with a maximum continuous forward current of 30 A and peak reverse voltage of 1200 V, optimized for use in power electronics and discrete semiconductor applications.
This diode is specifically engineered to handle high switching frequencies, commonly employed in power-parallel diode applications, enhancing efficiency by reducing forward voltage and leakage currents.
The device features a robust TO-247 package designed for through-hole mounting, facilitating secure installation and effective heat dissipation.
Outstanding thermal performance allows operation within a broad temperature range from -55°C to 175°C, making it suitable for demanding industrial, automotive (non-automotive standard), and manufacturing environments.
With a low forward voltage drop of 1.8 V and absence of reverse recovery current, this diode minimizes switching losses and enhances reliability in high-speed switching circuits. Additional product features include avalanche energy rating and full RoHS compliance, supporting environmentally responsible manufacturing and disposal.
Maximum continuous forward current: 30 A. Peak reverse repetition voltage: 1200 V. Low forward voltage: 1.8 V. Operating temperature range: -55°C to 175°C. Peak non-repetitive forward surge current of 75 A. TO-247 package with through-hole mount.
RoHS compliant for environmental safety.
This Microchip Schottky diode is ideal for use in industrial power management, semiconductor devices, electronics manufacturing, and laboratory applications requiring fast switching and low power loss.
Explore the full range of semiconductor devices and Schottky diodes on EnvMart for your precise power electronics solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Microchip MSC030SDA120B Schottky diode is 30 A.
This diode has a peak reverse repetitive voltage rating of 1200 V.
The forward voltage drop of this Schottky diode is 1.8 V, which helps reduce power losses.
It operates efficiently within a temperature range of -55°C to 175°C.
The peak non-repetitive forward surge current for this model is 75 A.
This diode is designed for through-hole mounting in a TO-247 package.
Yes, it is compliant with RoHS standards, supporting environmental safety.
It is suitable for industrial power management, semiconductor devices, and applications requiring fast switching and low power loss.
The package type of the MSC030SDA120B is TO-247.
This model belongs to the MSC0 series of Schottky diodes.
The low forward voltage of 1.8 V minimizes switching losses, enhancing reliability in high-speed switching circuits.
The country of origin for this diode is India.
