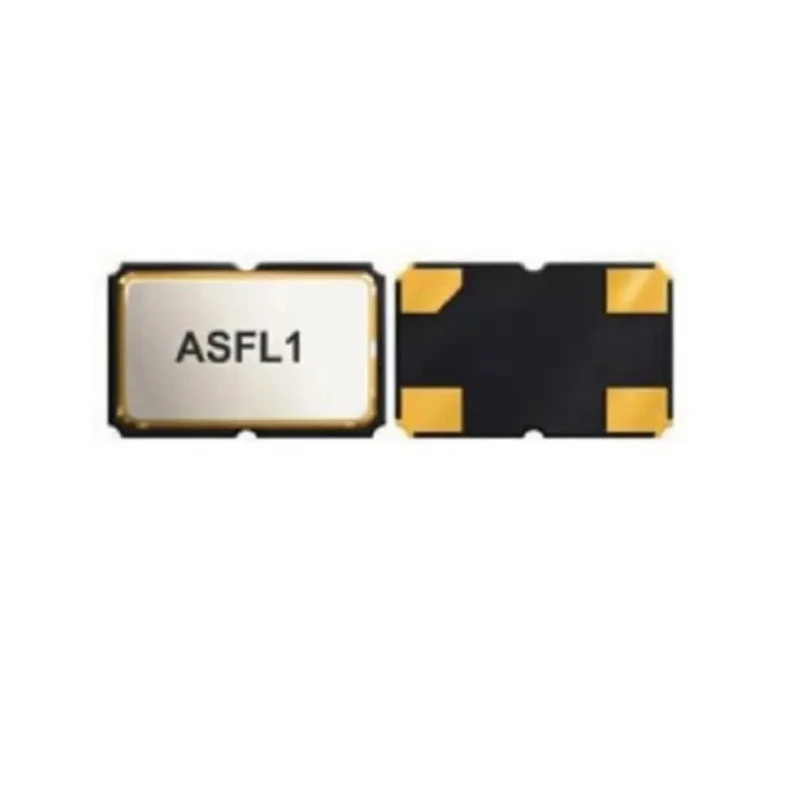

Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T

Abracon ASFL1-10.000MHZ-EK-T is a 10MHz clock oscillator crystal oscillator featuring HCMOS and TTL output levels, housed in a 4-pin surface mount package. This component operates within a supply voltage range of 2.97V to 3.63V and delivers stable frequency output suitable for precise timing purposes in various electronic systems.

This oscillator is characterized by its compact dimensions of 5mm length, 3.2mm width, and 1.3mm height, making it suitable for high-density surface mount technology (SMT) designs. The sealed package ensures durability and high reliability, meeting RoHS standards for environmentally friendly manufacturing.

The device operates in a broad temperature range of -20°C to 70°C, supporting industrial and commercial electronic applications. Its tri-state function and tight frequency stability options make it a versatile component for advanced electronic circuits.

Typical applications for the ASFL1 series include use as a CCD clock in VTR cameras, wireless communication devices, PDAs, and laptop computers, offering reliable clocking in demanding environments.

Operates at 10MHz frequency with HCMOS and TTL output compatibility. Surface mount through 4 pins for compact PCB assembly. Voltage supply range from 2.97V to 3.63V ensures flexibility in power requirements. Temperature range from -20°C to 70°C suitable for varied operational conditions.

Sealed package supports high reliability in industrial environments. RoHS compliant and meets environmental regulations. ASFL1 series provides tight stability with +/-20ppm frequency tolerance options.

This product is crucial in applications requiring precise timing signals, including industrial controls, communication equipment, measurement instruments, and consumer electronics.
