Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T

Free Delivery in India | Lowest Global Shipping Charges

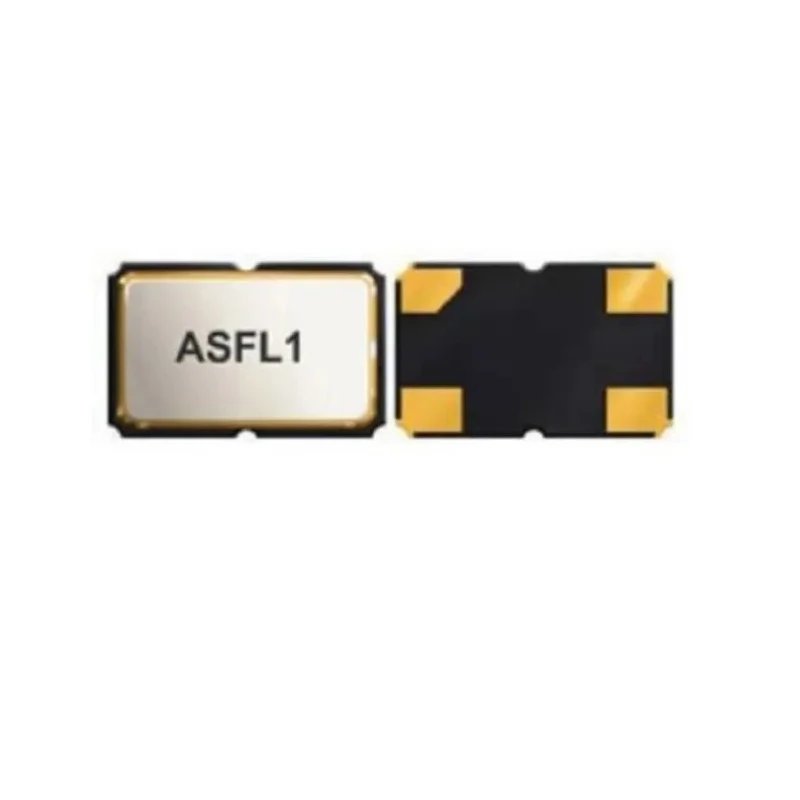

Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T

Name: Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T
Brand: Abracon
SKU: 177291
Price: 1.77 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.3mm
Length	5mm
Model	ASFL1-10.000MHZ-EK-T
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ASFL1
Maximum Operating Temperature	70°C
Output Frequency	10MHz
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Clock Oscillator
Output Level	HCMOS, TTL

Key Features

This crystal oscillator operates at a frequency of 10MHz.
It supports a minimum supply voltage of 2.97 volts and a maximum of 3.63 volts.
The device is designed for surface mounting with a compact 4-pin configuration.
Its operating temperature ranges from -20°C to 70°C, suitable for various industrial applications.
The oscillator is RoHS compliant and suitable for lead-free reflow soldering processes.
It has a height of 1.3mm, width of 3.2mm, and length of 5mm, optimized for high-density PCB design.
Seam sealed packaging ensures high reliability and stable performance.
Common applications include CCD clock for VTR cameras, wireless communication devices, PDAs, and laptop computers.

Product Description

The Abracon ASFL1-10.000MHZ-EK-T is a precision 10MHz clock oscillator crystal oscillator designed for demanding electronic applications. It features HCMOS and TTL compatible output levels, packaged in a 4-pin surface mount form factor optimized for high-density SMT boards.

Operating within a supply voltage range of 2.97 to 3.63 volts and a temperature range of -20°C to 70°C, this oscillator is ideal for robust industrial and commercial uses. Its compact size, including a height of 1.3mm, width of 3.2mm, and length of 5mm, makes it suitable for space-constrained PCB layouts typical in modern electronic devices.

The device is RoHS compliant, adhering to environmental standards, and its seam sealed package guarantees enhanced reliability through protection against contaminants, ensuring stable frequency output over time.

This oscillator supports tri-state functionality, allowing enable/disable control for flexible circuit integration. It is suitable for use in CCD clock generation for VTR cameras, wireless communication modules, PDAs, laptop computers, and similar electronic devices.

The tape and reel packaging facilitates efficient automated assembly in production lines. Its tight stability option of approximately ±20ppm ensures precise timing for critical applications. Designed for compatibility with lead-free reflow solder processes to comply with modern manufacturing requirements.

Surface mount technology allows for high-density board design and improved signal integrity. The oscillator's performance and construction make it suitable for industrial, manufacturing, communication, and computing sectors.

Choose the Abracon ASFL1-10.000MHZ-EK-T oscillator to enhance your electronic designs with reliability, precision, and compactness. Explore more products in the Crystal Oscillator category at EnvMart.
