Abracon 24MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASEAIG-24.000MHZ-C-T

Free Delivery in India | Lowest Global Shipping Charges

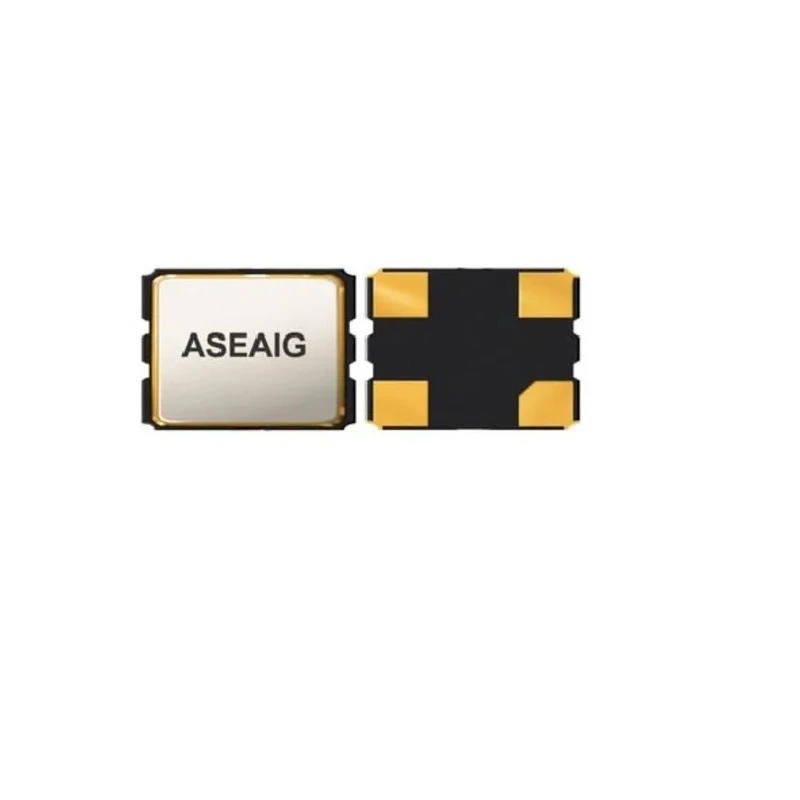

Abracon 24MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASEAIG-24.000MHZ-C-T

Name: Abracon 24MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASEAIG-24.000MHZ-C-T
Brand: Abracon
SKU: 177290
Price: 2.63 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	2.1mm
Length	3.2mm
Model	ASEAIG-24.000MHZ-C-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASEAIG
Maximum Operating Temperature	125°C
Output Frequency	24MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Automotive Standard	AEC-Q200
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	Crystal Oscillator
Output Level	CMOS
Automotive Grade 1	-40°C to +125°C

Key Features

Features a hermetically seam-sealed ceramic package enhancing durability.
Automotive Grade 1 qualified, operable between -40°C and +125°C for harsh environments.
Supplies output frequency of 24MHz with ±50 ppm stability ensuring precise timing.
Operates at a minimum supply voltage of 3.14V and maximum of 3.47V.
Compliant with RoHS and automotive standard AEC-Q200.
Ideal for infotainment systems, GPS navigation, advanced driver-assistance systems, and LiDAR applications.

Product Description

Abracon ASEAIG-24.000MHZ-C-T is a high-quality automotive and industrial grade crystal oscillator featuring a 24MHz output frequency with ±50 ppm frequency stability. Designed with a hermetically seam-sealed ceramic package, this 4-pin surface mount device offers superior reliability for demanding applications.

Operable within a wide temperature range from -40°C to +125°C, it is classified as Automotive Grade 1 and meets the AEC-Q200 qualification standard, making it suitable for automotive and industrial environments. The oscillator features CMOS output with a supply voltage range from 3.14V to 3.47V.

Its compact physical dimensions of 3.2mm length, 2.5mm width, and 2.1mm height facilitate integration into space-constrained designs. The ASEAIG series is ideal for infotainment systems, GPS, advanced driver-assistance systems (ADAS), and LiDAR technologies that demand reliable and precise timing components.

The product is fully RoHS and Pb free compliant, ensuring adherence to environmental standards. Packaged in tape and reel, it supports efficient automated manufacturing processes. Hermetically sealed ceramic package for durability.

Automotive Grade 1: -40°C to +125°C operating temperature. 24MHz output frequency with ±50 ppm stability. CMOS output and supply voltage 3.14V to 3.47V. Compact size: 3.2mm x 2.5mm x 2.1mm. RoHS compliant and AEC-Q200 qualified.

Suitable for industrial and automotive applications including infotainment and navigation systems.

This Abracon crystal oscillator offers precision and ruggedness for automotive and industrial electronics designs. Discover more Crystal Oscillator options in our Electronics Components category at EnvMart.
