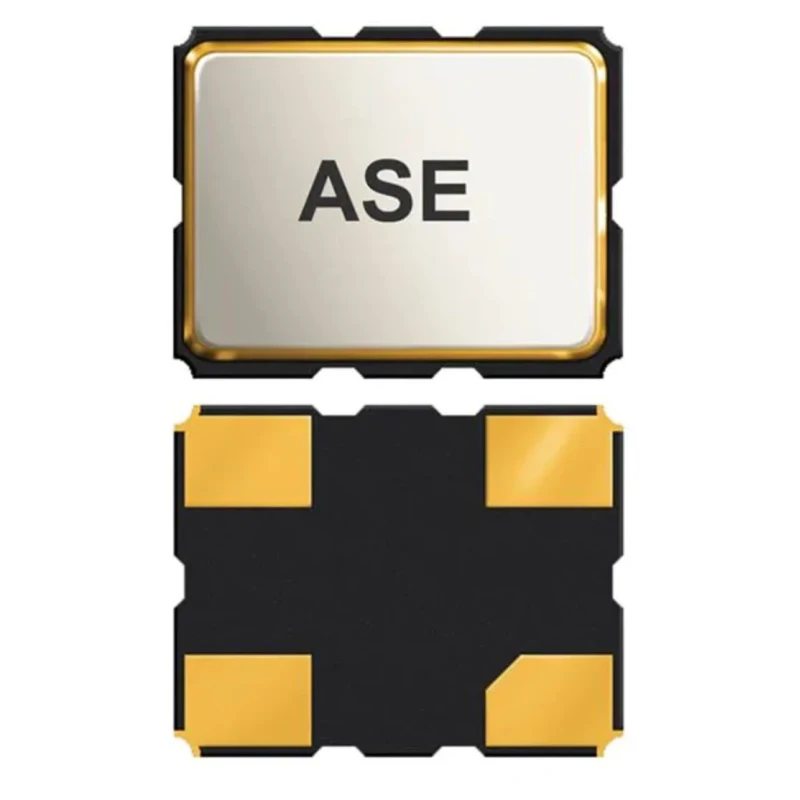

Abracon 7.3728MHz Crystal Oscillator CMOS 4-Pin Surface Mount ±50 ppm ASE-7.3728MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 3.2mm |
| Model | ASE-7.3728MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASE |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 7.3728MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS |
Key Features
- Operates within a supply voltage range of 3.14 to 3.47 V.
- Compact 4-pin surface mount package measuring 3.2 mm length, 2.5 mm width, and 1.2 mm height.
- Suitable for industrial temperatures from -40°C to 85°C operating range.
- Low current consumption and low RMS jitter enhance signal integrity.
- Compliant with RoHS standards for environmental safety.
- Ideal for applications in CCD clock for VTR cameras, PDAs, wireless communications, and laptops.
- Offered in tape and reel packaging for automated PCB assembly.
Product Description
The Abracon ASE-7.3728MHZ-LC-T is a high precision 7.3728MHz Crystal Oscillator featuring a CMOS output type and housed in a compact 4-pin surface mount package with dimensions of 3.2 mm length, 2.5 mm width, and 1.2 mm height. It delivers excellent frequency stability of ±50 ppm, making it suitable for timing and oscillator circuits that demand consistent frequency accuracy.
This oscillator operates across a supply voltage range from 3.14 V minimum to 3.47 V maximum and supports an operating temperature range from -40°C to 85°C, allowing reliable performance in harsher industrial and commercial environments. The device offers a tri-state function and low current consumption, ensuring energy-efficient operation with minimal interference due to low RMS jitter.
Designed for surface mounting, this component comes in tape and reel packaging compatible with RoHS reflow standards, enabling automated placement on printed circuit boards. Common applications include CCD clock generation for video tape recorders (VTR), portable digital assistants (PDA), wireless communication devices, and laptop motherboards where stable and accurate clock signals are critical.
Output frequency: 7.3728MHz with ±50 ppm stability. Package type: 4-pin surface mount for space-saving PCB designs. Voltage supply range from 3.14 V to 3.47 V to support various circuit designs. Operating temperature from -40°C to 85°C for extended reliability.
RoHS compliant for environmental and sustainability standards. Low RMS jitter and current consumption enhance overall system performance. Tape and reel packing designed for efficient manufacturing processes.
This oscillator series is part of Abracon's ASE lineup, known for high performance in compact form factors tailored to demanding industrial and commercial electronic applications. The ASE-7.3728MHZ-LC-T offers robust timing accuracy with a long operating lifespan, ensuring dependable frequency generation for diverse electronic systems.
Explore a wide range of precision oscillators and electronic components with EnvMart to meet your high standards for electronics manufacturing and design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of the Abracon ASE-7.3728MHZ-LC-T is 7.3728MHz with a frequency stability of ±50 ppm.
This model operates within a supply voltage range of 3.14V to 3.47V.
The surface mount package measures 3.2 mm in length, 2.5 mm in width, and 1.2 mm in height.
It supports an operating temperature range from -40°C to 85°C.
The oscillator features a CMOS output type.
The Abracon ASE-7.3728MHZ-LC-T comes in tape and reel packaging, suitable for automated PCB assembly.
Yes, it is compliant with RoHS standards for environmental safety.
Common applications include CCD clock generation for VTR cameras, PDAs, wireless communications, and laptops.
The model has a pin count of 4.
It offers low current consumption and low RMS jitter, which enhance signal integrity and overall system performance.
This model is part of Abracon's ASE series, known for high performance in compact form factors.
The country of origin for this crystal oscillator is India.
