Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T

Free Delivery in India | Lowest Global Shipping Charges

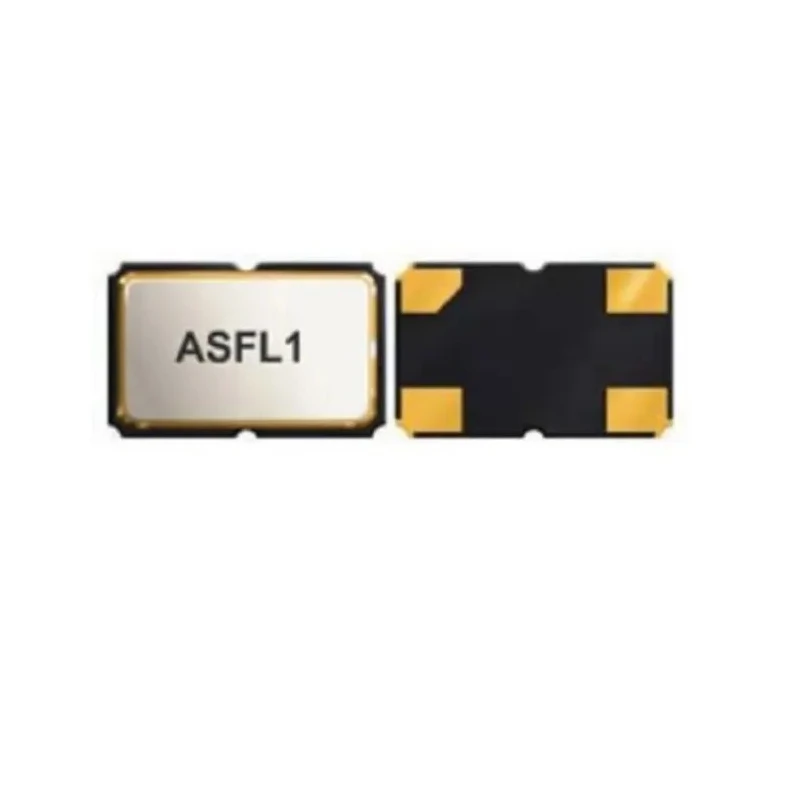

Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T

Name: Abracon 10MHz Clock Oscillator Crystal Oscillator HCMOS TTL 4-Pin Surface Mount ASFL1-10.000MHZ-EK-T
Brand: Abracon
SKU: 177288
Price: 1.86 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.3mm
Length	5mm
Model	ASFL1-10.000MHZ-EK-T
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ASFL1
Maximum Operating Temperature	70°C
Output Frequency	10MHz
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Clock Oscillator
Output Level	HCMOS, TTL

Key Features

Operates with a supply voltage range from 2.97V to 3.63V.
Output frequency is precisely 10MHz, suitable for clock applications.
Compatible with HCMOS and TTL logic levels for broad device integration.
Compact surface mount design with 4 pins for efficient PCB layout.
Operating temperature range from -20°C to 70°C for varied environmental conditions.
Package dimensions are 5mm in length, 3.2mm in width, and 1.3mm in height.
RoHS compliant and suitable for lead-free reflow soldering processes.
Seam-sealed package ensures high reliability and durability.

Product Description

The Abracon ASFL1-10.000MHZ-EK-T is a 10MHz clock crystal oscillator designed for reliable and precise timing in demanding electronic applications. It features a surface mount 4-pin package that supports both HCMOS and TTL output levels, enabling compatibility across a wide range of digital circuits.

Engineered to operate within a supply voltage range of 2.97V to 3.63V, this oscillator delivers stable frequency output with tight tolerances, making it well-suited for critical clocking functions in devices such as CCD clocks for VTR cameras, wireless communication systems, PDAs, and laptop computers.

The surface mount package measures 5mm in length, 3.2mm in width, and 1.3mm in height, allowing for high-density PCB assembly and space-saving designs. Its operating temperature range from -20°C to 70°C supports functionality in diverse environmental conditions.

This RoHS compliant oscillator features a seam-sealed package that enhances reliability and durability, ensuring stable operation over the product lifecycle. It is compatible with RoHS-compliant reflow soldering processes.

Operates with supply voltage between 2.97V and 3.63V. Provides 10MHz output frequency with HCMOS and TTL levels. Compact 4-pin surface mount package for dense PCB integration. Operating temperature from -20°C to 70°C. Seam-sealed, high reliability construction.

RoHS compliant and suitable for lead-free soldering. Ideal for applications in CCD clocks, wireless communications, PDAs, and laptops.

This crystal oscillator is part of the ASFL1 series by Abracon, known for quality and precision in electronic components. Browse more Crystal Oscillators and related products in the Electronics Components category at EnvMart to find the best solutions for your industrial, laboratory, telecommunications, and consumer electronics projects.
