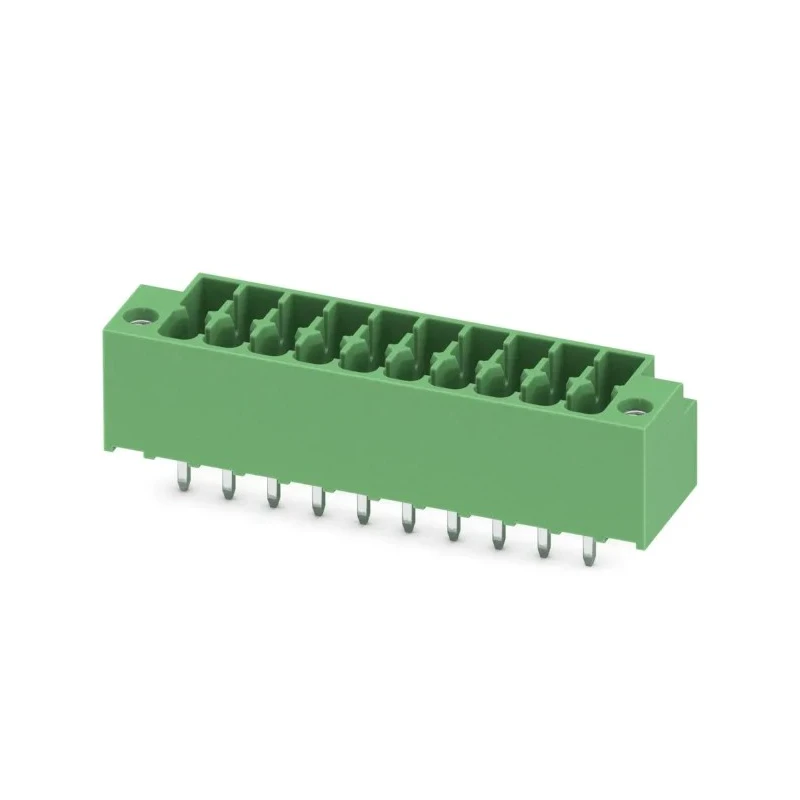

Phoenix Contact DMCV Series Pluggable Terminal Block, 20-Contact, 3.5 mm Pitch, 2 Row, 8A, 160V, Polybutylene 1054070
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Top Entry |
| Current | 8A |
| Length | 10.6mm |
| Model | 1054070 |
| Depth | 13.5mm |
| Width | 42mm |
| Housing Material | Polybutylene Terephthalate |
| Series | DMCV |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | cULus Recognised, EAC |
| Number of Contacts | 20 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Constructed with durable polybutylene terephthalate housing for longevity.
- Supports a current rating of 8A and voltage rating of 160V for safe operation.
- Features a male connector with top entry orientation for easy wiring.
- Designed with 2 rows and a compact 3.5 mm pitch for high contact density.
- Suitable for wave soldering mounting on PCBs with length 10.6 mm and width 42 mm.
- Conforms to cULus Recognised and EAC standards ensuring quality compliance.
- Green color housing for easy identification and aesthetic integration.
- Manufactured in China to high industrial standards.
Product Description
Phoenix Contact 1054070 pluggable terminal block is a professional-grade PCB connector designed for electronics and electrical applications requiring secure and reliable connections. It features 20 contacts arranged in 2 rows with a 3.5 mm pitch spacing, capable of carrying 8A current at a rated voltage of 160V.
The terminal block housing material is polybutylene terephthalate, offering excellent insulation and mechanical robustness. The connector is a male type with a top entry orientation, making it suitable for compact PCB designs where space-saving multi-row arrangements are essential.
With dimensions of 10.6 mm length, 42 mm width, and 13.5 mm depth, this terminal block supports wave soldering mounting techniques. It includes an automatic locking mechanism and a lock and release operating lever in contrasting color for intuitive installation and maintenance.
The terminal block complies with cULus Recognised and EAC standards, ensuring reliable performance and safety in industrial electronics, power connectors, control panels, and communication equipment applications.
Durable polybutylene terephthalate housing for electrical insulation and mechanical strength. 20-contact configuration arranged in 2 rows for high connection density. Rated for 8A current and 160V voltage to meet demanding circuit requirements.
Male connector with top entry orientation for straightforward wiring access. Compact footprint with 3.5 mm pitch spacing optimizes PCB layout. Facilitates wave soldering mounting for PCB assembly efficiency. Automatic locking and lever release for secure and easy operation.
This Pluggable Terminal Block is ideal for industrial, laboratory, manufacturing, and telecommunications applications where reliable PCB connections are critical. It enables engineers and technicians to achieve efficient wiring solutions with trusted standards certification.
Explore the wide range of Phoenix Contact components available on EnvMart for comprehensive electronic system integration solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 8A and a voltage rating of 160V, ensuring safe operation in various applications.
The housing is constructed from polybutylene terephthalate, providing good electrical insulation and mechanical strength.
This terminal block measures 10.6 mm in length, 42 mm in width, and 13.5 mm in depth.
It features 20 contacts arranged in 2 rows, allowing for high connection density.
The contacts are spaced at a compact 3.5 mm pitch, optimizing PCB layout.
It is a male connector with a top entry orientation, making wiring access straightforward.
It supports wave soldering mounting techniques, facilitating efficient PCB assembly.
It conforms to cULus Recognised and EAC standards, ensuring quality compliance and safety.
The housing is green, which aids in easy identification and aesthetic integration.
The wire connection method is solder, suitable for secure electrical connections.
It is manufactured in China, adhering to high industrial standards.
It is ideal for industrial, laboratory, manufacturing, and telecommunications applications where reliable PCB connections are critical.
