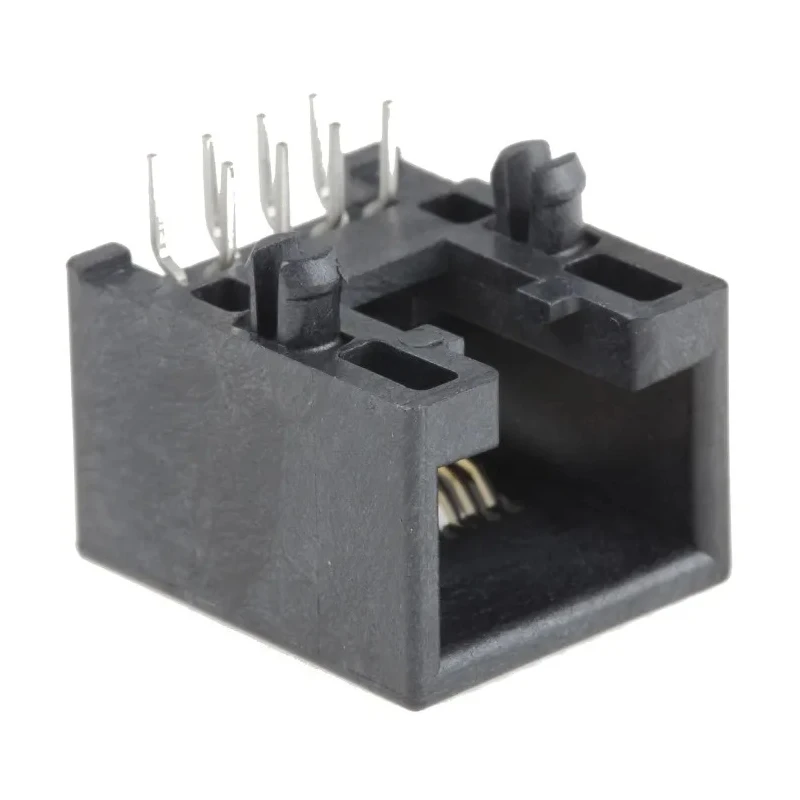

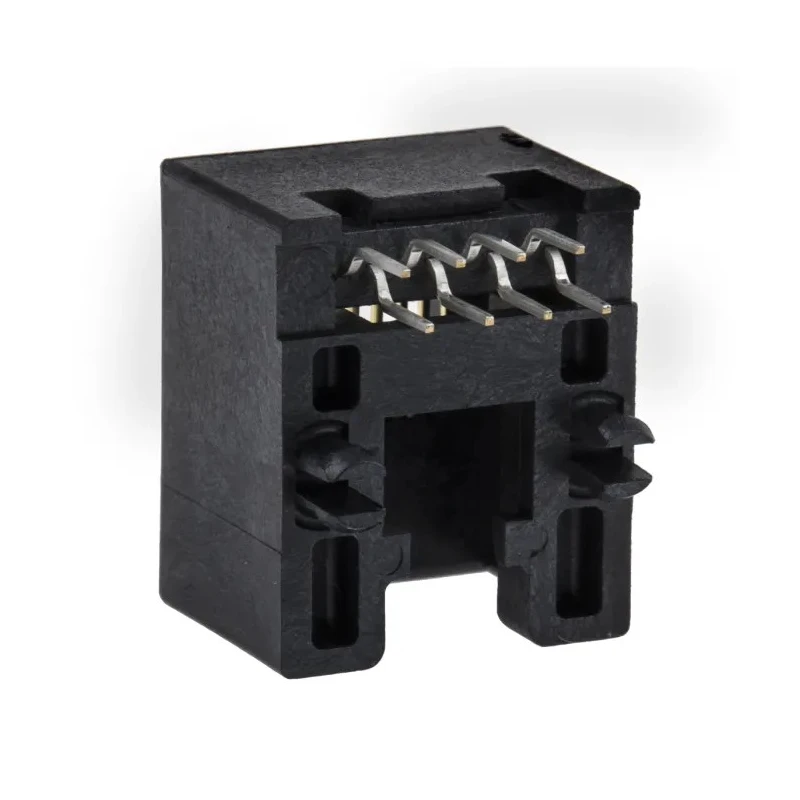

RS PRO Female Modular RJ45 Connector, Cat3 Unshielded Right Angle 1 Port 8 Way Through Hole 95501-2881

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Female Modular RJ45 Connector, Cat3 Unshielded Right Angle 1 Port 8 Way Through Hole 95501-2881

Name: RS PRO Female Modular RJ45 Connector, Cat3 Unshielded Right Angle 1 Port 8 Way Through Hole 95501-2881
Brand: RS PRO
SKU: 177057
Price: 1.57 USD
Availability: InStock



Category Network & Telecom Connectors Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Orientation	Right Angle
Length	15.24mm
Depth	18.1mm
Number Of Ways	8
Width	18.1mm
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	95501
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	Unshielded
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ45
RS PRO RJ45 Connector Female, PCB, Cat5 Unshielded Right Angle 1 Port 8 WayBrand	RS PRO

Key Features

Features a right-angle, through-hole mounting design for compact PCB installation.
Cat3 LAN category designed for RJ45 Ethernet connections with one port and eight ways.
Phosphor bronze contacts plated with gold over nickel for durability and corrosion resistance.
High temperature thermoplastic housing supports soldering up to 260°C and operates between -40°C and 85°C.
Compact dimensions of 15.24 mm length by 18.1 mm width and depth to save PCB space.
Lightweight at 2.36 grams to minimize strain on circuit boards.
Suitable for telecommunications, robotics, pharmaceutical manufacturing, and data networking.
Designed for use with modular plugs conforming to FCC part 68 and IEC 60603-7 standards.

Product Description

Molex 95501-2881 is a female modular RJ45 connector designed to provide robust network connections for PCBs. Classified under Cat3 LAN category, it supports reliable Ethernet data transmission through an unshielded, right-angle 1 port and 8 way configuration. The connector features phosphor bronze contacts plated with a gold-over-nickel finish, ensuring excellent conductivity and resistance to corrosion.

The connector body is constructed from high-temperature thermoplastic, which withstands soldering temperatures up to +260°C and provides an operational range from -40°C to +85°C. Its compact size, measuring 15.24 mm in length and 18.1 mm in both width and depth, allows for space-saving PCB design. The lightweight design, weighing only 2.36 grams, reduces mechanical stress during assembly and operation.

This RJ45 connector is ideal for applications in telecommunications systems, robotics, pharmaceutical manufacturing, and general data networking. It complies with modular plug standards FCC part 68 and IEC 60603-7, guaranteeing compatibility and performance in voice and data communication systems.

The connector supports through-hole mounting as its primary installation method with compatibility for surface mount applications, giving engineers flexibility in PCB layout and assembly. It includes features such as PCB retention pegs to enhance stability during soldering processes.

Right-angle orientation optimizes PCB layout in tight or awkward spaces. High-temperature resistant materials suitable for reflow soldering and reliable long-term use. Unshielded design appropriate for Cat3 LAN category network implementations.

Compact and lightweight, reducing board space consumption and mechanical strain. Durable contact plating ensures long service life and stable electrical performance. Suitable for industrial, commercial, and telecommunications manufacturing environments.
