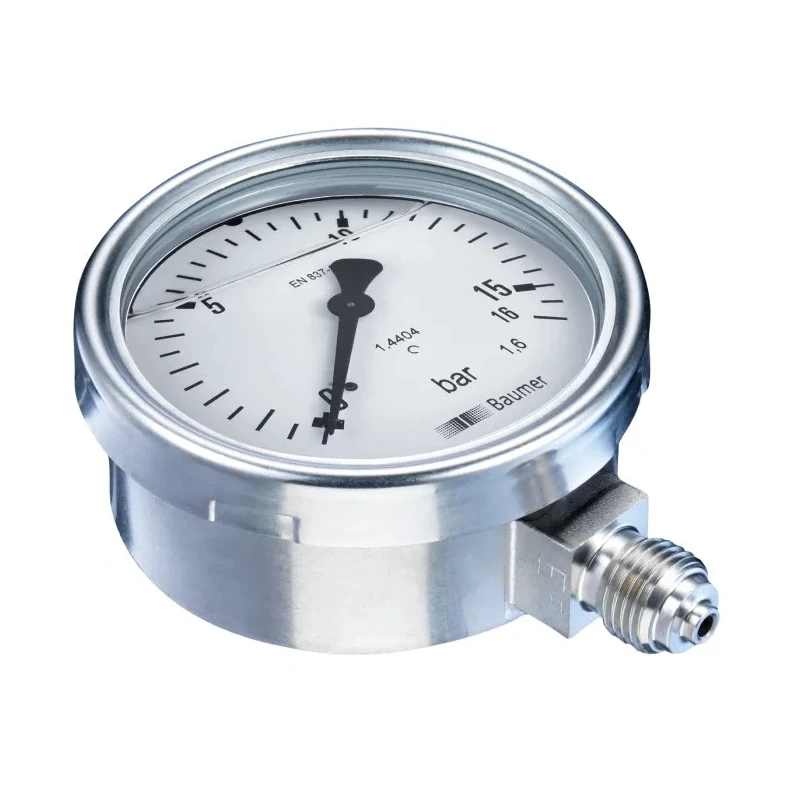

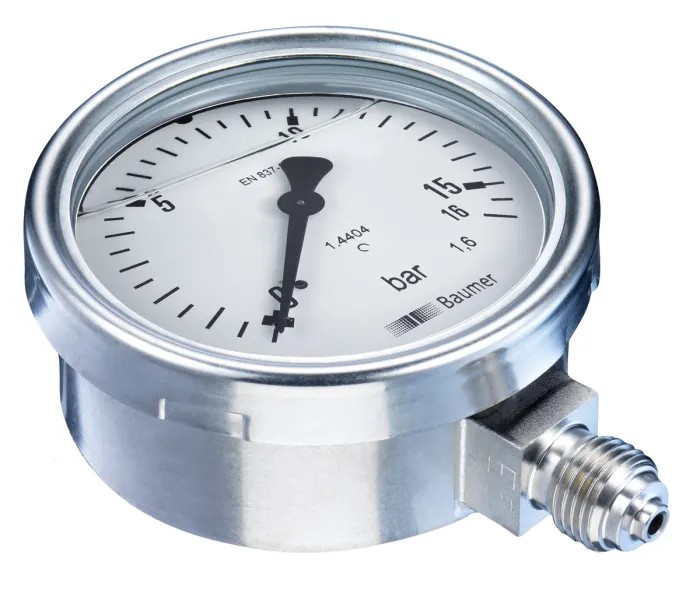

Bourdon Stainless Steel 63 mm Dial Size G 1/4 Bottom Pressure Gauge 10 bar MEX3-D21.B22
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±1.6 % |
| Brand | Bourdon |
| Model | MEX3-D21.B22 |
| Connection Type | Bottom |
| Case Material | Stainless Steel |
| Series | MEX3 |
| Maximum Operating Temperature | 70°C |
| Dial Size | 63mm |
| Connection Size | G 1/4 |
| PRESSURE CONNECTION | G 1/4 |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Connection Location | Bottom Entry |
| Dial Colour | White |
Key Features
- Stainless steel case material for durability and corrosion resistance.
- 63 mm dial with white face and black lettering for clear readability.
- Bottom entry G 1/4 connection suitable for versatile installations.
- Maximum operating temperature up to 70°C compatible with various industrial applications.
- Accuracy conforms to EN 837-1 Class 1.6 standards.
- Ingress protection rated IP65 ensures protection against dust and water jets.
- Suitable for corrosive gases and liquids in food, beverage, laboratory, oil & gas, chemical, water treatment, and energy sectors.
- Fully welded process connection with stainless steel wetted parts ensures longevity.
Product Description
Bourdon MEX3-D21.B22 is a precise stainless steel pressure gauge designed for industrial and laboratory use. Featuring a 63 mm dial size, this gauge measures 0 to 10 bar pressure with an accuracy of ±1.6%, compliant with EN 837-1 standards.
The gauge incorporates a G 1/4 bottom pressure connection and bottom entry location, ensuring ease of installation in various piping and fluid systems. Its white dial face with black lettering and a black plastic pointer provides excellent visibility even in challenging environments.
Constructed with stainless steel casing and wetted parts, the gauge is resistant to corrosion and suitable for usage with corrosive gases and liquids. The IP65 rating guarantees protection against dust ingress and low-pressure water jets, making it ideal for demanding industrial conditions.
This pressure gauge is certified under multiple standards including ATEX II2GDc-IM2c, Lloyd's Register approval, and carries a material certificate 3.1 EN10204, ensuring reliability and compliance for safe industrial applications.
Stainless steel case and wetted parts for high corrosion resistance. 63 mm nominal dial size with clear white dial and black lettering. Bottom entry G 1/4 pressure connection for flexible mounting. Measurement range from 0 to 10 bar with ±1.6% accuracy.
Maximum operating temperature of 70°C. Ingress protection IP65 (EN 60529) suitable for harsh environments. Applications include food and beverage, laboratory and medical, oil and gas, chemical processing, water and wastewater, energy and transportation sectors.
Complies with EN 837-1 pressure gauge standards and holds ATEX and Lloyd’s certifications.
This trusted Bourdon pressure gauge MEX3-D21.B22 is engineered for high performance in pneumatics and hydraulics measuring applications. Explore more Pressure Gauge products at EnvMart for all your industrial measurement needs.
