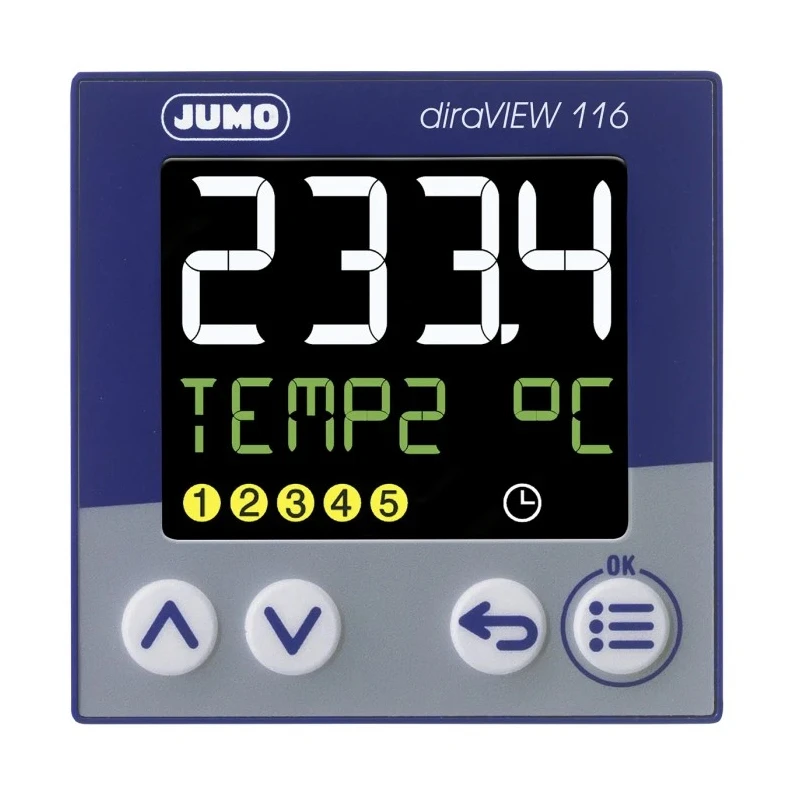

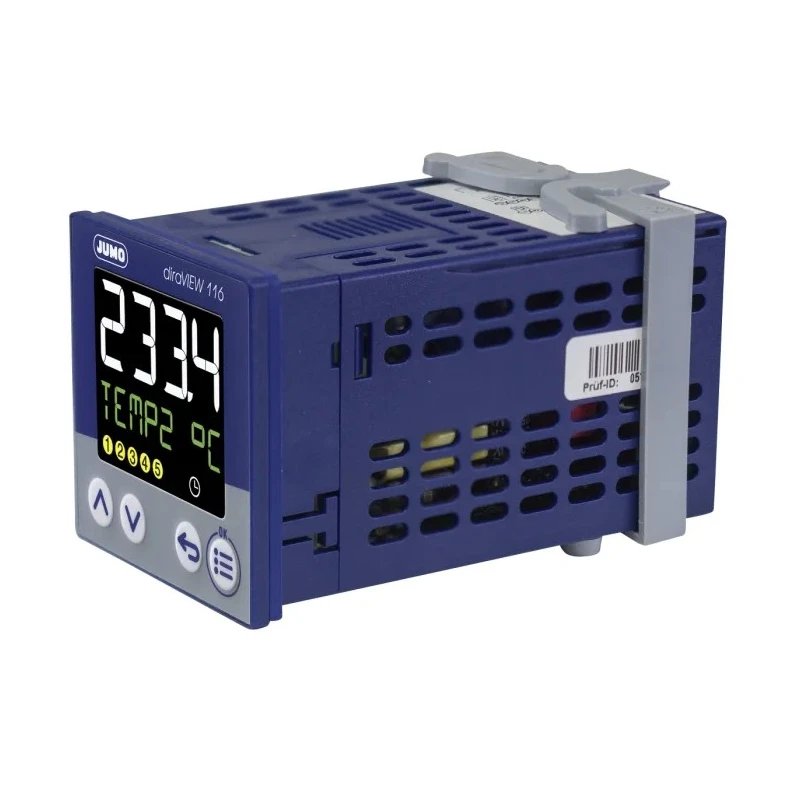

Jumo diraVIEW Panel Digital Indicator with 1 Input, 30V Supply, LCD Display, Panel Mount 701511/8-0000-23/000

Jumo 701511/8-0000-23/000 Panel Digital Indicator is a high-precision industrial instrument designed for versatile process monitoring and control applications. It features a single analogue input and operates with a maximum supply voltage of 30V, making it suitable for various process control environments.

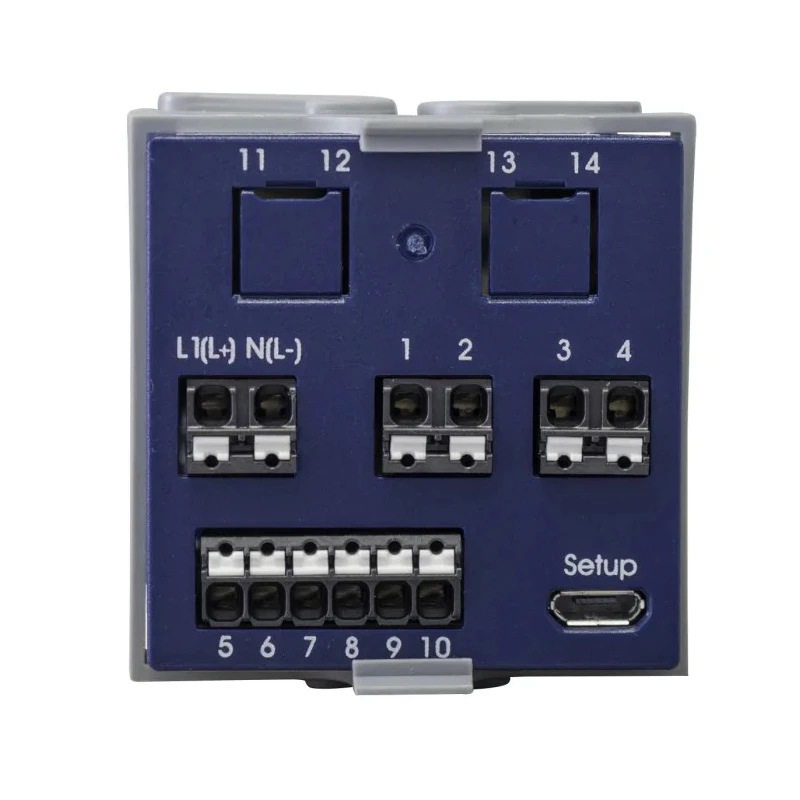

The device incorporates an LCD display, providing clear digital readouts of measured values such as temperature, pressure, or other analog process variables. Its robust spring cage terminal design allows for fast and secure wiring using PUSH IN technology.

Engineered for durability, the indicator supports operation within a temperature range of -10°C to 55°C and carries IP20 and IP65 ratings, ensuring protection from dust and water ingress in demanding industrial environments.

The panel-mount unit measures 48mm in width, enabling installation in standard control panels. It supports advanced functions including minimum/maximum value memory, hold, tare for weighing applications, and customer-specific linearization using up to 40 value pairs or polynomial functions. Optional features such as timer functions and limit value monitoring enhance its adaptability across applications.

Communication capabilities include Modbus RTU as a slave device over RS485, allowing integration into modern automation systems. Additional analog and digital inputs can be added through the RS485 interface if required.

Manufactured in Germany, the Jumo diraVIEW series delivers industrial-grade quality and precision reliability. Typical applications encompass industrial, laboratory, HVAC, manufacturing, water treatment, and agricultural process control scenarios requiring accurate and dependable measurement indications.

Equipped with an LCD display for clear digital readouts. Supports Modbus RTU communication via RS485 interface. Features spring cage terminals for secure wiring. Operates within -10°C to 55°C ambient temperature range. IP20 and IP65 protection ratings ensure suitability for harsh environments.

Includes advanced functions such as min/max memory and tare. Compact 48mm panel mounting width for easy installation. Optional analog output and extended inputs via RS485 expand functionality. Built with high-quality German engineering standards.

Ideal for temperature, pressure, and process variable display in various industries. Explore the unmatched precision and robust build of Jumo diraVIEW Digital Indicators in EnvMart’s industrial control devices category for enhanced process measurement solutions.
