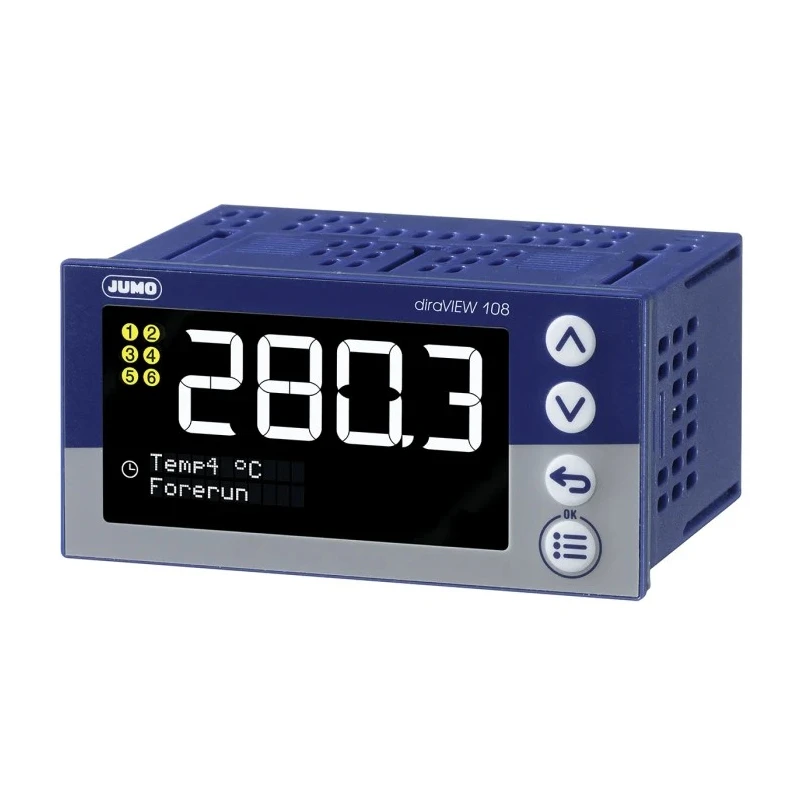

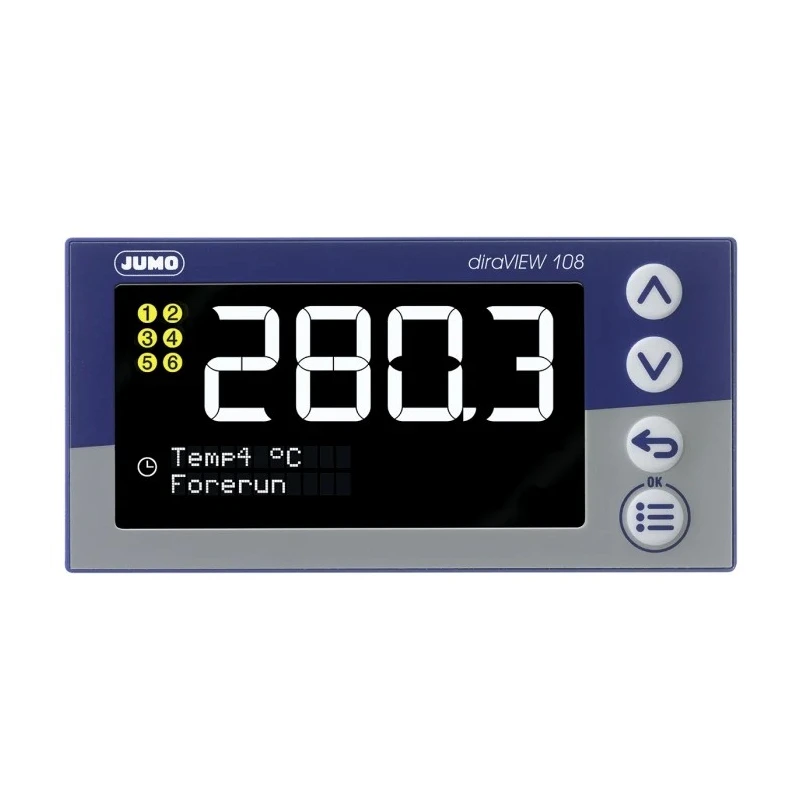

Jumo diraVIEW DIN Rail Panel Digital Indicator 1 Input 240V 701513/8-0000-23/000

Free Delivery in India | Lowest Global Shipping Charges

Jumo diraVIEW DIN Rail Panel Digital Indicator 1 Input 240V 701513/8-0000-23/000

Name: Jumo diraVIEW DIN Rail Panel Digital Indicator 1 Input 240V 701513/8-0000-23/000
Brand: JUMO
SKU: 157155
Price: 482.86 USD
Availability: InStock



Category Digital Indicator Brand JUMO Condition New

Specifications

Country of Origin	Germany
Display Type	LCD
Brand	Jumo
Model	701513/8-0000-23/000
IP Rating	IP20, IP65
Width	48mm
Mount Type	DIN Rail, Panel
Number of inputs	1
Series	diraVIEW
Input Type	Analogue
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-10°C
Terminal type	Spring Cage Terminal
Standards/Approvals	cRUus
Maximum Supply Voltage	240V
Digital Comms	RS485 Modbus RTU
Jumo di 08 LED Process Indicator, 48mm x 96mmBrand	Jumo

Key Features

Features one analog input for accurate process variable display.
Operates reliably between -10°C and 55°C ambient temperatures.
Equipped with a clear LCD display and RS485 Modbus RTU communication interface.
Includes functions such as min/max memory, tare for weighing, timers, and limit value monitoring.
Offers optional math, logic, and customer-specific linearization capabilities.

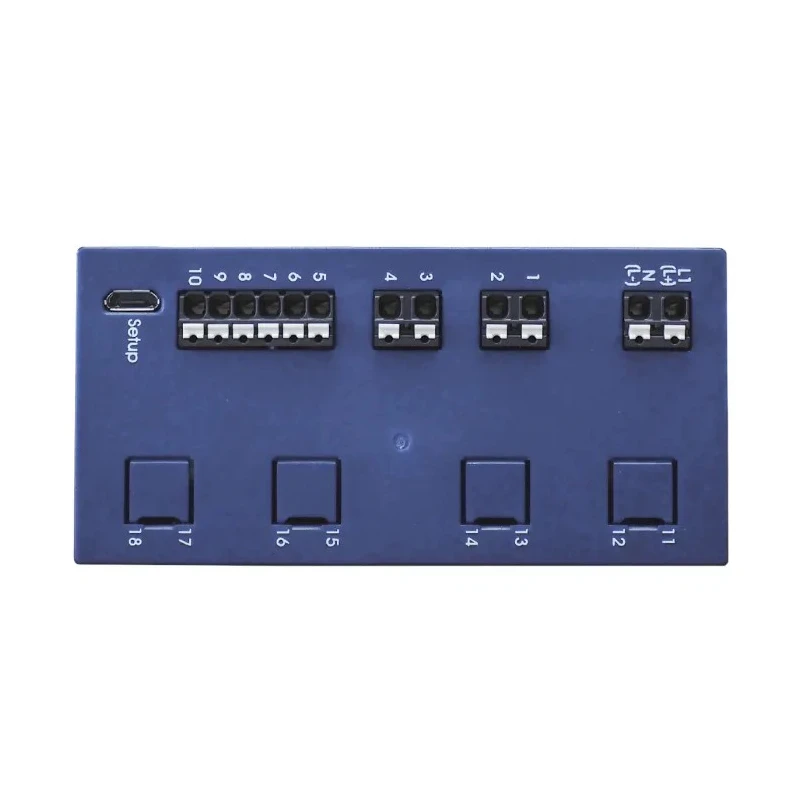

Fast wiring enabled by PUSH IN technology and spring cage terminal type.
IP20 and IP65 rated protection for use in diverse industrial environments.
Designed and manufactured in Germany ensuring high quality and compliance.

Product Description

Jumo 701513/8-0000-23/000 diraVIEW is a DIN rail and panel mount digital indicator designed for precise and reliable industrial process control applications requiring a single analog input. Operating within an ambient temperature range of -10°C to 55°C, this device features a high-contrast LCD display coupled with RS485 Modbus RTU digital communication for seamless integration into automation systems.

Its spring cage terminal type combined with PUSH IN wiring technology simplifies installation, reducing setup time and ensuring secure connections. The instrument supports multiple user functions including min/max value memory, hold, tare for weighing, timer functions, and four limit value monitors, enabling versatile application scenarios.

Customer-specific linearization with 40 value pairs or polynomials, as well as optional math and logic functions, allow customization tailored to specific process requirements. The sturdy design meets IP20 and IP65 protection standards, suitable for harsh industrial environments.

Originating from Germany, the Jumo diraVIEW indicator is engineered for demanding tasks such as displaying temperature, pressure, and other analogue process variables. This device is well-suited for industries including manufacturing, HVAC, chemical processing, and any application requiring precise measurement and control.

One analog input supporting various sensors and actuators. Wide operating temperature range from -10°C to 55°C ensures reliability. Robust LCD display visible in diverse lighting conditions. Advanced communication via RS485 Modbus RTU for network integration.

Flexible mounting options: DIN rail and panel mountable. Enhanced user functions including taring, timers, and limit monitoring. Optional analog output and digital inputs expandable via RS485 interface. Fast, secure wiring with PUSH IN terminals.

IP20 and IP65 rated for protection against dust and water ingress. Made in Germany assuring premium quality and compliance.

The Jumo diraVIEW DIN Rail Panel Digital Indicator forms a critical component in configurable process control systems and measurement instrumentation solutions. For further product exploration, consider browsing the EnvMart catalog for related Jumo instruments and Digital Indicators suitable for industrial automation and process measurement.
