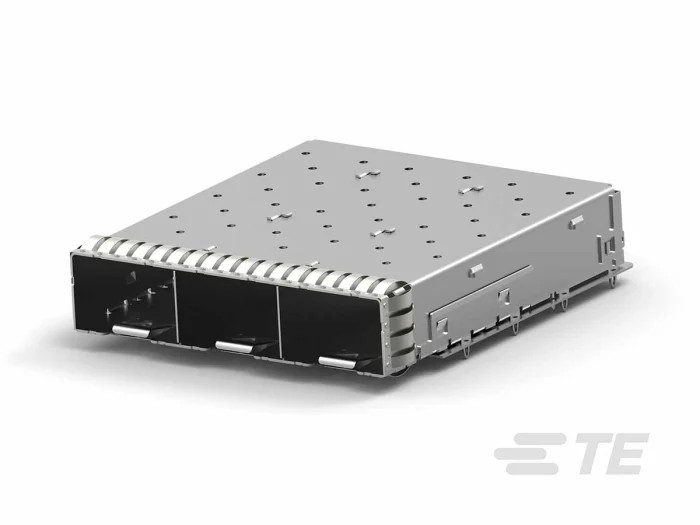

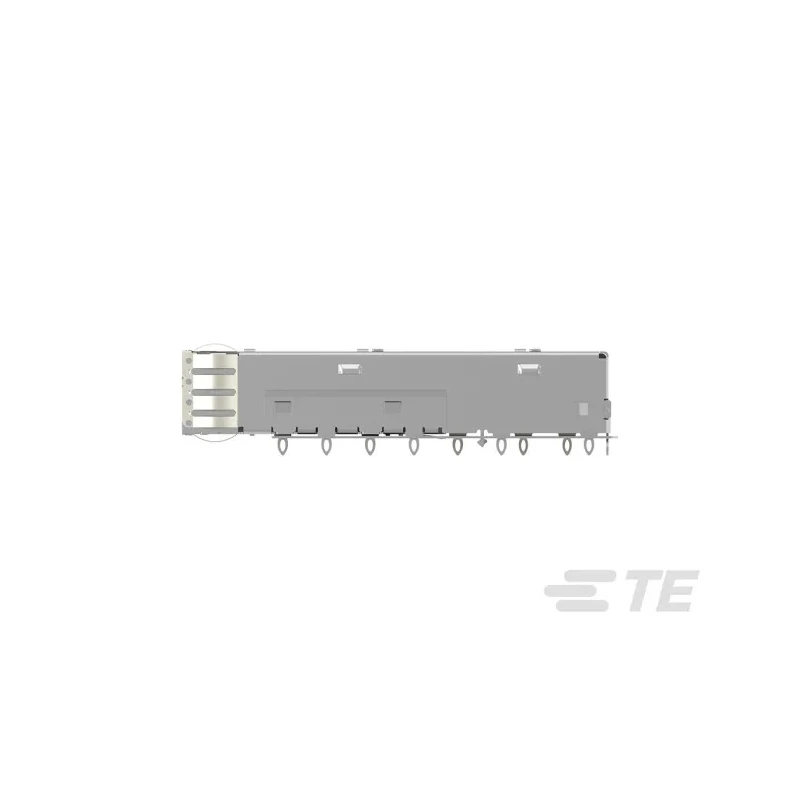

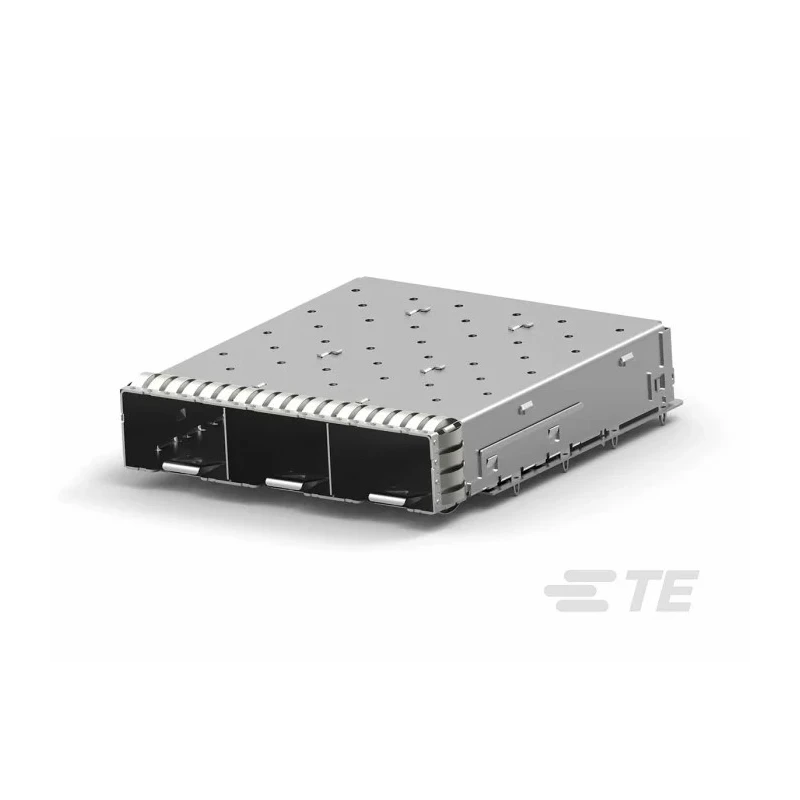

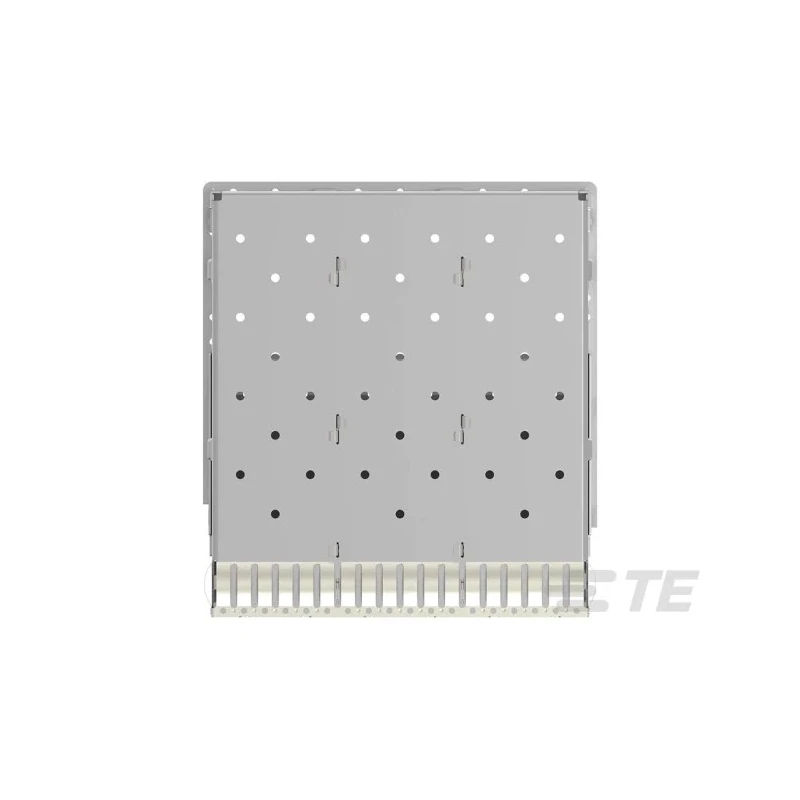

TE Connectivity ZSFP+ Cage Connector Accessory Up to 28 Gbps NRZ and 56 Gbps PAM-4 Data Rates 2349050-1

TE Connectivity 2349050-1 is a ZSFP+ Cage connector accessory engineered for high-performance data transmission applications. Ideal for Ethernet and Fibre Channel connectivity, it supports data rates up to 28 Gbps NRZ and 56 Gbps PAM-4, making it suitable for modern networking and telecom systems.

The cage utilizes a surface-mount connector design optimized for single high 1xN cages, facilitating easy and compact PCB placement. Its press-fit 1xN cages and stacked assembly options accommodate various port configurations from 1x1 up to 1x6 single and 2x1 to 2x12 stacked assemblies, allowing system designers flexibility in high-density applications.

TE Connectivity’s cage features a coupled, narrow-edged, blanked- and formed-contact beam geometry combined with insert moulding technology, delivering superior mechanical robustness and signal integrity. This design ensures stable electrical performance even in demanding environments.

Backwards-compatibility with standard SFP+ connector interfaces and footprint compatibility guarantees seamless integration in existing designs. The accessory offers options for elastomeric gaskets or spring fingers that provide effective EMI containment, essential in sensitive electronics applications.

The single high cages support belly-to-belly configurations for increased density and PCB area savings. Additional options include heat sinks, LEDs, plating variants, and light pipe configurations to tailor fit various industrial or commercial requirements.

Manufactured in China, this TE Connectivity ZSFP+ Cage connector accessory is designed for use in industrial electronics, network infrastructure, telecom equipment, and other high-speed data communication systems.

Compatible with Ethernet and 16 Gbps Fibre Channel interfaces. Data rates up to 28 Gbps NRZ and 56 Gbps PAM-4 supported. Surface-mount connector design for single high 1xN cages. Press-fit 1xN cages and stacked assemblies ensure flexible configurations.

Superior signal integrity through formed-contact beam geometry. Backwards-compatible with SFP+ footprint and mating interfaces. Options for elastomeric gasket or spring finger EMI containment. Supports belly-to-belly applications for high density and PCB space saving.
