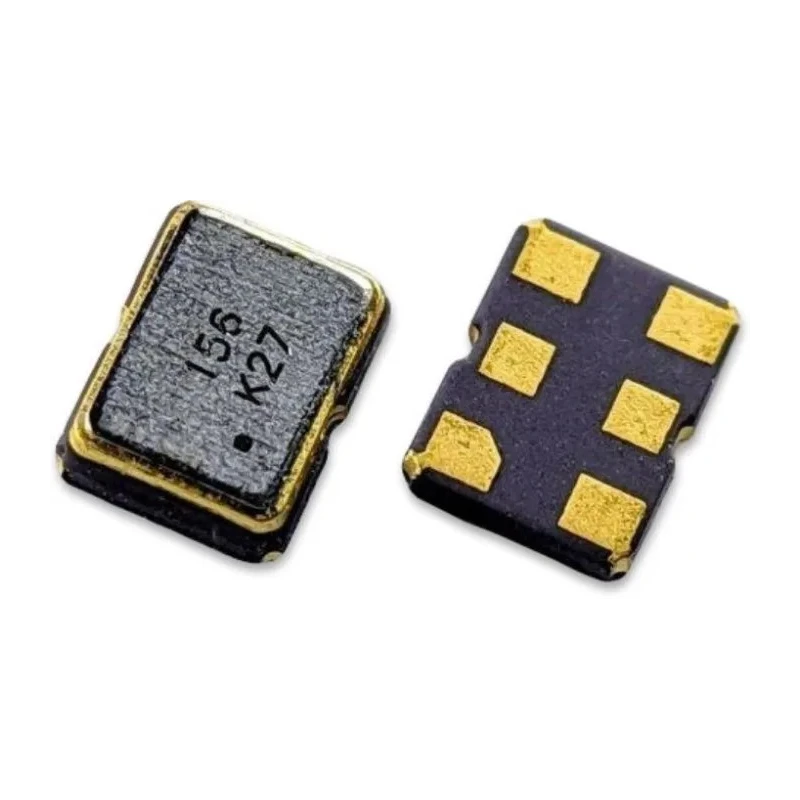

Abracon 125MHz XO Crystal Oscillator LVDS Surface Mount ±30 ppm -40°C to +85°C AK2DAF1-125.00000T

The Abracon AK2DAF1-125.00000T is a high-precision 125MHz XO crystal oscillator featuring a low-voltage differential signaling (LVDS) output in a compact surface mount package. It offers superior frequency stability of ±30 ppm over a temperature range from -40°C to +85°C, making it suitable for demanding industrial and commercial electronics applications.

Its supply voltage ranges from 1.71V to 3.63V, allowing compatibility with a variety of low-voltage systems while maintaining ultra-low rms jitter and lowest in-class power consumption. The oscillator uses 3rd overtone quartz crystal technology, part of Abracon's AK2 series, optimized for reliable clock generation in optical transceivers, networking devices, and server platforms.

Measuring just 2.5mm in length, 2mm in width, and 1mm in height, this miniature module fits tightly packed circuit boards. It is supplied in tape and reel packaging to facilitate automated pick-and-place manufacturing processes. The product complies with RoHS and RoHS II directives, ensuring it meets environmental and safety standards for electronics manufacturing.

Key features include ultra-low rms jitter, multiple supply voltage options, and an output enable function (active high by default). These characteristics ensure consistent and reliable timing performance in demanding high-speed digital systems.

Industrial use cases include applications in telecommunications, data communication equipment, high-speed networking, and server infrastructure requiring stable and precise clock signals. The Abracon AK2DAF1-125.00000T crystal oscillator thus addresses critical timing needs in advanced electronic systems.

Explore EnvMart's extensive range of Crystal Oscillators and related electronic components to find complementary products for your industrial and manufacturing requirements. This XO oscillator operates between 1.71V and 3.63V supply voltage.

Compact dimensions of 2.5mm length, 2mm width, and 1mm height support versatile PCB mounting. Designed for ultra-low rms jitter and low power consumption applications. Suitable for optical transceivers, networking, and server systems.

Packaged tape & reel for optimized automated assembly. RoHS and RoHS II compliant ensuring environmental safety. Series AK2 offers stable frequency output utilizing 3rd overtone quartz crystal technology.
