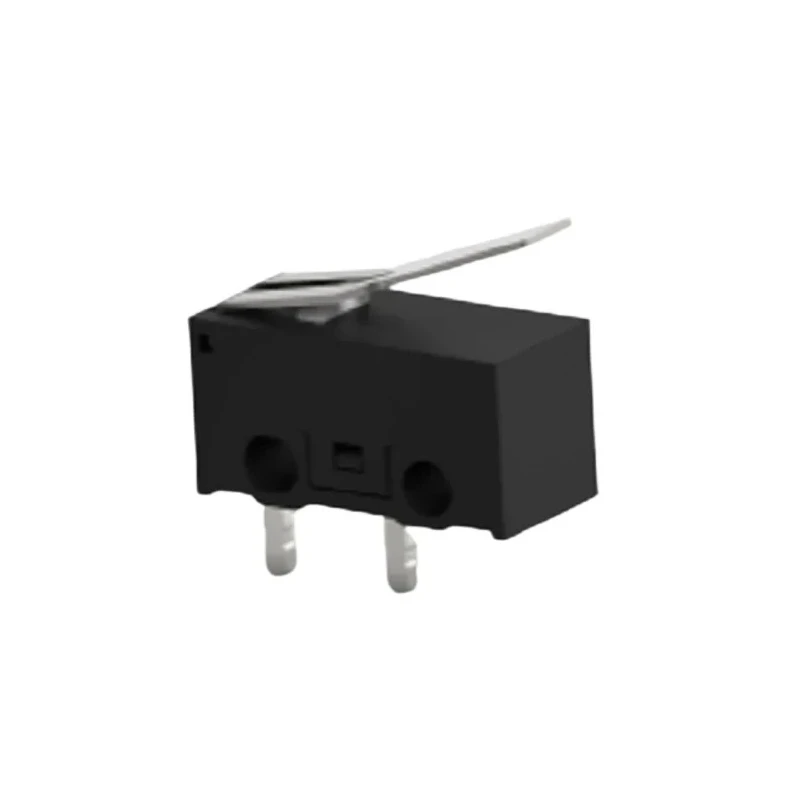

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 3A, SPST SAJ13XXBL0N88SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXBL0N88SNOPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- The switch features a lever actuator type for precise mechanical to electrical conversion.
- Designed for PCB mounting with reliable PCB terminal connections.
- Operates with a contact current of 3 amperes suitable for moderate electrical loads.
- Single Pole Single Throw (SPST) contact arrangement for simple switching applications.
- Requires an operating force of 0.75 Newtons for actuation.
- Operates reliably within temperature range -25°C to 75°C.
- Miniature micro switch type ensures compact and space-saving use.
- Mechanical life expectancy of 500,000 cycles ensuring extended durability.
Product Description
TE Connectivity SAJ13XXBL0N88SNOPTQ is a high-reliability Lever Snap Action Micro Switch designed for converting mechanical actions into electrical switching signals. This miniature micro switch, featuring a lever actuator and PCB terminal type, is rated to carry 3 amperes of current with an SPST (Single Pole Single Throw) contact configuration.
Its compact design and dimensional compatibility with other popular brands make it highly suitable for integration into existing PCB designs in home appliances, consumer electronics, factory automation, and various industrial and domestic applications.
The switch requires an operational force of 0.75N, allowing precise actuation, and it reliably operates in environmental temperatures ranging from -25°C to 75°C. It is engineered for a long mechanical life of 500,000 cycles, ensuring excellent durability and consistent performance.
The PCB terminal models offer resistance to flux, enhancing reliability during soldering and assembly processes. This product is RoHS compliant, adhering to environmental safety standards.
The switch features a lever actuator type for precise mechanical to electrical conversion. Designed for PCB mounting with reliable PCB terminal connections. Operates with a contact current of 3 amperes suitable for moderate electrical loads.
Single Pole Single Throw (SPST) contact arrangement for simple switching applications. Requires an operating force of 0.75 Newtons for actuation. Operates reliably within temperature range -25°C to 75°C. Miniature micro switch type ensures compact and space-saving use.
Mechanical life expectancy of 500,000 cycles ensuring extended durability. Complies with RoHS standards indicating compliance with hazardous substances restrictions. Manufactured in China under the SAJ series by TE Connectivity.
This micro switch is ideal for use in industrial automation systems, consumer electronics, and other applications requiring dependable, miniature mechanical switching components. Browse more quality TE Connectivity Micro Switches and related components on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
It features a Single Pole Single Throw (SPST) contact configuration.
This model can handle a contact current of up to 3 amperes.
It uses a lever actuator type for mechanical to electrical conversion.
The switch requires an operating force of 0.75 Newtons for actuation.
The mechanical life expectancy of this switch is 500,000 cycles.
The minimum operating temperature for this micro switch is -25°C.
It is designed with PCB terminal connections for easy mounting.
Yes, it is RoHS compliant, adhering to environmental safety standards.
This switch is suitable for use in home appliances, consumer electronics, and factory automation applications.
This model is classified as a miniature micro switch, ensuring compact design.
It is manufactured in China under the SAJ series by TE Connectivity.
