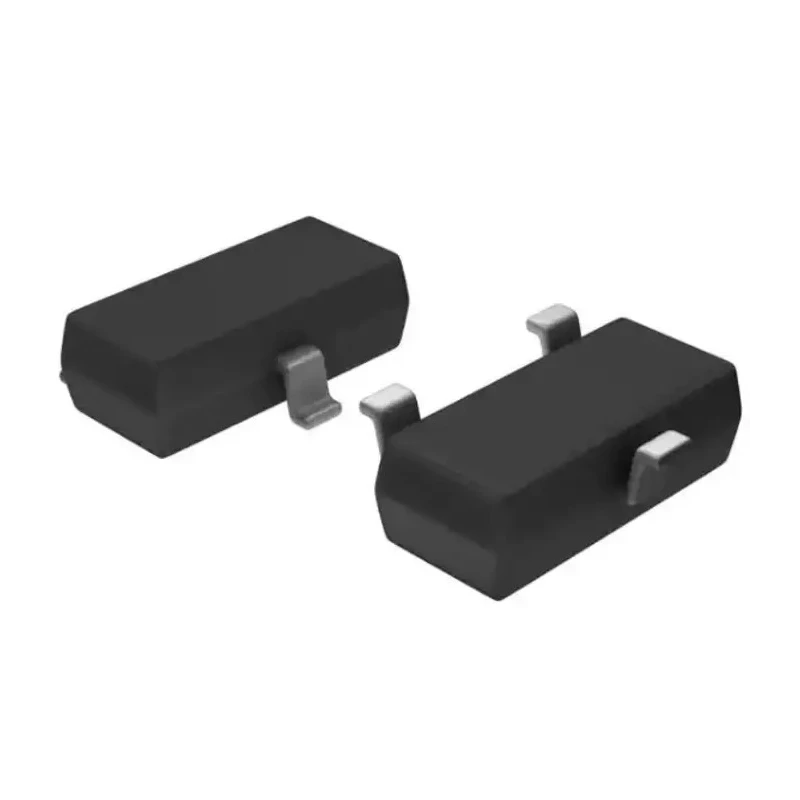

STMicroelectronics Uni-Directional TVS Diode Array SOT-23-3L, 3-Pin, 6.1V Breakdown Voltage ESDA6V1LY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3mm |
| Length | 3.04mm |
| Model | ESDA6V1LY |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | ESDA6V1LY |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23-3L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 16V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.1V |
| Maximum Reverse Leakage Current | 20μA |
Key Features
- Uni-directional design supports effective transient voltage suppression.
- Minimum breakdown voltage is 6.1 volts for reliable operation.
- Compact surface mount SOT-23-3L package with 3 pins for space-saving designs.
- Low maximum reverse leakage current of 20 microamps to reduce power losses.
- High clamping voltage of 16 volts to protect circuits from surges.
- Wide operating temperature range from -55°C to 150°C for harsh environments.
- IEC and RoHS compliant ensuring quality and environmental safety.
- Automotive AEC-Q101 qualified for automotive-grade reliability.
Product Description
STMicroelectronics ESDA6V1LY is a uni-directional TVS diode array designed to protect electronic circuits from electrostatic discharge (ESD) and transient voltage spikes. Packaged in a compact SOT-23-3L surface mount form factor with 3 pins, it is ideal for applications that require board space savings and reduced line capacitance.
The diode array offers a minimum breakdown voltage of 6.1 volts and clamps voltage spikes up to 16 volts, thus safeguarding sensitive components against damage caused by voltage transients. It features a low maximum reverse leakage current of 20 microamps which minimizes power consumption during normal operation.
Rated for a wide operating temperature range from -55 degrees Celsius to +150 degrees Celsius, this device is suitable for use in industrial, automotive, and consumer electronics where reliability under varied environmental conditions is critical.
Certified to IEC standards and compliant with RoHS, the ESDA6V1LY also meets the automotive AEC-Q101 qualification, making it suitable for automotive electronic systems requiring high reliability.
Its robust ESD protection capability up to 25 kV and peak pulse power rating of 300 watts (8/20 µs) transient pulse enhances circuit durability against electrostatic discharges and surge events.
Uni-directional transient voltage suppression for enhanced circuit protection. Compact 3-pin SOT-23-3L surface mount package suitable for high-density boards. Wide operating temperature range ensures performance in harsh industrial and automotive environments.
Low leakage current reduces power waste and increases energy efficiency. High peak pulse power rating withstands high-energy transients. IEC and RoHS compliant for safety and environmental standards. Automotive AEC-Q101 certification for stringent automotive quality requirements.
Suits industrial, automotive, consumer electronics, and telecommunications applications.
This diode array is an excellent choice for engineers and designers seeking a reliable, space-efficient protection component to enhance the resilience of their electronic systems against electrostatic and transient voltage damage. Explore more products from STMicroelectronics and other semiconductor components with EnvMart’s extensive catalog.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6.1 volts, ensuring reliable operation for transient voltage suppression.
The clamping voltage for the ESDA6V1LY is 16 volts, which helps protect circuits from voltage spikes.
It features a low maximum reverse leakage current of 20 microamps, which reduces power losses during normal operation.
This model operates within a wide temperature range from -55°C to 150°C, making it suitable for harsh environments.
It comes in a compact SOT-23-3L surface mount package, which is designed for space-saving applications.
The ESDA6V1LY has 3 pins, facilitating easy integration into electronic circuits.
Yes, it is IEC and RoHS compliant, ensuring adherence to safety and environmental standards.
This unit is AEC-Q101 qualified, making it suitable for automotive applications that require high reliability.
The height of this diode array is 3 mm, contributing to its compact design.
It is suitable for industrial, automotive, consumer electronics, and telecommunications applications.
The ESDA6V1LY has a peak pulse power rating of 300 watts (8/20 µs), allowing it to withstand high-energy transients.
This model has a length of 3.04 mm and a width of 1.4 mm, making it suitable for high-density board designs.
