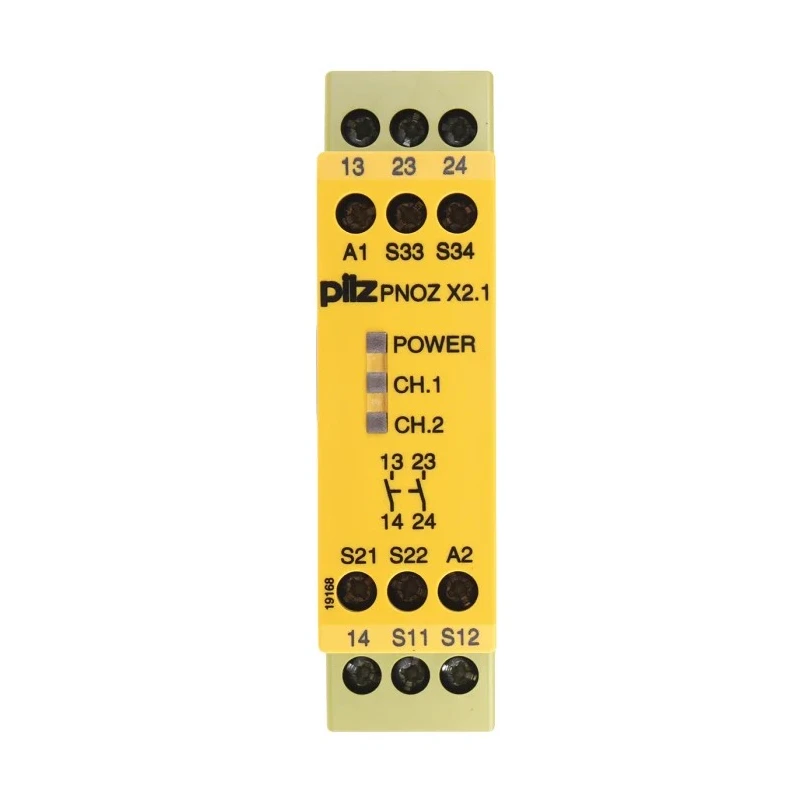

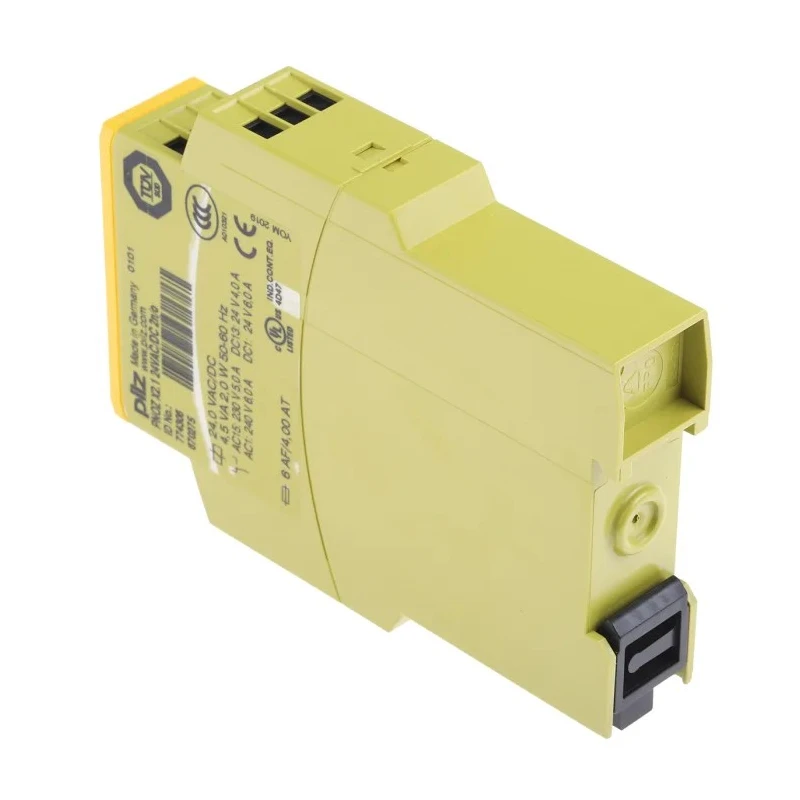

Pilz Safety Relay 24V ac/dc, 2 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount 774306

Pilz 774306 Safety Relay 24V ac/dc with 2 safety contacts and 1 auxiliary contact is engineered for industrial automation safety applications requiring precise control over safety circuits. It offers reliable performance with flexible reset modes and multiple connection options for emergency stop pushbuttons, safety gates, and reset buttons.

This relay series supports single or dual channel input operation, allowing control of multiple safety zones. Designed for DIN rail mounting, the device ensures durability and extended service life exceeding many competitors. Safety functions remain effective even when a component fails due to its redundant self-monitoring circuit and built-in electronic fuse.

Operational safety is further enhanced by automatic testing of relay opening and closing in each on/off cycle, ensuring continuous compliance. PILZ safety relays adhere to strict standards such as EN 60204-1, EN ISO 13849-1, and IEC 61511 SIL 3, widely accepted in industrial, manufacturing, laboratory, and safety-critical environments.

This relay operates efficiently within -10°C to 55°C with a power consumption of 2W and offers screw terminal connections for secure wiring. Compact with a width of 22.5mm, length of 87mm, and height of 121mm, it fits in tight control cabinets and panels.

Typical industrial use cases include emergency stop buttons, safety curtains, machinery safety circuits, and control systems requiring high reliability. The device’s dual safety contacts and auxiliary contact provide robust safety loop integration.

Manufactured in France, this product combines rigorous European quality with global safety standards, making it an ideal choice for compliance-focused automation projects. Includes a LED indicator, automatic and manual reset methods, and an IP20 rating for indoor protected environments.

Equipped with LED indicators to monitor channel status and supply voltage. Supports automatic and manual reset methods for flexible operation. Durable DIN rail mounting for convenient installation and extended service life.

Redundant safety function ensures effective operation even in case of component failure. Electronic fuse and automatic relay testing guarantee operational safety. Suitable for emergency stop buttons and safety curtains applications.

Complies with multiple international safety standards including EN 60947-5-1 and IEC 61511 SIL 3. Designed to operate in a temperature range from -10°C to 55°C with IP20 protection rating. Compact dimensions: width 22.5mm, length 87mm, height 121mm.

Manufactured in France ensuring quality and reliability. Explore more Pilz Safety Relays and related industrial automation products on EnvMart for advanced safety solutions.
