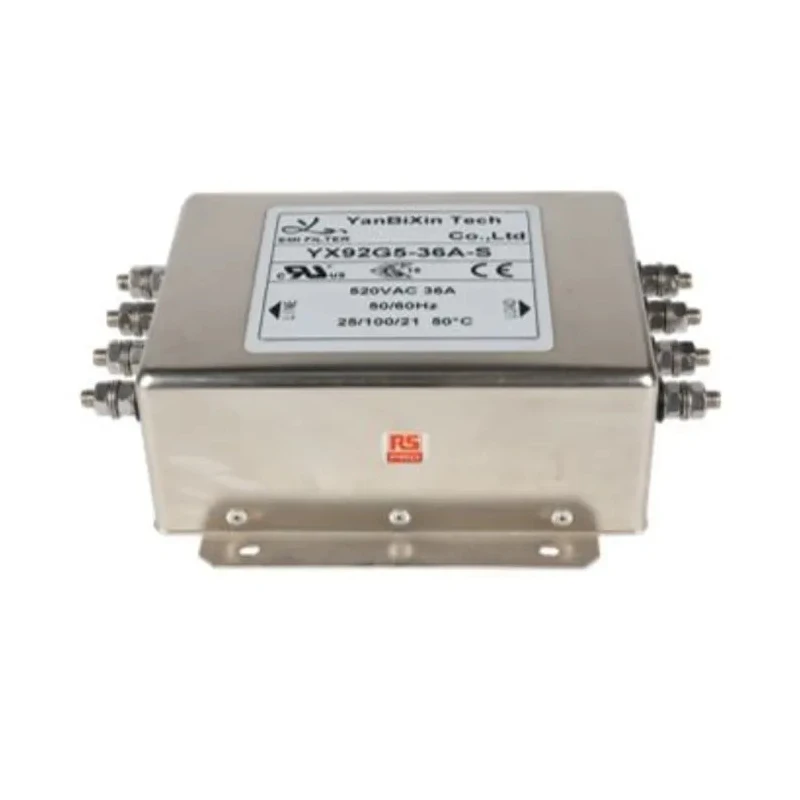

RS PRO 36 A 520V AC 50Hz, 60 Hz Chassis Mount Power Line Filter Screw Termination 3 Phase 237-8774

RS PRO 237-8774 Power Line Filter is engineered to provide robust EMI and RFI interference suppression for industrial and commercial electrical equipment. Designed for 3 phase power systems, it supports a maximum current of 36 amperes at 520 volts AC, operating efficiently at both 50Hz and 60Hz frequencies.

This chassis mount filter utilizes screw termination connections, ensuring a secure and stable installation in power line applications. It features two stages of filtering, incorporating an electrical capacitance of 1µF and an inductance of 0.6mH to effectively reduce conducted noise and transient voltage spikes caused by power disturbances or nearby lightning strikes.

Compact in size, measuring 150mm in length, 105mm in depth, and 60mm in height, the device easily integrates within various electrical assemblies. The filter maintains minimal leakage current at 7.1 milliamperes, thereby adhering to strict safety standards while operating within a temperature range of -25°C to 100°C, suitable for demanding environments.

Certified to meet recognized international standards including CSA C22.2 No.8, EN 60939, IEC, and UL1283, this RS PRO power line filter assures compliance with global safety and EMC requirements.

Commonly used in industrial machinery, medical equipment, and commercial electronic devices, it safeguards sensitive electronics against electromagnetic interference and transient disturbances, enhancing operational reliability and equipment longevity.

The filter's high current rating supports medium-sized and large power systems. Two-stage design provides superior noise attenuation to improve equipment performance. Suitable for use in industrial, medical, and commercial electrical applications.

Chassis mount and screw termination provide easy and secure installation. Meets multiple international safety and quality standards. Effective in environments with wide temperature variations. Compact size allows integration into tight equipment spaces.

Reduces risk of damage from power line transient spikes and radio frequency interference.

RS PRO is a trusted brand known for delivering high-quality electronic components that meet rigorous industry standards. This 237-8774 power line filter is ideal for engineers seeking reliable EMI filtering solutions for three-phase AC power systems.
